You can select different operation mode according to the different environment, for
example, to avoid the funk or humidity from toilet or kitchen into indoor side, select the
mode of "flow volume to indoor>flow volume to outdoor"; to avoid the abnormal smell from
the sickroom or the air with virus into the lobby, select the mode of "flow volume to
indoor<flow volume to outdoor".
6.12.3 Operation principle
a. Operation type: forced air inlet indoor positive pressure air release
supply air indoor minus pressure forced discharging air

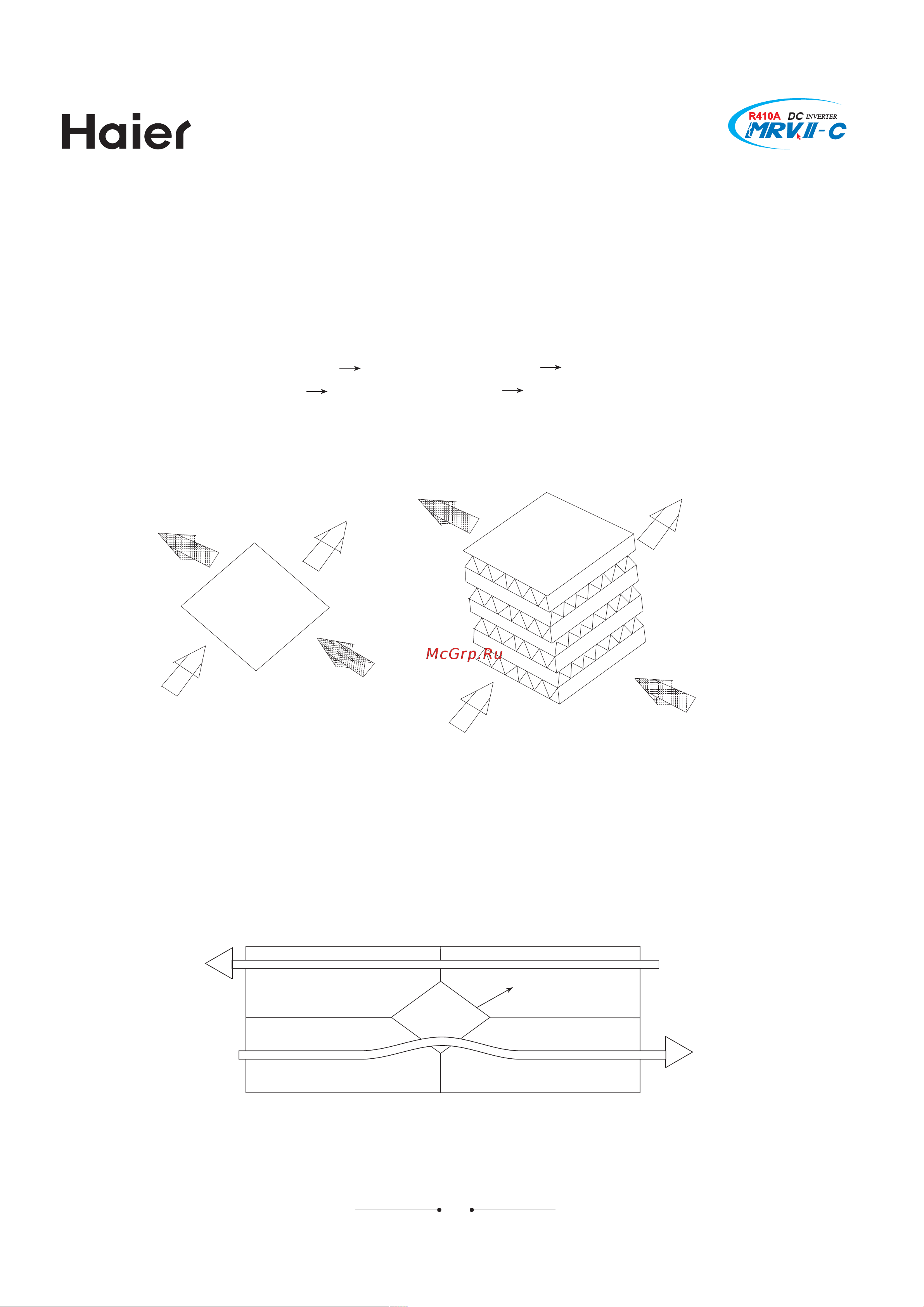

b. Heat exchange figure
c. Operation sketch map
When the heat exchange element is at the position as the figure, the unit is in heat reclaimed
ventilation state; when the heat exchange rotates, indoor return air will not pass the heat exchange
element, and flow to outside directly, that is bypass state.
Bypass state:
discharging air
indoor return air
supply air
outdoor air
heat exchange element
indoor discharging air
outdoor fresh air
outdoor fresh air
23
