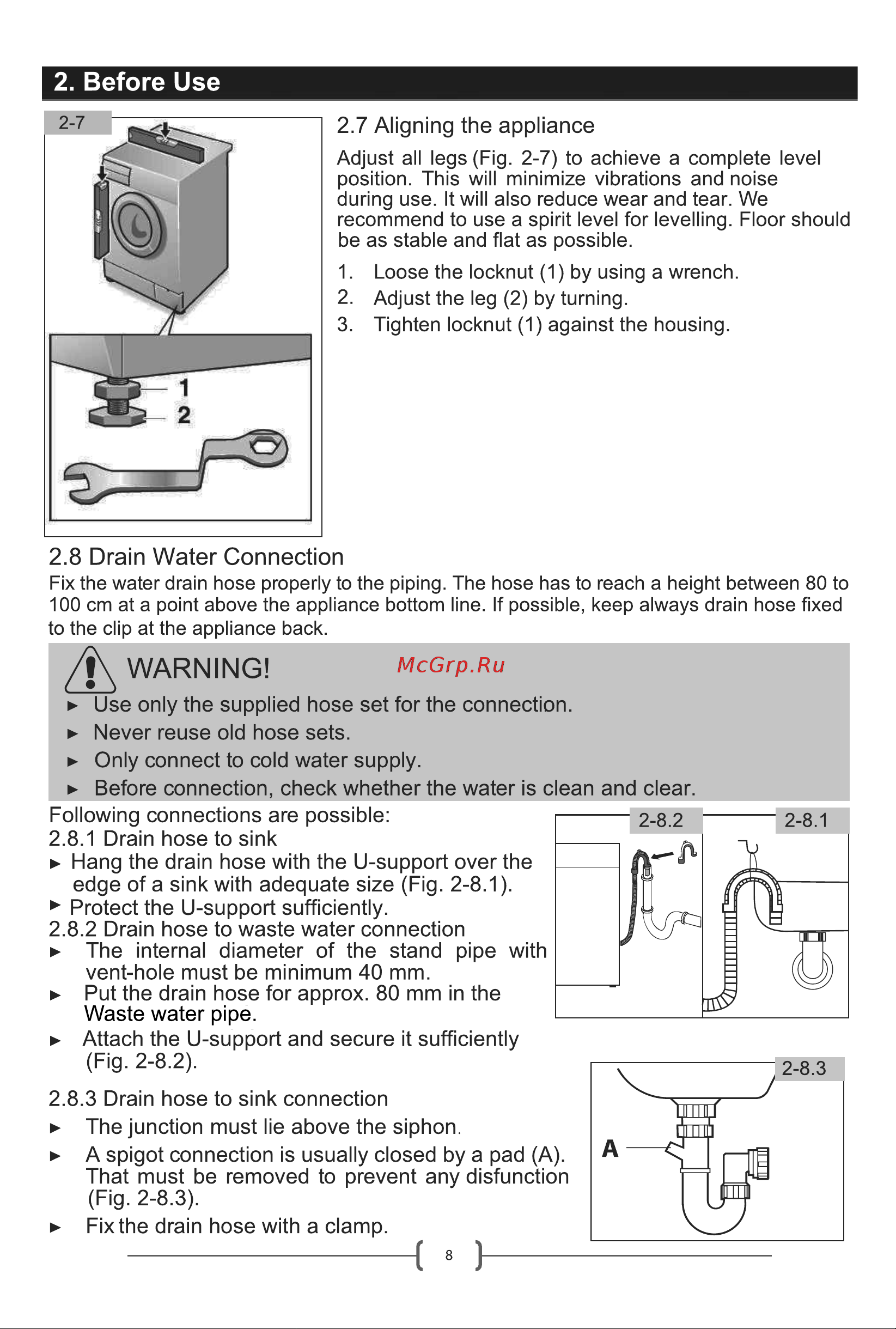

2 Before Use 2 7 Aligning the appliance Adjust all legs Fig 2 7 to achieve a complete level position This will minimize vibrations and noise during use It will also reduce wear and tear We recommend to use a spirit level for levelling Floor should be as stable and flat as possible 1 Loose the locknut 1 by using a wrench 2 Adjust the leg 2 by turning 3 Tighten locknut 1 against the housing 2 8 Drain Water Connection Fix the water drain hose properly to the piping The hose has to reach a height between 80 to 100 cm at a point above the appliance bottom line If possible keep always drain hose fixed to the clip at the appliance back WARNING Use only the supplied hose set for the connection Never reuse old hose sets Only connect to cold water supply Before connection check whether the water is clean and clear Following connections are possible 2 8 1 Drain hose to sink Hang the drain hose with the U support over the edge of a sink with adequate size Fig 2 8 1 Protect the U support sufficiently 2 8 2 Drain hose to waste water connection The internal diameter of the stand pipe with vent hole must be minimum 40 mm Put the drain hose for approx 80 mm in the Waste water pipe Attach the U support and secure it sufficiently Fig 2 8 2 2 8 3 Drain hose to sink connection The junction must lie above the siphon A spigot connection is usually closed by a pad A That must be removed to prevent any disfunction Fig 2 8 3 Fix the drain hose with a clamp 2 8 2 2 8 1
