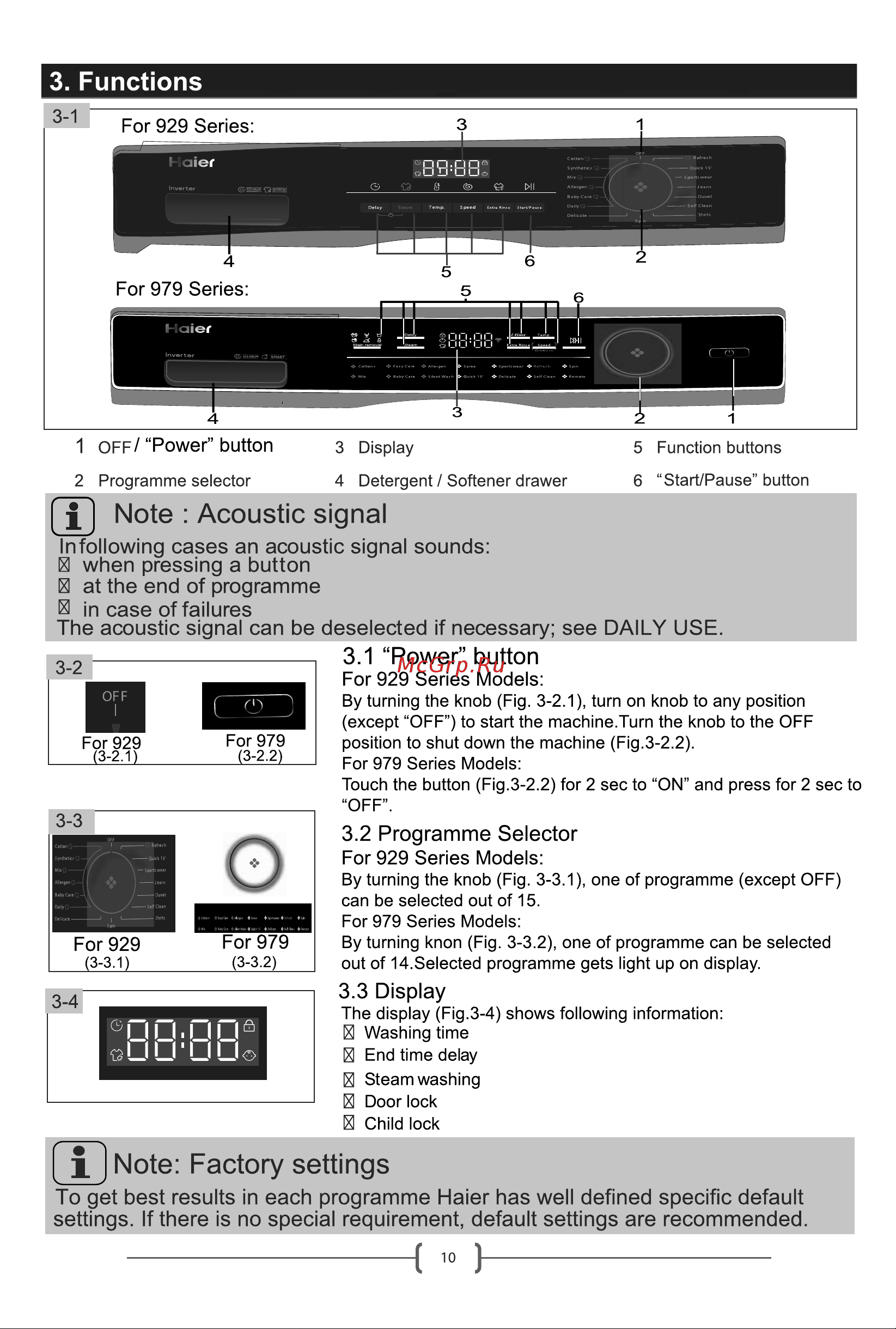

3 Functions 1 OFF Power button 3 Display 2 Programme selector 4 Detergent Softener drawer 6 Start Pause button 5 Function buttons 31 Note Acoustic signal Infollowing cases an acoustic signal sounds K when pressing a button K at the end of programme in case of failures The acoustic signal can be deselected if necessary see DAILY USE 3 1 Power button 3 2 For 929 Series Models OFF I For 929 3 2 1 3 3 3 2 Programme Selector For 929 Series Models For 929 For 979 3 3 1 3 3 2 3 4 For 979 3 2 2 By turning the knob Fig 3 2 1 turn on knob to any position except OFF to start the machine Turn the knob to the OFF position to shut down the machine Fig 3 2 2 For 979 Series Models Touch the button Fig 3 2 2 for 2 sec to ON and press for 2 sec to OFF By turning the knob Fig 3 3 1 one of programme except OFF can be selected out of 15 For 979 Series Models By turning knon Fig 3 3 2 one of programme can be selected out of 14 Selected programme gets light up on display 3 3 Display The display Fig 3 4 shows following information Й Washing time Й End time delay И Steam washing И Door lock И Child lock 1J Note Factory settings To get best results in each programme Haier has well defined specific default settings If there is no special requirement default settings are recommended
