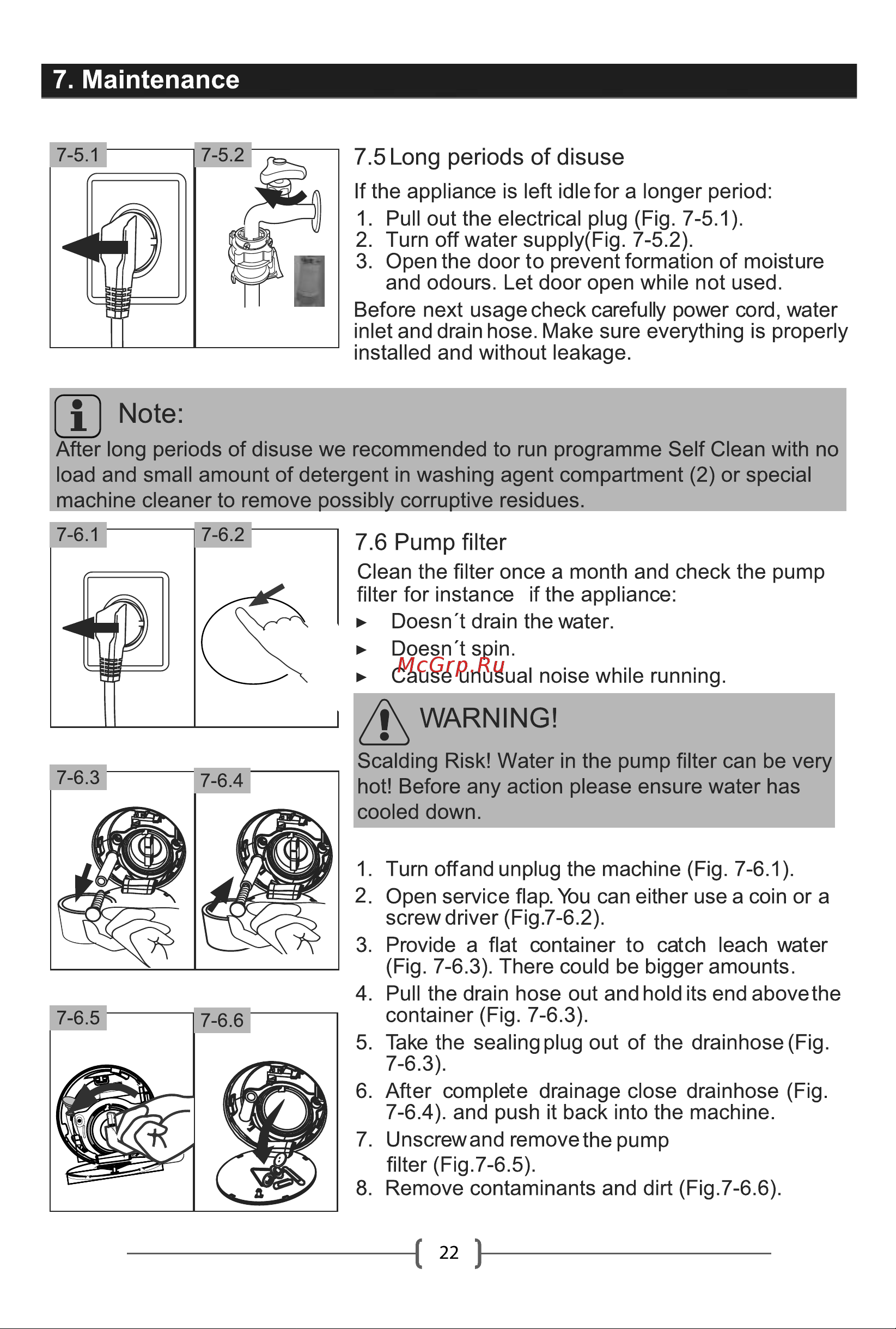

7 Maintenance 7 5 Long periods of disuse If the appliance is left idle for a longer period 1 Pull out the electrical plug Fig 7 5 1 2 Turn off water supply Fig 7 5 2 3 Open the door to prevent formation of moisture and odours Let door open while not used Before next usage check carefully power cord water inlet and drain hose Make sure everything is properly installed and without leakage 1 Note After long periods of disuse we recommended to run programme Self Clean with no load and small amount of detergent in washing agent compartment 2 or special machine cleaner to remove possibly corruptive residues 7 6 1 7 6 2 7 6 Pump filter Clean the filter once a month and check the pump filter for instance if the appliance Doesn t drain the water Doesn t spin Cause unusual noise while running WARNING Scalding Risk Water in the pump filter can be very hot Before any action please ensure water has cooled down 1 Turn offand unplug the machine Fig 7 6 1 2 Open service flap You can either use a coin or a screwdriver Fig 7 6 2 3 Provide a flat container to catch leach water Fig 7 6 3 There could be bigger amounts 4 Pull the drain hose out and hold its end abovethe container Fig 7 6 3 5 Take the sealing plug out of the drainhose Fig 7 6 3 6 After complete drainage close drainhose Fig 7 6 4 and push it back into the machine 7 Unscrewand removethepump filter Fig 7 6 5 8 Remove contaminants and dirt Fig 7 6 6 221
