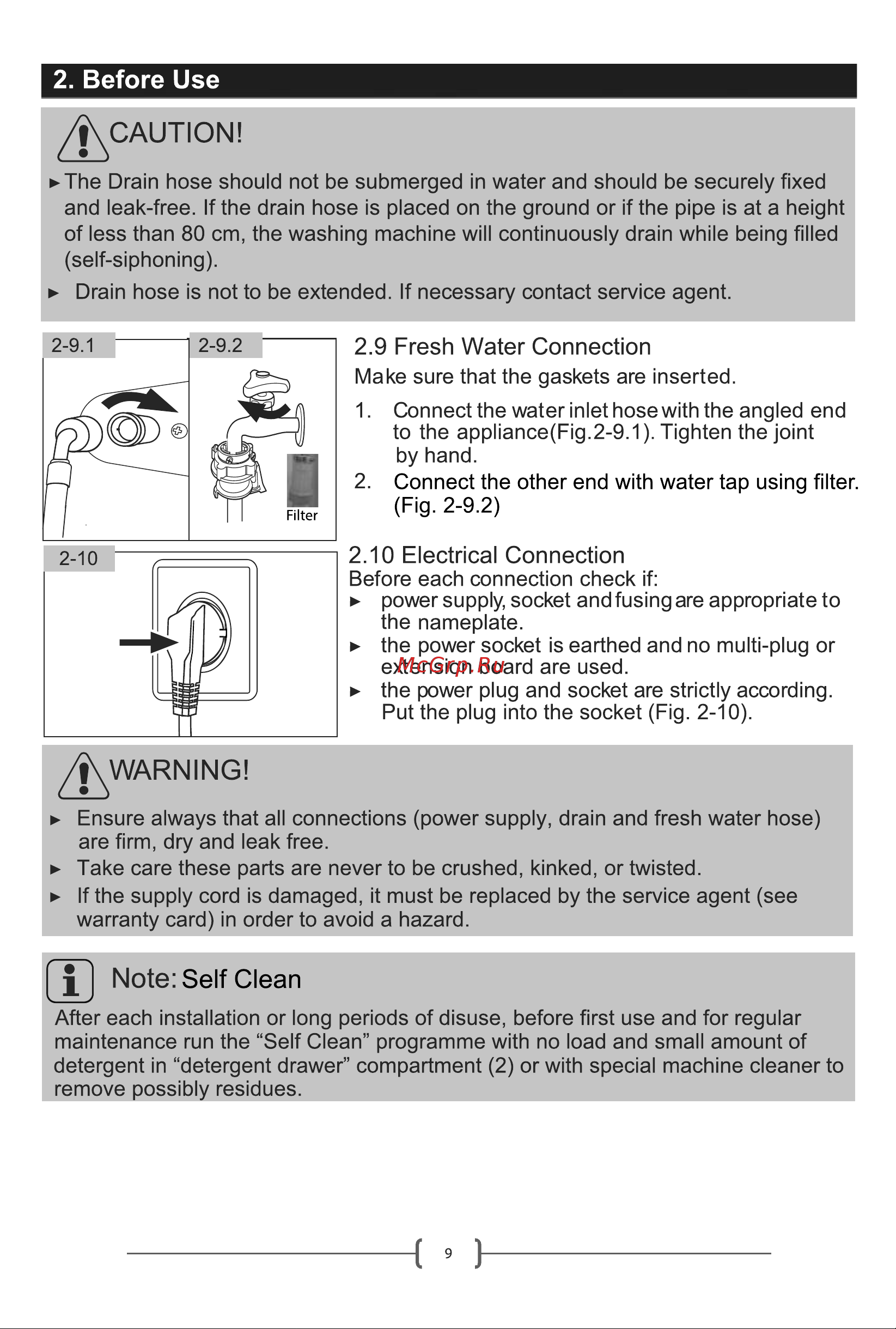

2 Before Use CAUTION The Drain hose should not be submerged in water and should be securely fixed and leak free If the drain hose is placed on the ground or if the pipe is at a height of less than 80 cm the washing machine will continuously drain while being filled self siphoning Drain hose is not to be extended If necessary contact service agent 2 9 Fresh Water Connection Make sure that the gaskets are inserted 1 Connect the water inlet hose with the angled end to the appliance Flg 2 9 1 Tighten the joint by hand 2 Connect the other end with water tap using filter Fig 2 9 2 2 10 Electrical Connection Before each connection check if power supply socket and fusing are appropriate to the nameplate the power socket is earthed and no multi plug or extension board are used the power plug and socket are strictly according Put the plug into the socket Fig 2 10 WARNING Ensure always that all connections power supply drain and fresh water hose are firm dry and leak free Take care these parts are never to be crushed kinked or twisted If the supply cord is damaged it must be replaced by the service agent see warranty card in order to avoid a hazard J Note Self Clean After each installation or long periods of disuse before first use and for regular maintenance run the Self Clean programme with no load and small amount of detergent in detergent drawer compartment 2 or with special machine cleaner to remove possibly residues
