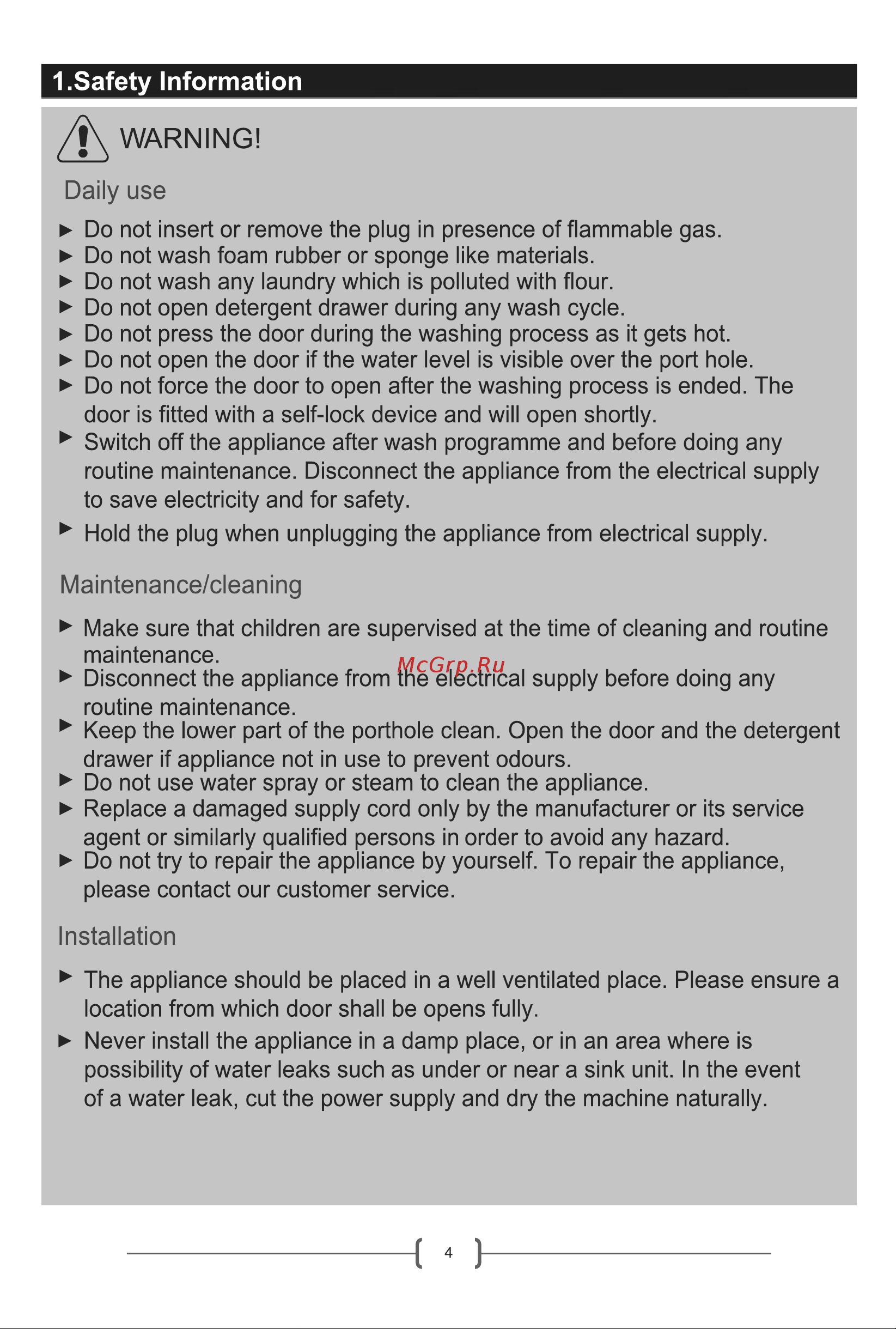

1 Safety Information j WARNING Daily use Do not insert or remove the plug in presence of flammable gas Do not wash foam rubber or sponge like materials Do not wash any laundry which is polluted with flour Do not open detergent drawer during any wash cycle Do not press the door during the washing process as it gets hot Do not open the door if the water level is visible over the port hole Do not force the door to open after the washing process is ended The door is fitted with a self lock device and will open shortly Switch off the appliance after wash programme and before doing any routine maintenance Disconnect the appliance from the electrical supply to save electricity and for safety Hold the plug when unplugging the appliance from electrical supply Maintenance cleaning Make sure that children are supervised at the time of cleaning and routine maintenance Disconnect the appliance from the electrical supply before doing any routine maintenance k Keep the lower part of the porthole clean Open the door and the detergent drawer if appliance not in use to prevent odours Do not use water spray or steam to clean the appliance Replace a damaged supply cord only by the manufacturer or its service agent or similarly qualified persons in order to avoid any hazard Do not try to repair the appliance by yourself To repair the appliance please contact our customer service Installation The appliance should be placed in a well ventilated place Please ensure a location from which door shall be opens fully Never install the appliance in a damp place or in an area where is possibility of water leaks such as under or near a sink unit In the event of a water leak cut the power supply and dry the machine naturally
