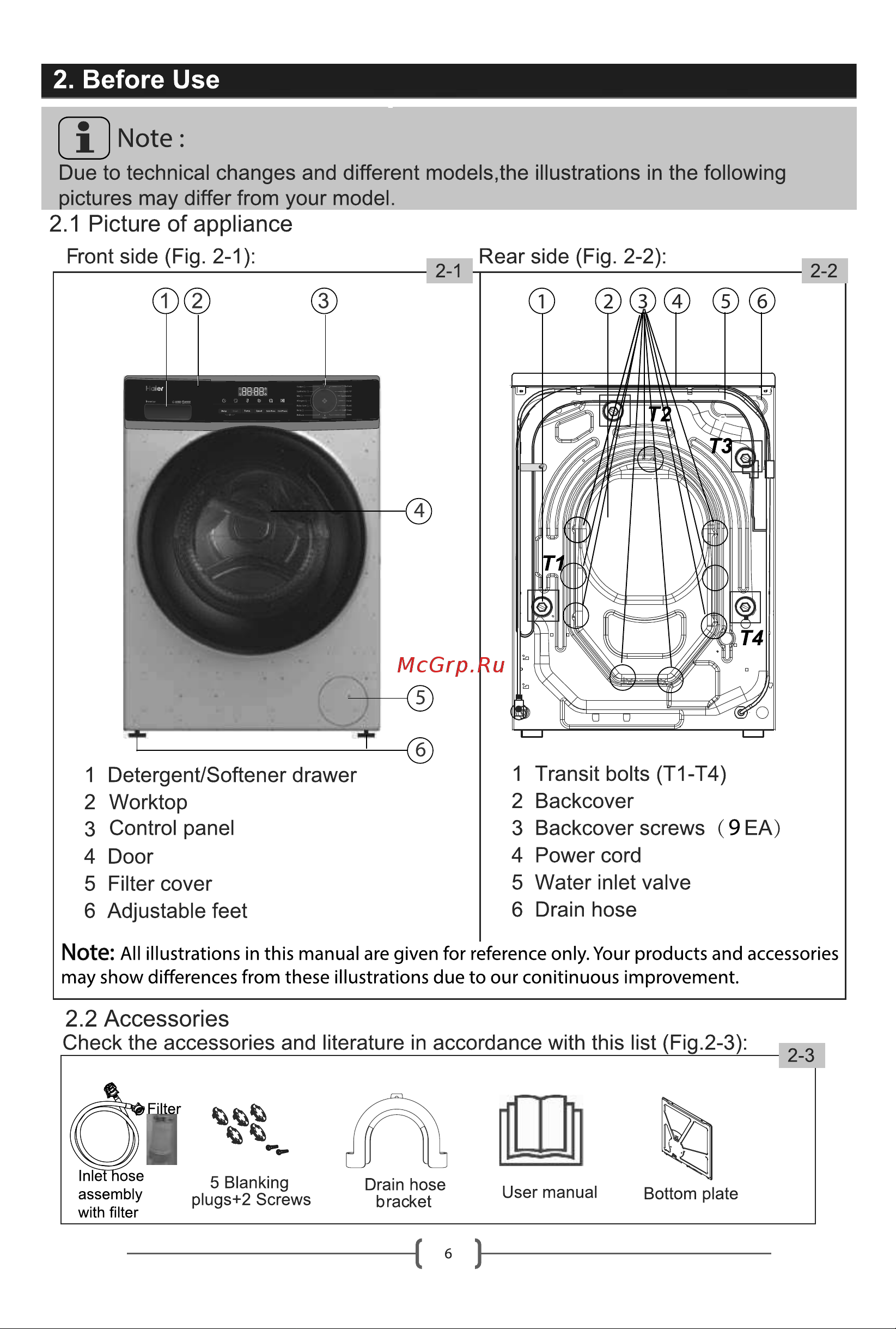

2 Before Use i Note Due to technical changes and different models the illustrations in the following pictures may differ from your model 2 1 Picture of appliance Front side Fig 2 1 1 Transit bolts T1 T4 2 Backcover 3 Backcover screws 9 EA 4 Power cord 5 Water inlet valve 6 Drain hose 1 Detergent Softener drawer 2 Worktop 3 Control panel 4 Door 5 Filter cover 6 Adjustable feet Note All illustrations in this manual are given for reference only Your products and accessories may show differences from these illustrations due to our conitinuous improvement 2 2 Accessories Check the accessories and literature in accordance with this list Fig 2 3 assembly with filter 5 Blanking plugs 2 Screws Drain hose bracket User manual Bottom plate
