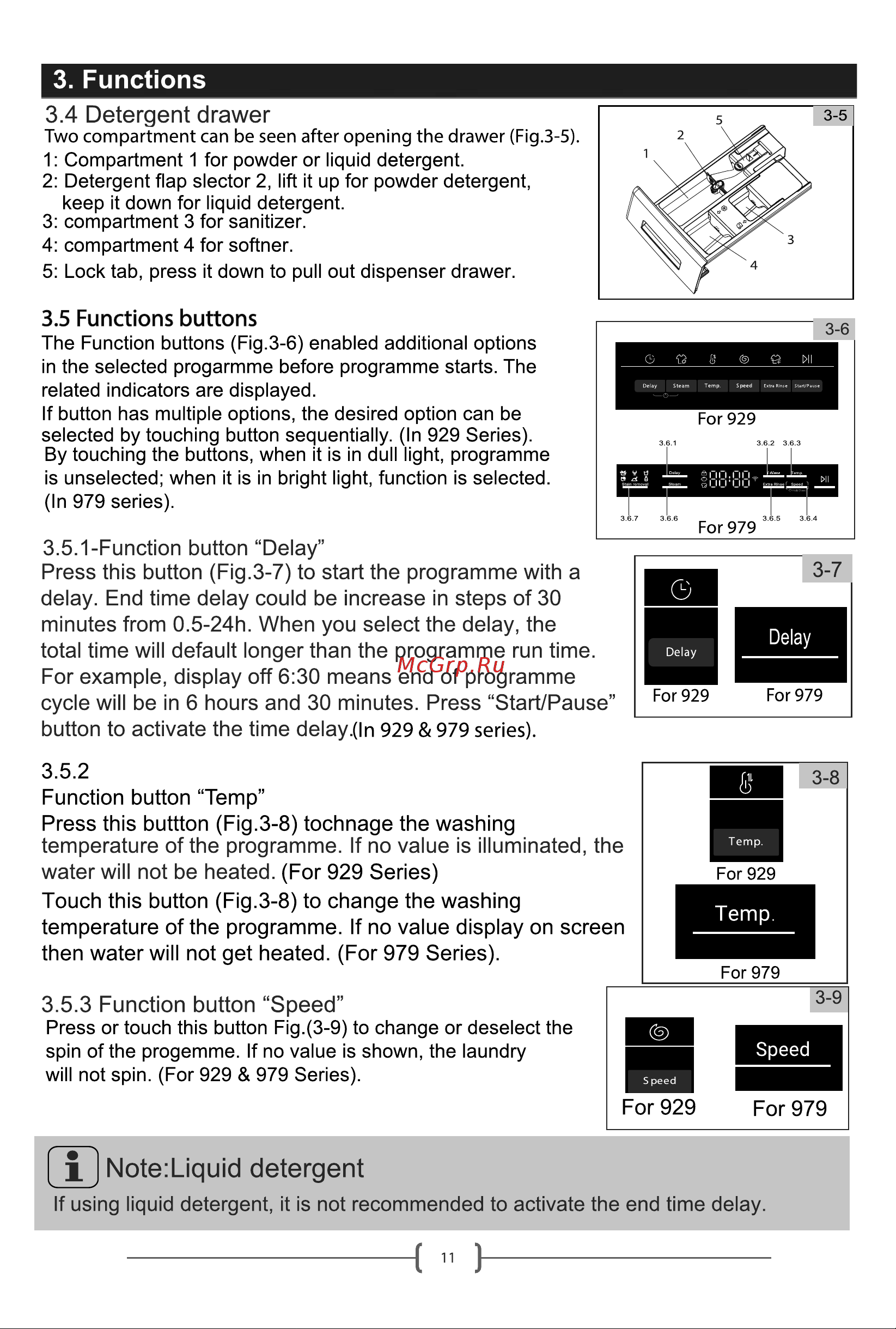

3 Functions 3 4 Detergent drawer Two compartment can be seen after opening the drawer Fig 3 5 1 Compartment 1 for powder or liquid detergent 2 Detergent flap elector 2 lift it up for powder detergent keep it down for liquid detergent 3 compartment 3 for sanitizer 4 compartment 4 for softner 5 Lock tab press it down to pull out dispenser drawer button to activate the time delay In 929 979 series 3 5 2 Function button Temp Press this buttton Fig 3 8 tochnage the washing temperature of the programme If no value is illuminated the water will not be heated For 929 Series For 929 Touch this button Fig 3 8 to change the washing temperature of the programme If no value display on screen then water will not get heated For 979 Series Temp For 979 3 9 3 5 3 Function button Speed Press or touch this button Fig 3 9 to change or deselect the spin of the progemme If no value is shown the laundry will not spin For 929 979 Series Speed For 929 1J Note Liquid detergent If using liquid detergent it is not recommended to activate the end time delay For 979
