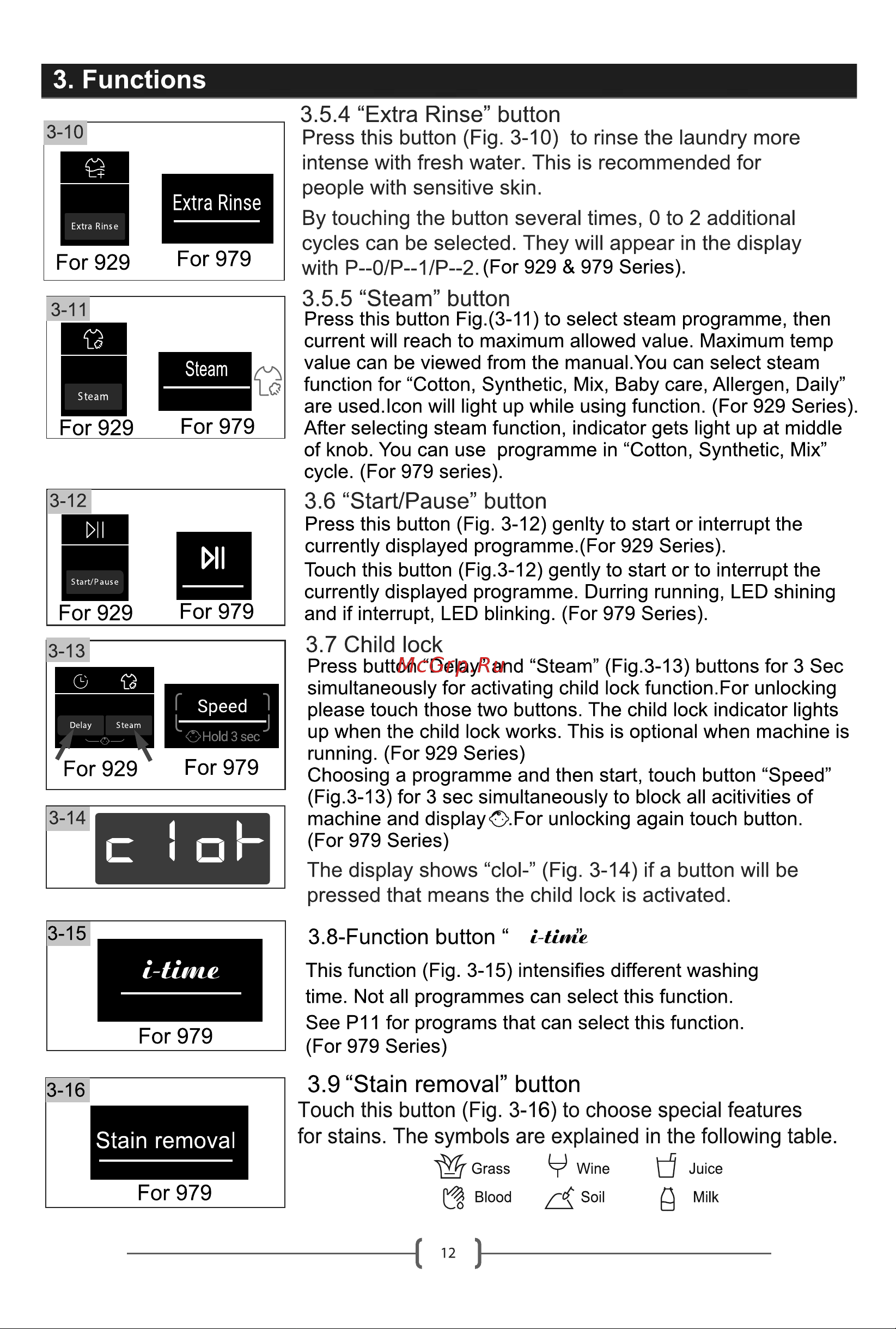

3 Functions 3 5 4 Extra Rinse button Press this button Fig 3 10 to rinse the laundry more intense with fresh water This is recommended for people with sensitive skin By touching the button several times 0 to 2 additional cycles can be selected They will appear in the display with P 0 P 1 P 2 For 929 979 Series 3 5 5 Steam button Press this button Fig 3 11 to select steam programme then current will reach to maximum allowed value Maximum temp value can be viewed from the manual You can select steam function for Cotton Synthetic Mix Baby care Allergen Daily are used Icon will light up while using function For 929 Series After selecting steam function indicator gets light up at middle of knob You can use programme in Cotton Synthetic Mix cycle For 979 series 3 6 Start Pause button Press this button Fig 3 12 genlty to start or interrupt the currently displayed programme For 929 Series Touch this button Fig 3 12 gently to start or to interrupt the currently displayed programme Durring running LED shining and if interrupt LED blinking For 979 Series 3 7 Child lock 3 13 Delay Steam ZFor I Speed I I OHold3sec к 92э For 979 Press button Delay and Steam Fig 3 13 buttons for 3 Sec simultaneously for activating child lock function For unlocking please touch those two buttons The child lock indicator lights up when the child lock works This is optional when machine is running For 929 Series Choosing a programme and then start touch button Speed Fig 3 13 for 3 sec simultaneously to block all acitivities of machine and displayO For unlocking again touch button For 979 Series The display shows clol Fig 3 14 if a button will be pressed that means the child lock is activated 3 15 3 8 Function button i time For 979 This function Fig 3 15 intensifies different washing time Not all programmes can select this function See P11 for programs that can select this function For 979 Series 3 9 Stain removal button 3 16 Stain removal Touch this button Fig 3 16 to choose special features for stains The symbols are explained in the following table Wine For 979 rF Soil Juice Q Milk
