Panasonic WH-UD09CE5-A [124/146] Technical data
![Panasonic WH-UD09CE5-A [124/146] Technical data](/views2/1833144/page124/bg7c.png)
124
19 Technical Data
19.1. Operation Characteristics
19.1.1. WH-SDF07C3E5 WH-UD07CE5-A

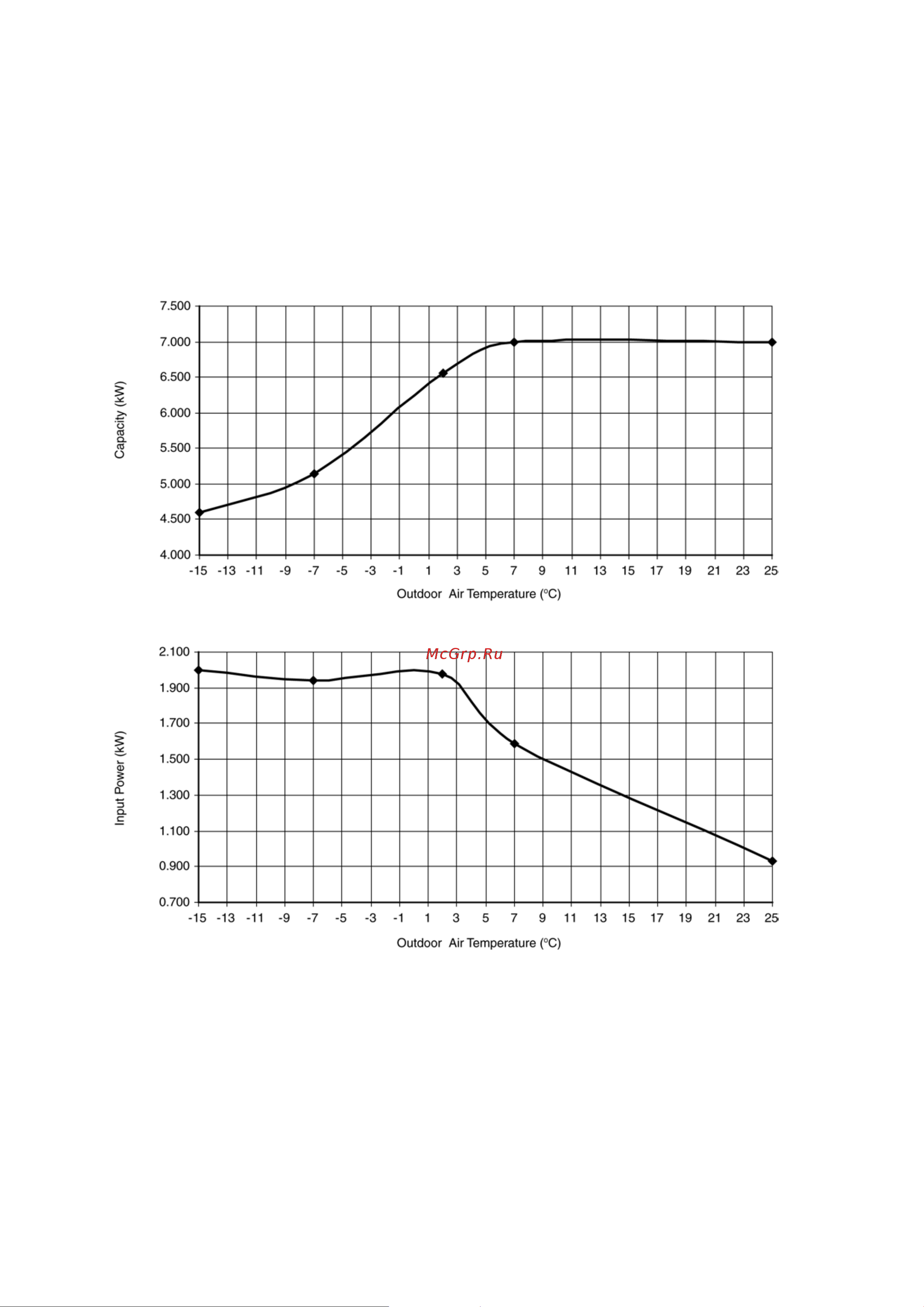

Heating Characteristics at Different Outdoor Air Temperature
Condition
Outdoor air temperature : 7°C (DBT), 6°C (WBT)
Indoor water inlet temperature : 30°C
Indoor water outlet temperature : 35°C
Piping length : 7m
