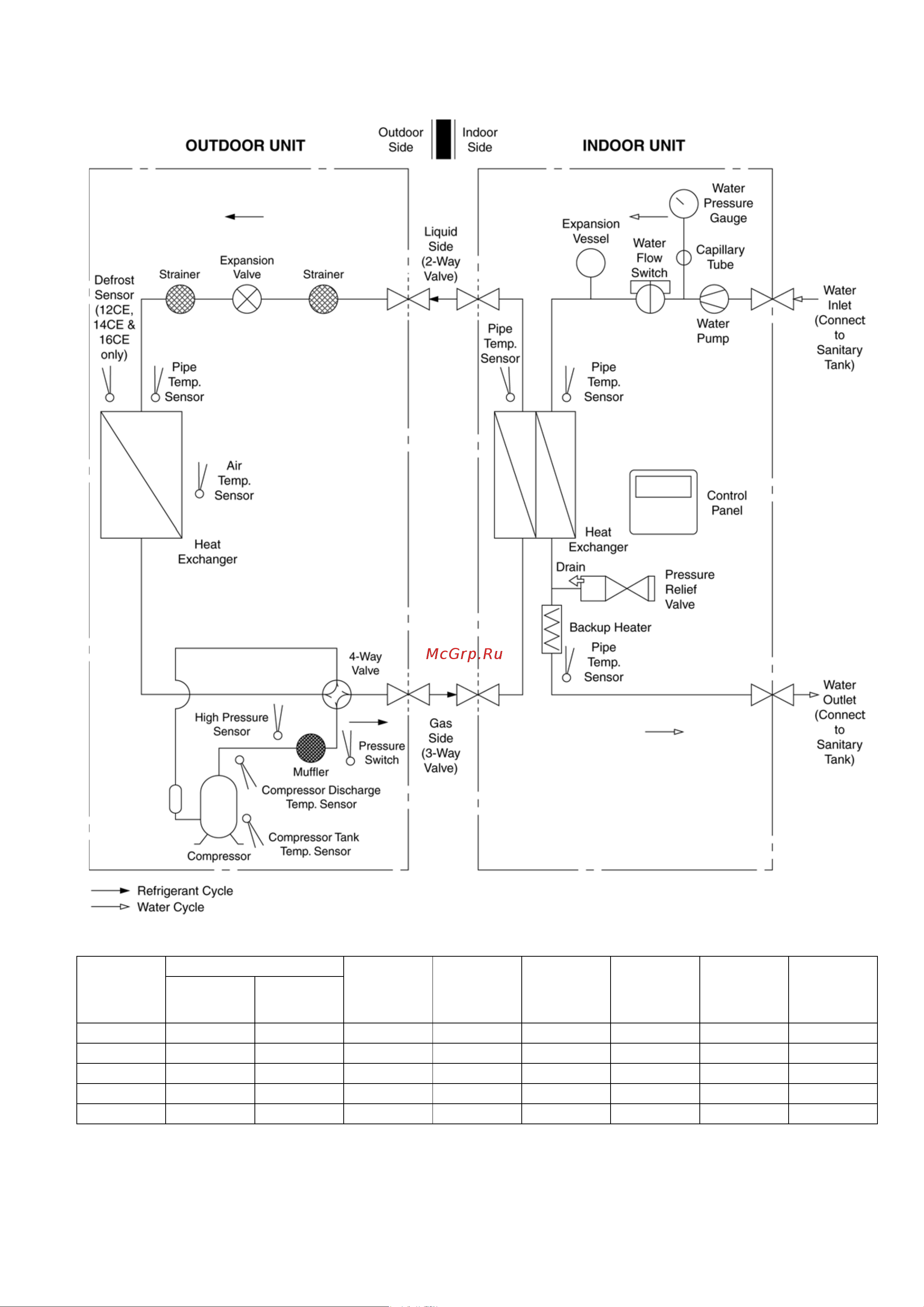

6 Refrigeration And Water Cycle Diagram
* If piping length is over common length, additional refrigerant should be added as shown in the table.
Piping size
Rated
Length
(m)
Common
Length
(m)
Max
Elevation
(m)
Min.
Piping
Length
(m)
Max.
Piping
Length
(m)
Additional
Refrigerant
(g/m)
Model Gas Liquid
UD07CE5-A 5/8” 1/4” 7 10 20 3 30 30
UD09CE5-A 5/8” 1/4” 7 10 20 3 30 30
UD12CE5-A 5/8” 3/8” 7 30 30 3 40 50
UD14CE5-A 5/8” 3/8” 7 30 30 3 40 50
UD16CE5-A 5/8” 3/8” 7 30 30 3 40 50
