12.1. Select The Best Location

INDOOR UNIT

• There should not be any heat source or steam near the unit.

• A place where air circulation in the room is good.

• A place where drainage can be easily done.

• A place where noise prevention is taken into consideration.

• Do not install the unit near the door way.

• Ensure the spaces indicated by arrows from the wall, ceiling,

fence or other obstacles.

• Recommended installation height for indoor unit shall be at

least 800 mm.

• Must install on a vertical wall.

• When install electrical equipment at wooden building of

metal lath or wire lath, according to electrical facility

technical standard, no electrical contact between equipment

and building is allowed. Insulator must be installed in

between.

• Do not install the unit at outdoor. This is designed for indoor

installation only.

• When connecting solar pump station cable between indoor

unit and solar pump station, the distance between both

apparatuses shall be 2 ~ 8 meters and the length of the said

cable must be shorter than 10 meter.

Fail to do so may lead to abnormal operation to the system.

OUTDOOR UNIT

• If an awning is built over the unit to prevent direct sunlight or

rain, be careful that heat radiation from the condenser is not

obstructed.

• Avoid location where ambient temperature is below -20°C.

• Keep the spaces indicated by arrows from wall, ceiling,

fence or other obstacles.

• Do not place any obstacles which may cause a short circuit

of the discharged air.

• If outdoor unit installed near sea, region with high content of

sulphur or oily location (e.g. machinary oil, etc), it lifespan

maybe shorten.

•

• If piping length is over 30 m, additional refrigerant should be

added as shown in the table.

Example : For SDF12C6E5/UD12CE5**

If piping length is 40m, the quantity of additional refrigerant

should be 500g. [(40-30)m x 50 g/m = 500g]

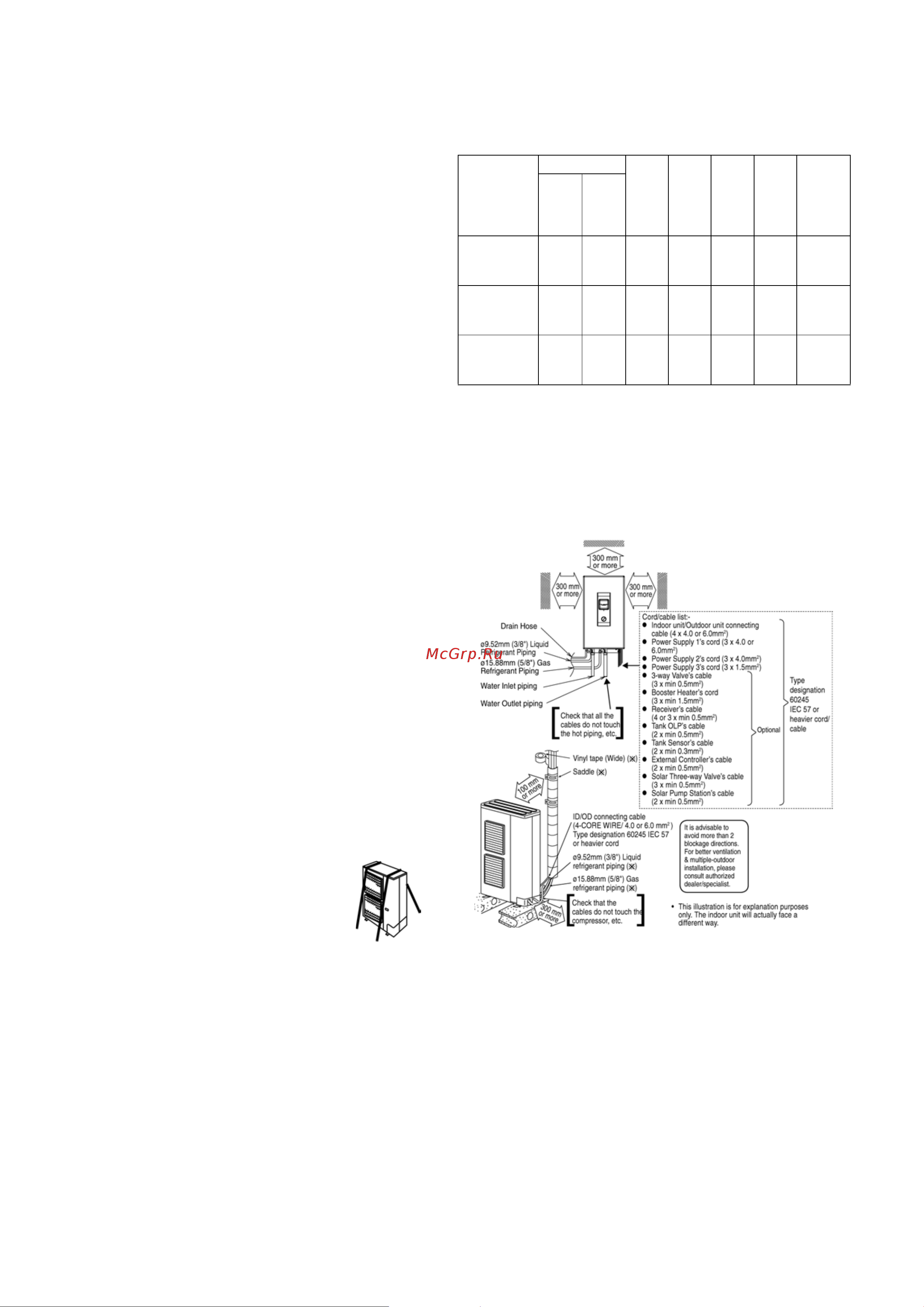

12.2. Indoor/Outdoor Unit

Installation Diagram

• When installing the product in a place where it

will be affected by typhoon or strong wind

such as wind blowing between buildings,

including the rooftop of a building and a place

where there is no building in surroundings, fix

the product with an overturn prevention wire,

etc. (Overturn prevention fitting model

number: K-KYZP15C)

Model

Piping size Rated

Length

(m)

Max

Eleva-

tion

(m)

Min.

Piping

Length

(m)

Max.

Piping

Length

(m)

Addi-

tional

Refrige-

rant

(g/m)

Gas Liquid

SDF12C6E5/

UD12CE5**

ø15.88

mm

(5/8”)

ø9.52

mm

(3/8”)

5~7.5 30 3 40 50

SDF14C6E5/

UD14CE5**

ø15.88

mm

(5/8”)

ø9.52

mm

(3/8”)

5~7.5 30 3 40 50

SDF16C6E5/

UD16CE5**

ø15.88

mm

(5/8”)

ø9.52

mm

(3/8”)

5~7.5 30 3 40 50
