13.15. External Room Thermostat Control (Optional)
Purpose:
1. Better room temperature control to fulfill different temperature request by external room thermostat.
Recomended external room thermostat:
Connection of external room thermostat:

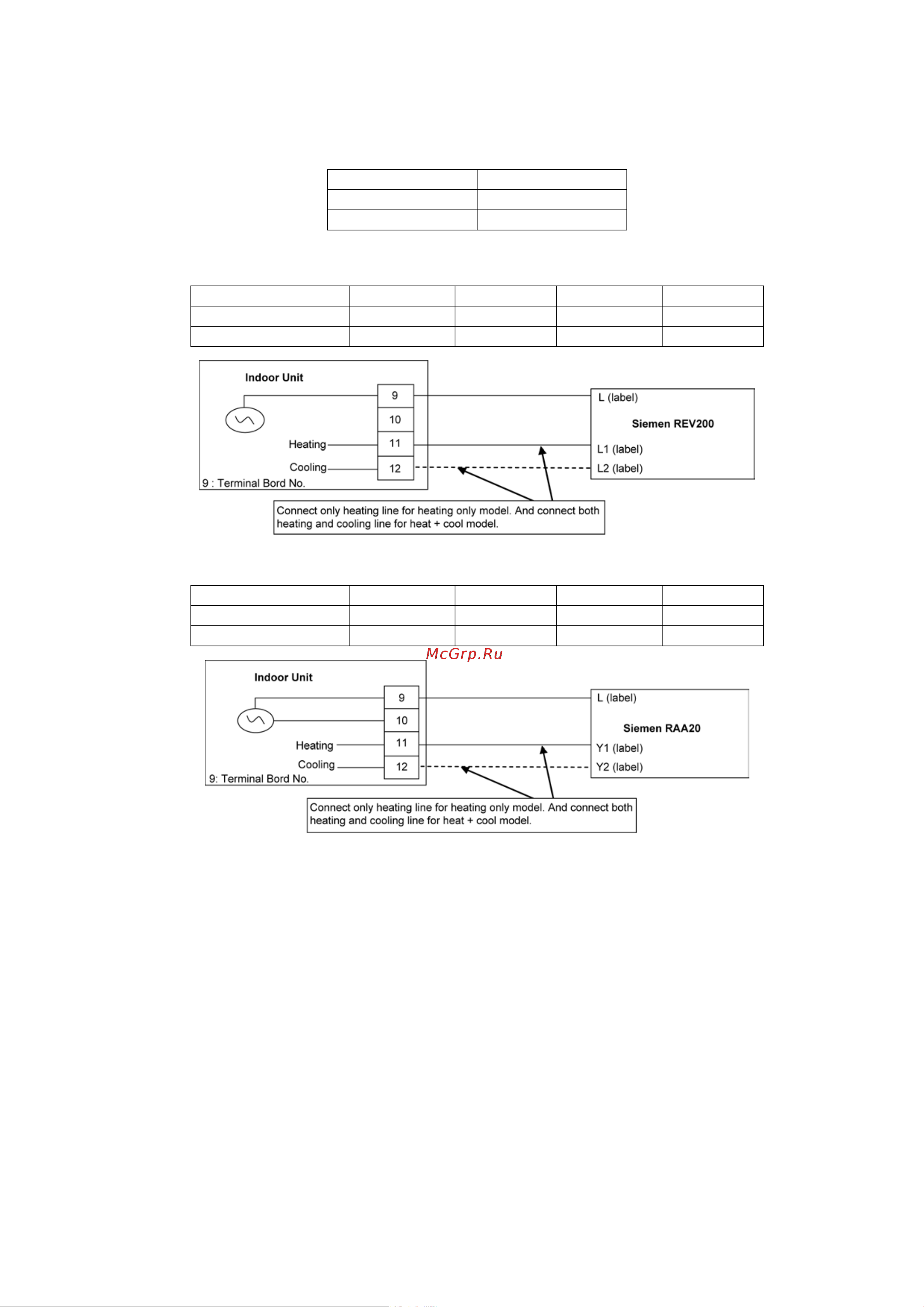

Wire connection and thermo characteristic of Siemen REV200:
Wire connection and thermo characteristic of Siemen RAA20:
Control Content:
• External room thermostat control activate only when remote thermostat connection select YES by Indoor control panel.
• When indoor running heat mode, refer thermo On/Off from heating line feedback. And when indoor running cool mode,
refer thermo On/Off from cooling line feedback.
• Heat pump Off immediately when receive thermo off feedback.
Maker Characteristic
Siemen (REV200) Touch panel
Siemen (RAA20) Analog
Setting L/L1 (H) Heat Thermo L/L2 (C) Cool Thermo
Set Temp < Actual Temp Open circuit OFF Short circuit ON
Set Temp > Actual Temp Short circuit ON Open circuit OFF
Setting L/Y1 (H) Heat Thermo L/Y2 (C) Cool Thermo
Set Temp < Actual Temp Open circuit OFF Short circuit ON
Set Temp > Actual Temp Short circuit ON Open circuit OFF
