Panasonic CS-F50DD1E5 / CU-B50DBE8 [117/147] Cs f43dd1e5 cu b43dbe8

13.4.1.6. CS-F43DD1E5 CU-B43DBE8

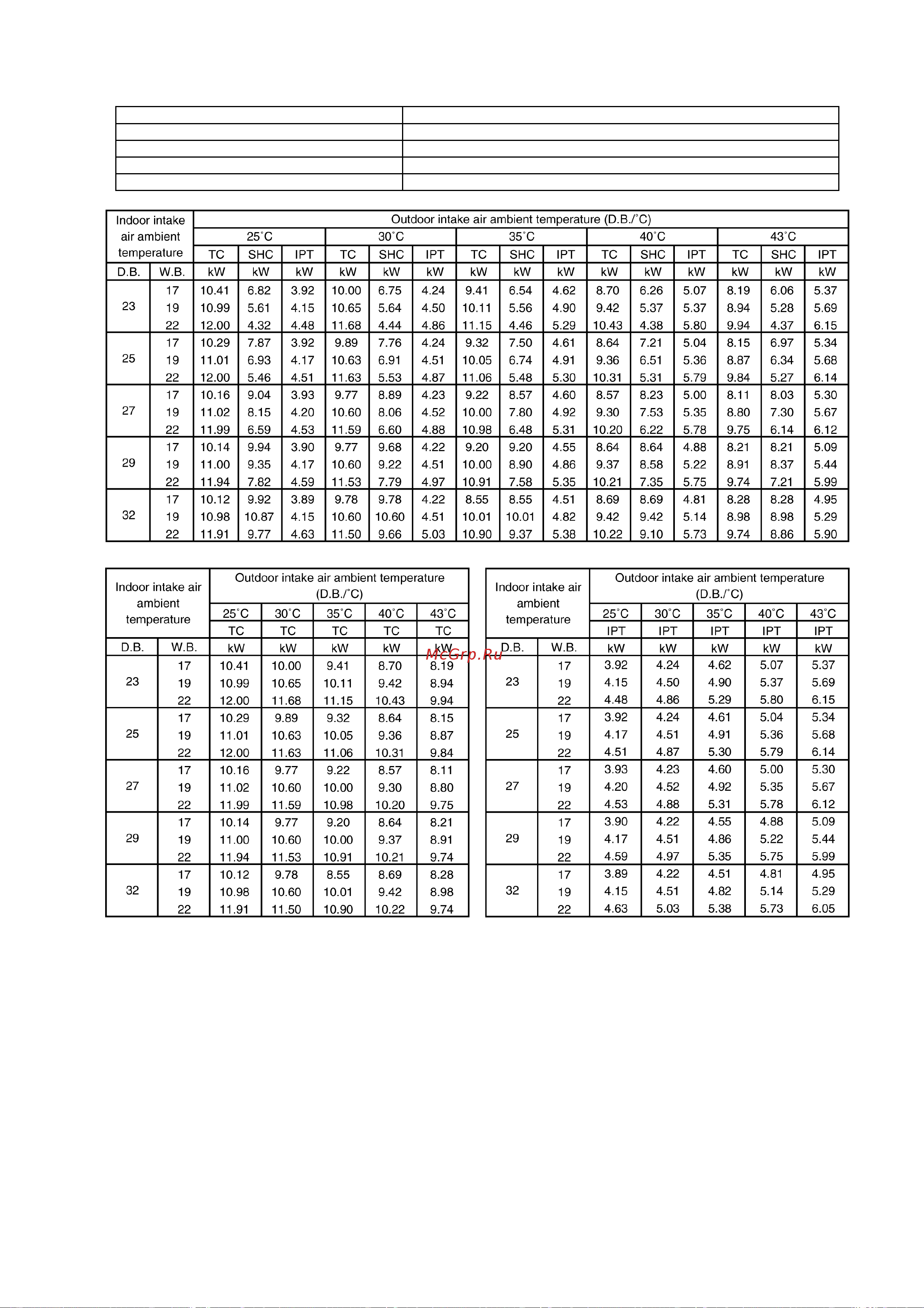

Model Cooling capacities are based on conditions

CS-F43DD1E5 CU-B43DBE8 3 phase, 50Hz, 400V

Cooling capacity Indoor temp. 27°C D.B. 19°C W.B.

12.5 kW Outdoor temp. 35°C D.B.

Standard air volume 50 m

/min

TC : Cooling Capacity

SHC : Sensible Heat Capacity

IPT : Cooling Power Consumption
