9.6. Normal control

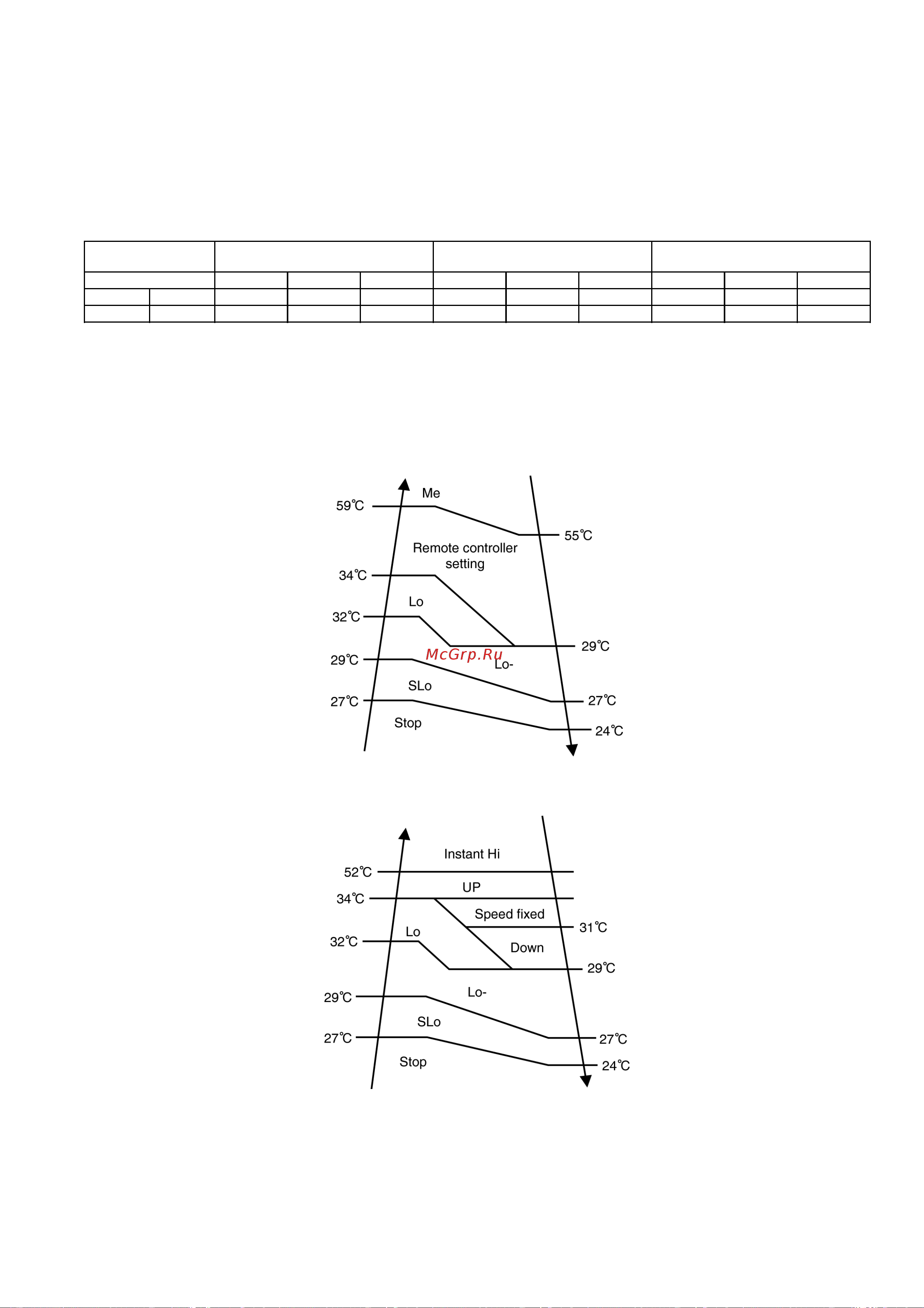

9.6.1. Cooling Indoor Fan Control
• Manual Fan Speed
Operation starts at High, Medium or Low speed set by remote control.
• Auto Fan Speed
When operation starts, or shifting to thermostat ON condition from thermostat OFF condition, indoor fan operates as below.
Thermostat &
Compressor ON/OFF
Thermostat & Compressor ON Thermostat & Compressor OFF Thermostat & Compressor ON
Time 40 sec. 50 sec. - 20 sec. 120 sec. 20 sec. 40 sec. 50 sec. -
Cool Auto Off Lo Hi Lo Off Lo Off Lo Me
Soft Dry Auto Off Lo Lo Lo Off Lo Off Lo Lo
9.6.2. Heating Indoor Fan Control
• Manual Fan Speed
Operation starts at High, Medium or Low speed set by remote control.
However, when operation start, or during operation, fan speed control is limited due to prevent a cold draft, for example, when
heating operation start.
• Auto Fan Speed
When operation start, or during operation, fan speed control by detecting indoor heat exchanger as follows:
• If thermostat is off, indoor fan fixed low speed.
