9 OPERATION DETAIL
9.1. Cooling operation
• Cooling operation can be set using remote control.
• This operation is applied to cool down the room temperature reaches the setting temperature set on the remote control.

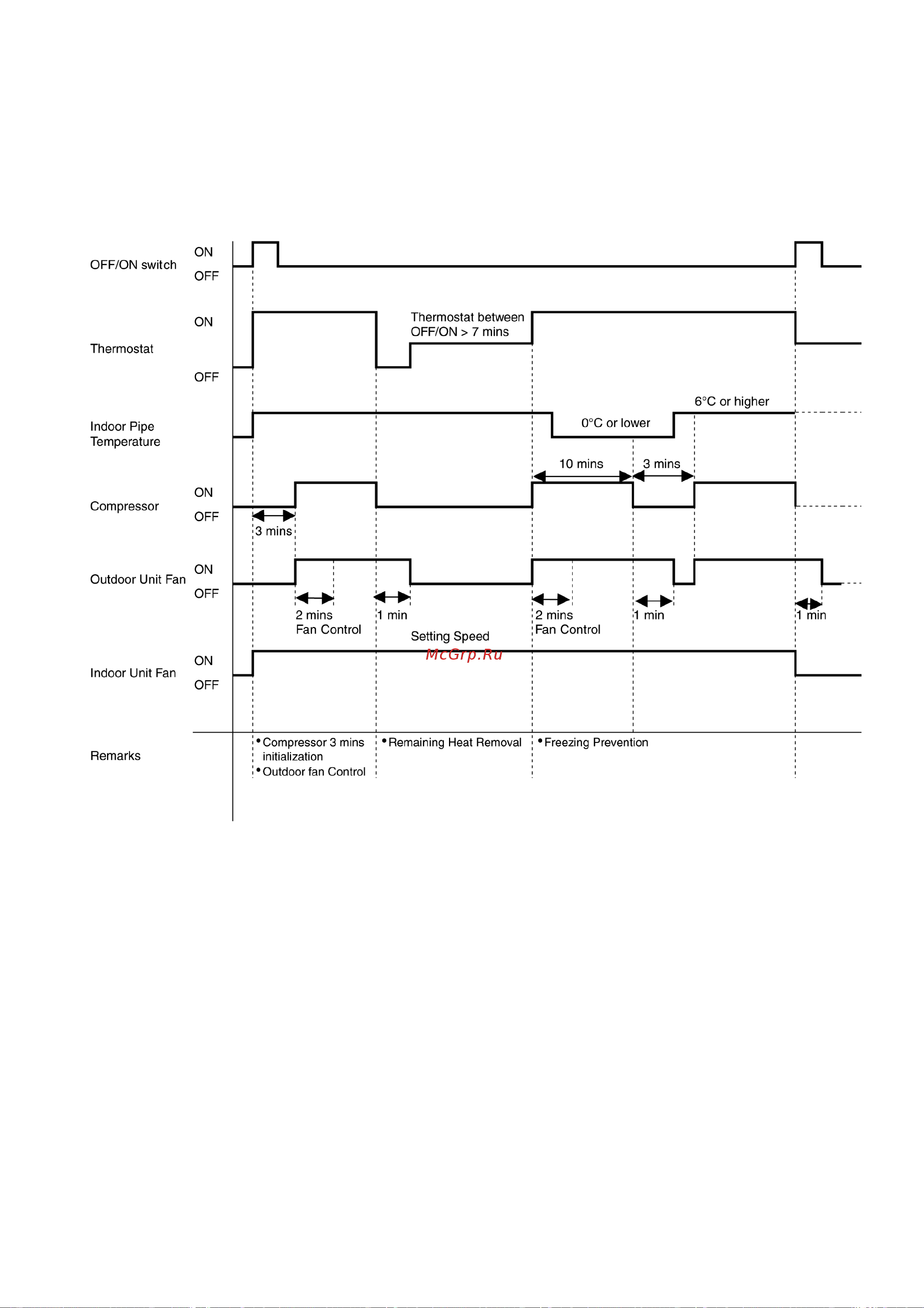

• Cooling Operation Time Diagram.
