CS-F50DD1E5 / CU-B50DBE8
Сервис мануал Страница: 128

Panasonic CS-F50DD1E5 / CU-B50DBE8 [128/147] Cs f50dd1e5 cu b50dbe8

13.4.2.7. CS-F50DD1E5 CU-B50DBE8

Model Heating capacities are based on conditions

CS-F50DD1E5 CU-B50DBE8 3 phase, 50Hz, 400V

Heating capacity Indoor temp. 20°C D.B.

15 kW Outdoor temp. 7°C D.B. 6°C W.B.

Standard air volume 60 m

/min

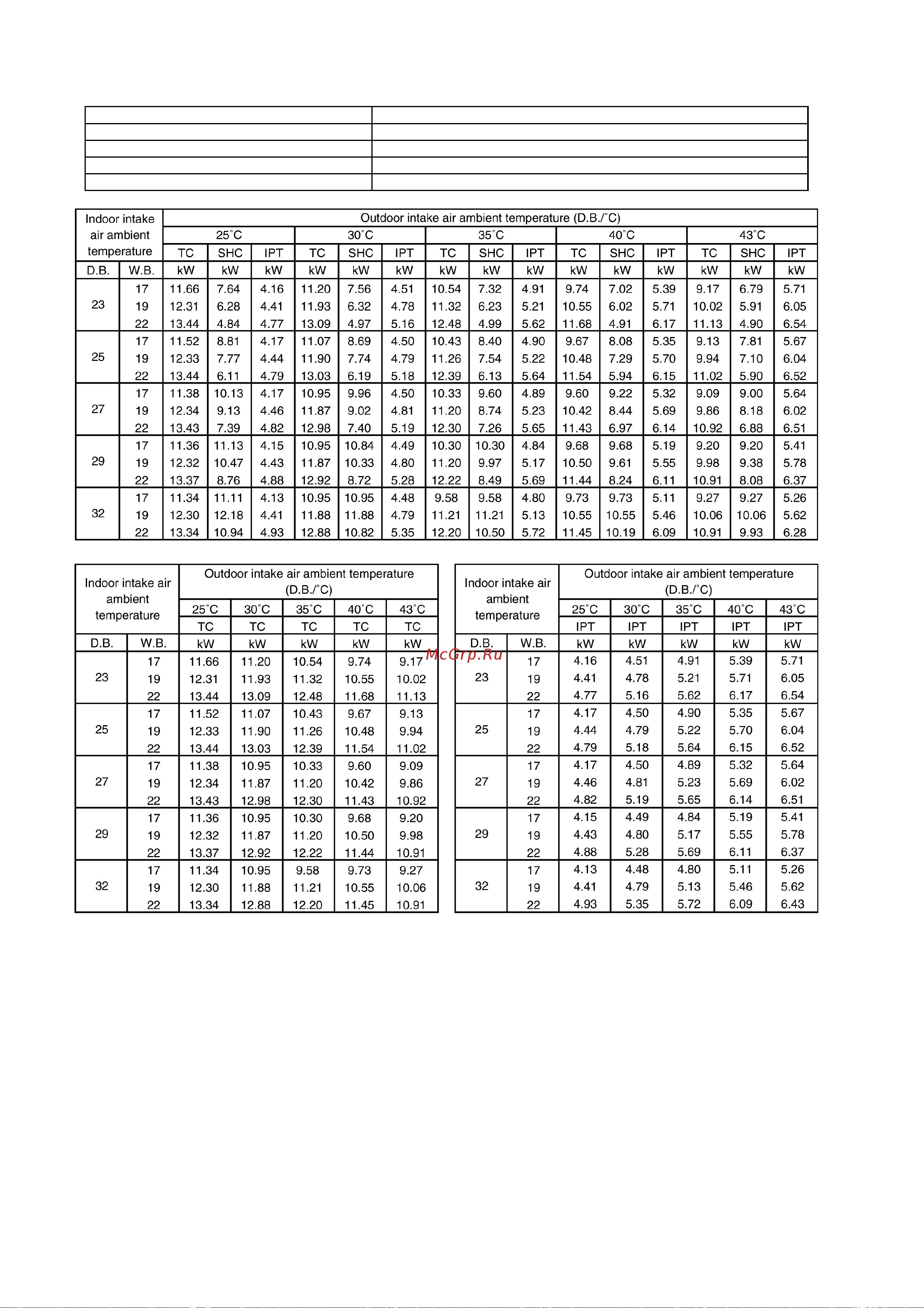

TC : Cooling Capacity

SHC : Sensible Heat Capacity

IPT : Cooling Power Consumption

128
