9.2. Heating operation
• Heating operation can be set using remote control.
• This operation is applied to warm up the room temperature reaches the setting temperature set on the remote control.

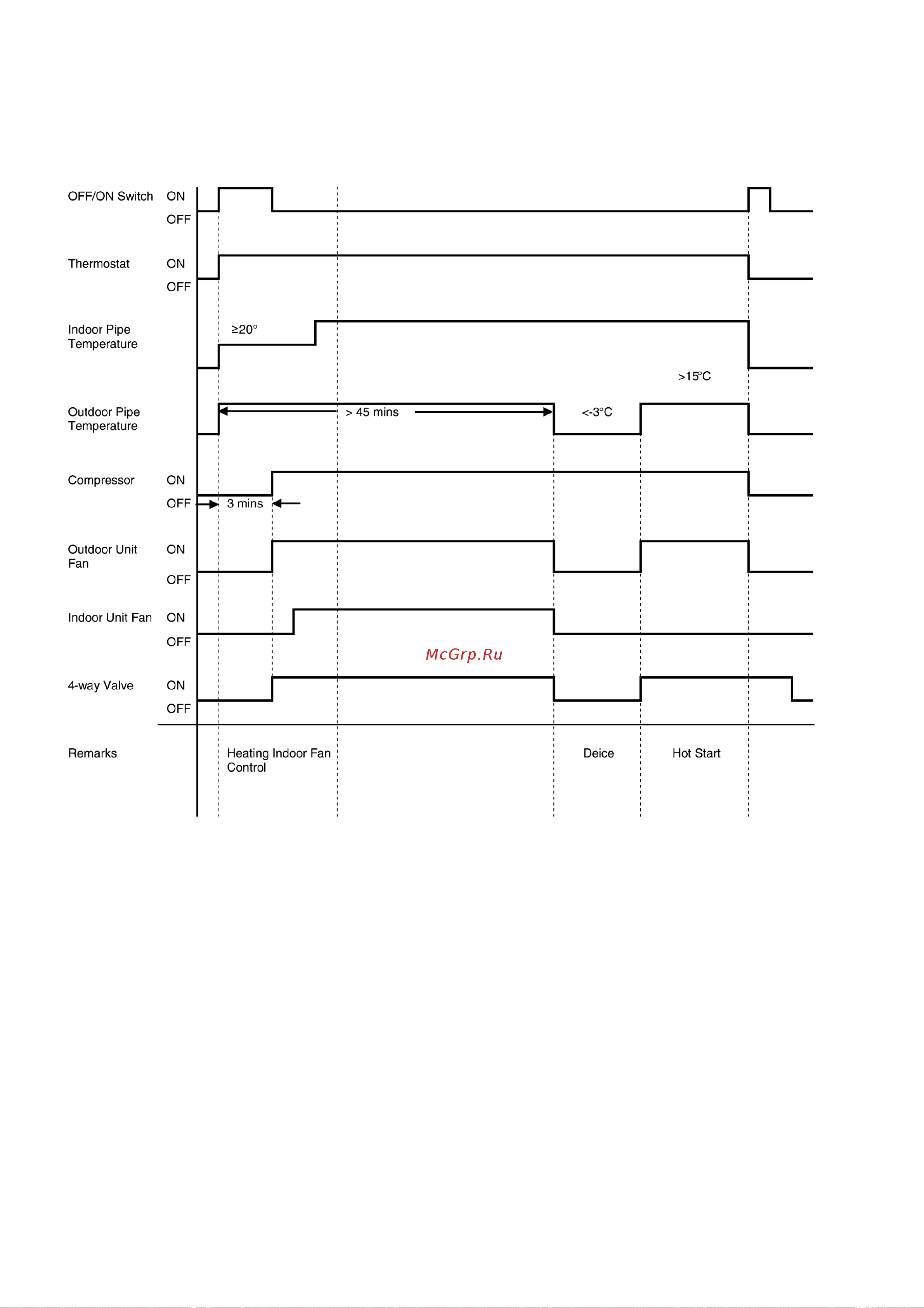

• Heating Operation Time Diagram.
9.3. Soft dry operation
• Soft Dry Operation can be set using remote control.
• Soft Dry operation is applied to dehumidify the room.
• When operation begins, the fan speed is fixed at Low speed while cooling operation is running until reaches the remote control
setting temperature.
9.4. Auto operation
• Automatic Mode can be set using remote control.
• This operation starts to judge the intake air temperature, setting temperature, and outdoor piping temperature. Then the unit
starts to operate at determined operation mode.
9.5. Fan operation
• Fan operation can be set using remote control.
• The indoor fan is operated at High, Medium or Low speed according to remote control setting.
36
