LG 52LB9RF [23/104] When connecting hdmi cable
![LG 52LB9RF [23/104] When connecting hdmi cable](/views2/1085644/page23/bg17.png)
21
EXTERNAL EQUIPMENT SETUP
HDMI IN HDMI IN HDMI DVI IN HDMI DVI IN
HDMI IN HDMI IN HDMI/DVI IN HDMI/DVI IN
1 2
HDMI IN HDMI DVI IN
1
2
COMPONENT IN
AV IN 2
L/MONO
R
AUDIO
VIDEO
S-VIDEO
1

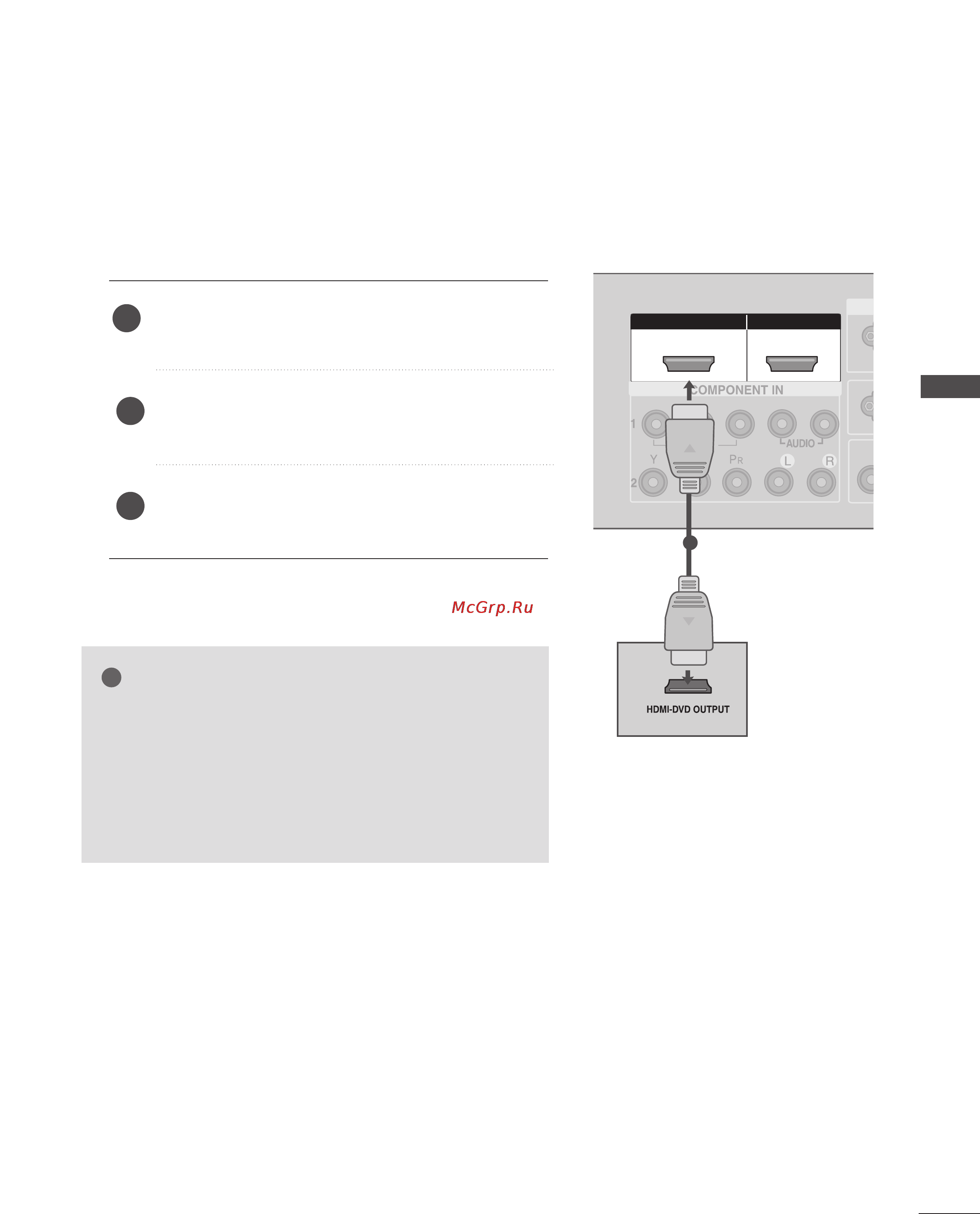

When connecting HDMI cable
Connect the HDMI output of the DVD to the
HHDDMMII//DDVVII IINN 11
or
HHDDMMII IINN 22
jack on the set.
Select
HDMI1/DVI or HDMI2 input source using
the
IINNPPUUTT
button on the remote control.
Refer to the DVD player's manual for operating
instructions.
1
GG
If the DVD supports Auto HDMI function, the DVD output
resolution will be automatically set to 1280x720p.
GG
If the DVD player does not support Auto HDMI, you must
set the output resolution appropriately.
To get the best picture quality, adjust the output resolution
of the DVD to 1920x1080i/1080p. (60PC4R
*,
47LB9R
*
:
1280x720p)
NOTE
!
2
