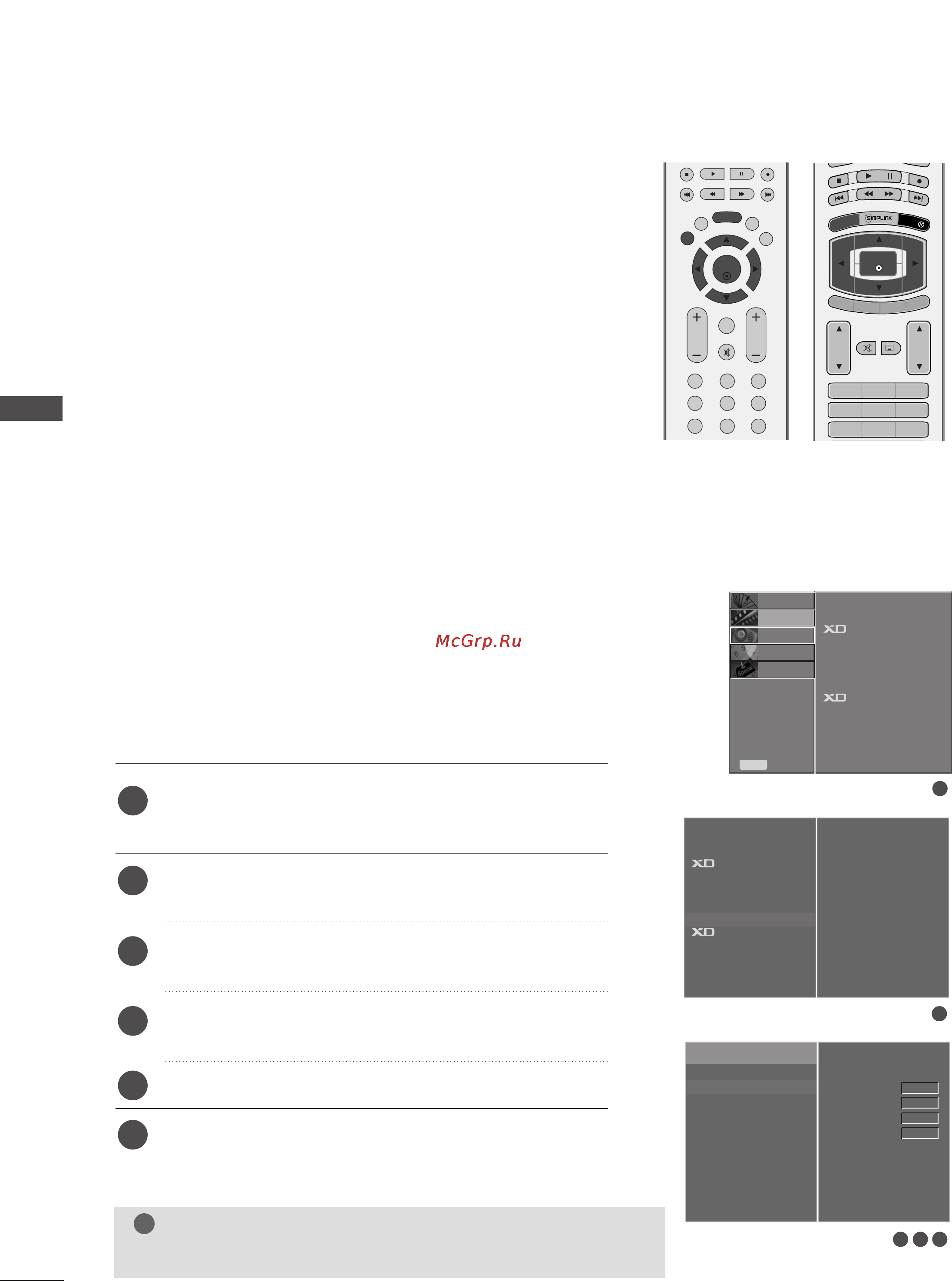

LG 52LB9RF [32/104] Adjustment for screen phase clock position
![LG 52LB9RF [32/104] Adjustment for screen phase clock position](/views2/1085644/page32/bg20.png)
30
EXTERNAL EQUIPMENT SETUP
If the picture is not clear after auto adjustment and especially if
characters are still trembling, adjust the picture phase manually.
It is not available to use this function in 1:1 Pixel mode.
To correct the screen size, adjust
CClloocckk
.
This function works in the following mode : RGB[PC], COMPO-
NENT (480i/480p/576i/576p/720p/1080i/1080p),
HDMI (480p/576p/720p/1080i/1080p).
It is not available to use Phase, Clock function in COMPONENT
(480i/480p/576i/576p/720p/1080i/1080p),
HDMI (480p/576p/720p/1080i/1080p).
CClloocckk
Clock This function is to minimize any vertical bars or
stripes visible on the screen background the horizontal
screen size will also change.
PPhhaassee
This function allows you to remove any horizontal noise
and clear or sharpen the image of characters.
Press the
MMEENNUU
button and then use
DD
//
EE
button to
select the
PICTURE menu.
Press the
GG
button and then use
DD
//
EE
button to select
Screen.
Press the
GG
button and then use
DD
//
EE
button to select
Manual Config..
Press the
GG
button and then use
DD
//
EE
button to select
Phase, Clock, H-Position or V-Position.
Press the
FF
//
GG
button to make appropriate adjustments.
Press the
EEXXIITT
button to return to TV viewing.
1
2
3
4
5
6
Adjustment for screen Phase, Clock, Position
