27
EXTERNAL EQUIPMENT SETUP
DVI-PC OUTPUT
AUDIO
RGB IN
HDMI IN
HDMI DVI IN
HDMI IN HDMI/DVI IN
12
HDMI IN HDMI DVI IN
AUDIO
(RGB/DVI)
RGB
(PC)
HDMI IN HDMI DVI IN
AUDIO
(RGB/DVI)
RGB
(PC)
RGB INRGB IN
HDMI/DVI IN HDMI/DVI IN
1
RS-232C
(CONTROL&SERVICE)
AV IN 1AV IN 1 AV OUTAV OUT
L/M
O
N
O
AUDIO OUT
1
2

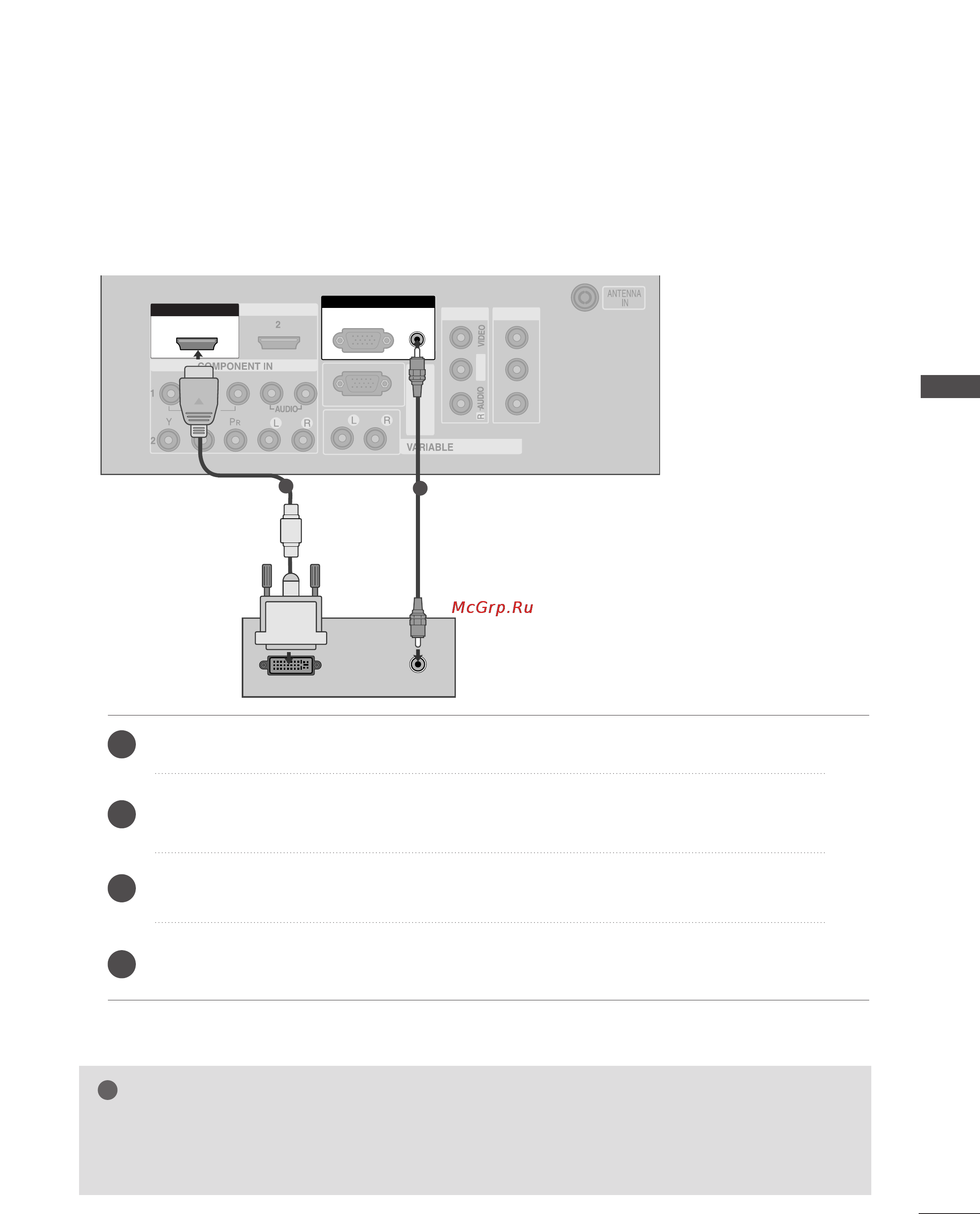

Connect the DVI output of the PC to the
HHDDMMII//DDVVII IINN 11
jack on the set.
Connect the PC audio output to the
AAUUDDIIOO((RRGGBB//DDVVII))
jack on the set.
Turn on the PC and the set.
Select
HDMI1/DVI input source using the
IINNPPUUTT
button on the remote control.
2
3
4
1
When connecting with a HDMI to DVI cable
GG
HDMI2 source does not support DVI source.
GG
If the PC has a DVI output and no HDMI output, a separated audio connection is necessary.
GG
If the PC does not support Auto DVI, you need to set the output resolution appropriately.
NOTE
!
