12

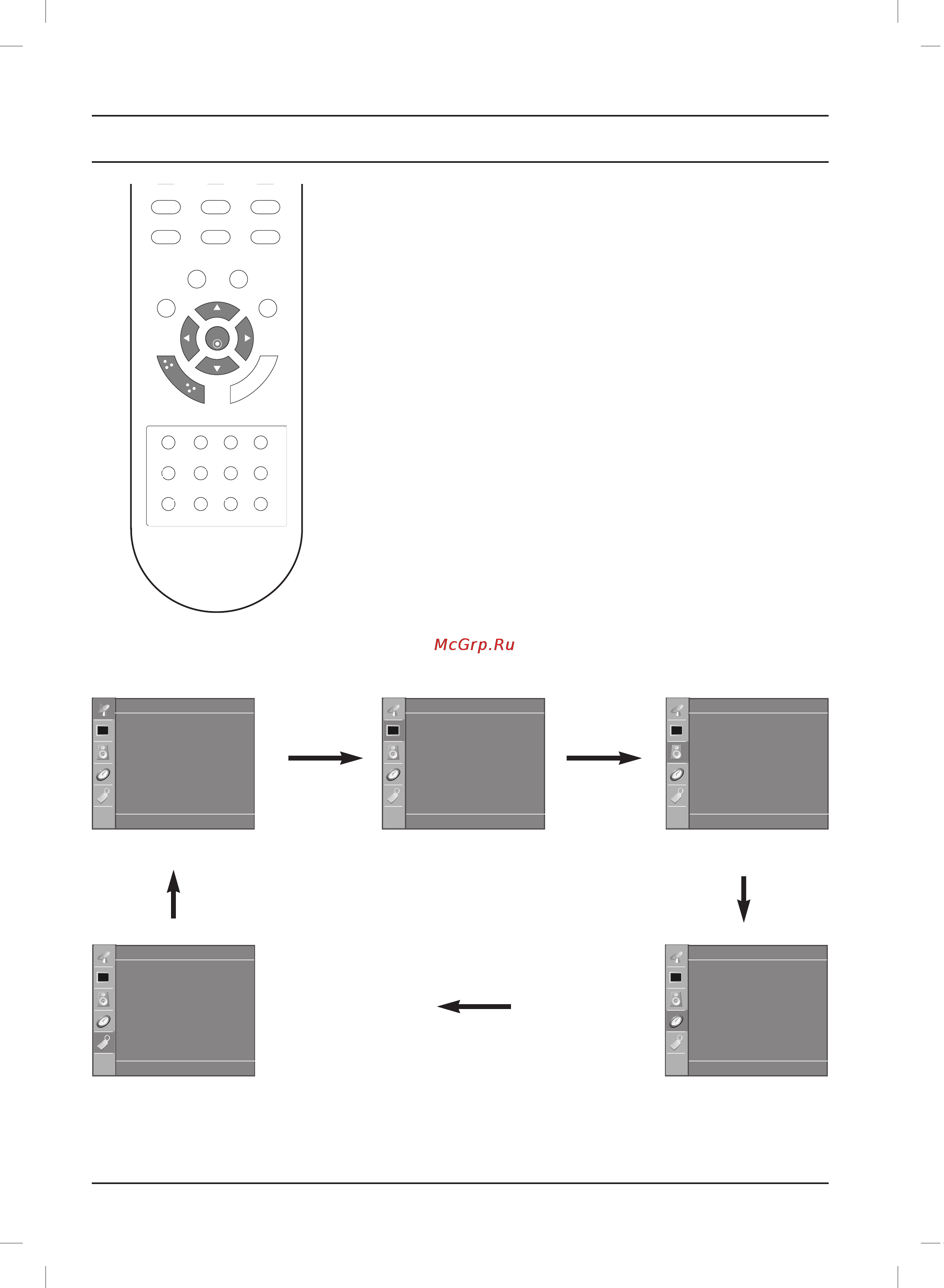

Menu selection
1. Press the MENU button and then
DD
/
EE
button to display each menu.
2. Press the
GG
button and then
DD
/
EE
button to select a menu item.
3. Change the setting of an item in the sub or pull-down menu with
FF
/
GG
button.
You can move to the higher level menu by pressing the OK
button and to move to the lower level menu by pressing the
MENU
button.
Note :
a. In the teletext mode, menus are not displayed.
Programme selection
You can select a programme number with the
DD
/
EE
or NUMBER
buttons.
Volume adjustment
Press the
FF
/
GG
button to adjust the volume.
879
0
OK
LIST
MUTE
VOL
HOLD SIZE MIX TIME
REVEAL MODE
UPDATE
INDEX
VOL
PR
PR
TEXT
PSM SSM
Q.VIEW
M
EN
U
SLEEP
I/II
*
?
i
M
On screen menus
STATION menu
PICTURE menu
SOUND menu
SPECIAL menu
TIME menu
Station
DE F G
OK MENU
Auto programme
Manual programme
Programme edit
Favourite programme
DE F G
OK MENU
PSM
CSM
XD
Reset
Sound
DE F G
OK MENU
SSM
AVL
Balance 0
Time
DE F G
OK MENU
Clock
Off time
On time
Auto sleep
Special
DE F G
OK MENU
Language
Country
Child lock
XD Demo
