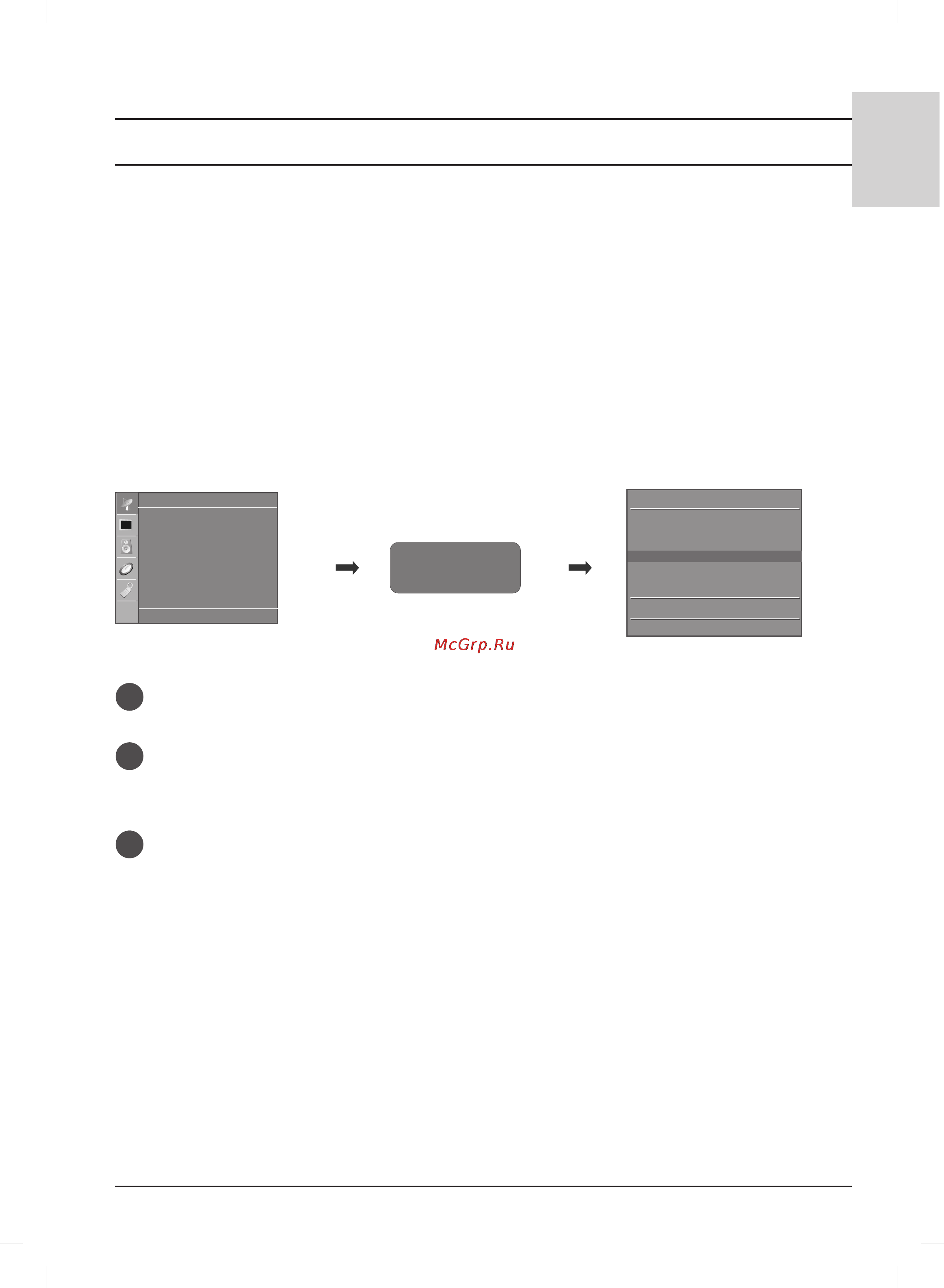

5
ENGLISH
Installation Menu
Introduction
The abundant functions for Hotel TV linked with software installation can be projected on OSD as
‘Installation Menu’.
The wide range of hotel features can be performed simply on additional window to enhance the LG hotel
TV’s easy installation and convenient operation for Hotelier and System Integrators.
Press the
MMEENNUU
button for more than 5 second using the user remote control, programme informa-
tion will appear at top right on the screen.
Enter a four digit password.
• The TV is set with the initial password “1-1-0-5”
and then, OK button.
Use the
DD
//
EE
button to select the desired menu.
C 40 9
00 : 04
1
2
3
Station
DE F G
OK MENU
Auto programme
Manual programme
Programme edit
Favourite programme
Installation Menu V2.0
MCU Version 2.02
LG Hotel Mode Setup
GG
TV Link-Loader
GG
Password Change
GG
Set ID Setup
GG
Clock Setup
GG
Configuration Setup
GG
MENU
DE G
OK
