LG 20LS1RH [58/59] Configuration setup

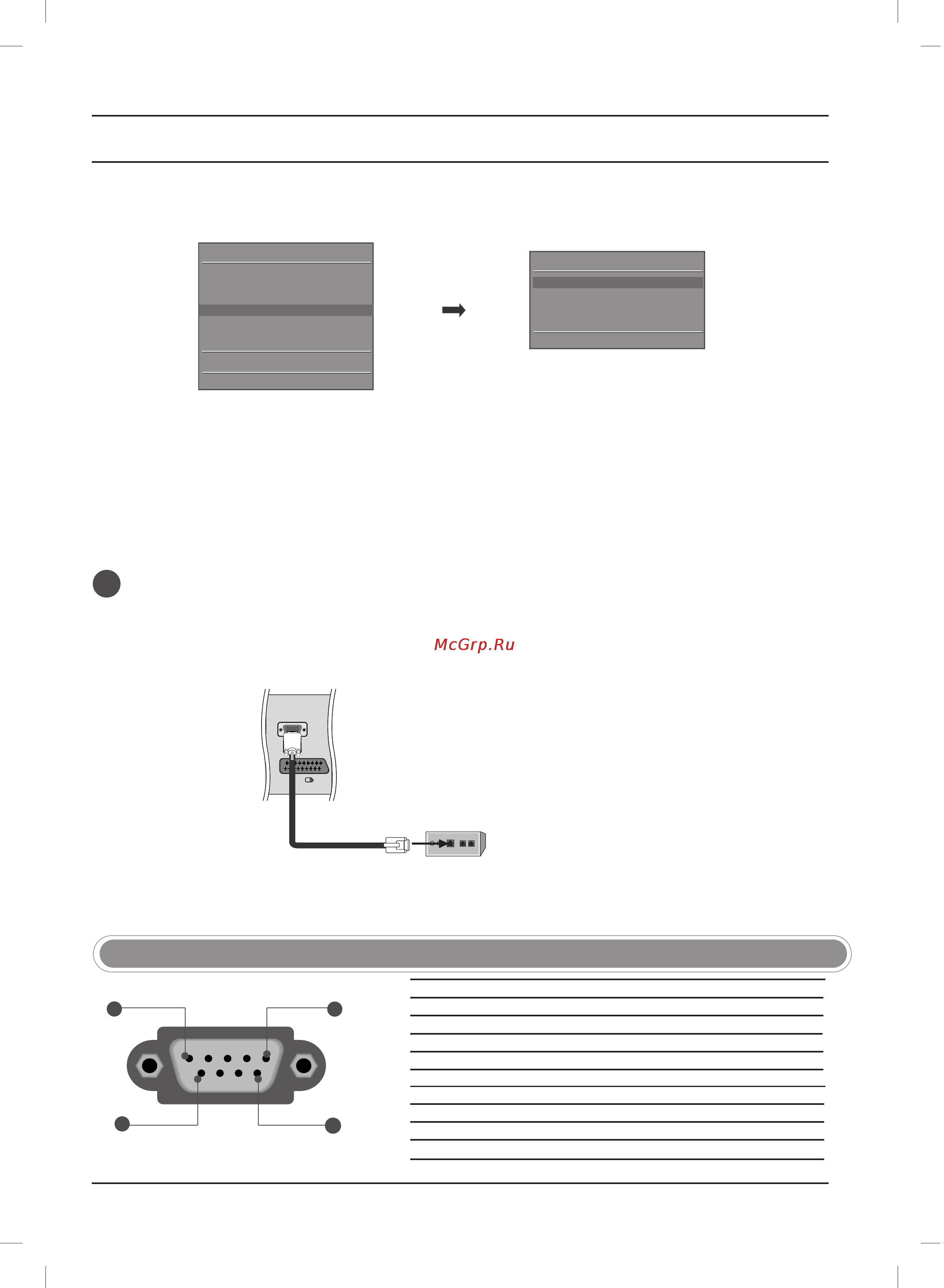

![LG 20LS1RH [58/59] Configuration setup](/views2/1085902/page58/bg3a.png)
14
Installation Menu
Configuration setup
Configuration Setup
- It is a mode to decide whether to output DC or not for power supply to IB Box in Installation Menu. We offer
a output terminal in one Pin of RS232C Jack for the use of communication.
((11))
DDCC PPoowweerr OOuuttlleett
You can select
‘‘YYEESS’’
or
‘‘NNOO’’
by pressing
GG
button.
• When select
‘‘YYEESS’’
the 5V is forwarded through the port, alternatively when select
‘‘NNOO’’
the
5V is not transmitted.)
1
RS-232C IN
(CONTROL & SERVICE)
AV 1
IInntteerrffaaccee bbooxx
TTyyppee ooff CCoonnnneeccttoorr;; DD--SSuubb 99--PPiinn MMaallee
No. Pin Name
1 No connection
2RX
3TX
4 IR-Out
5 GND
6 No connection
7 Power Output (5V Standby output)
8 No connection
9 No Connection
Male connector on box, viewed
towards connector.
RGB IN
(PC/DTV)
AUDIO OUT
VARIABLE
HDMI IN
RS-232C IN
(CONTROL
&
SERVICE)
99
1
5
6
Installation Menu V2.0
MCU Version 2.02
LG Hotel Mode Setup
GG
TV Link-Loader
GG
Password Change
GG
Set ID Setup
GG
Clock Setup
GG
Configuration Setup
GG
MENU
DE G
OK
DE F G
OK MENU
DC Power Outlet YES
RGB Overlay in RF YES
Remote Jack Pack YES
On Timer Operation ONE
