7
ENGLISH
Location and function of controls
All the functions can be controlled with the remote control handset.
Some functions can also be adjusted with the buttons on the top
panel of the set. Only the remote control handset supplied will
operate this set.

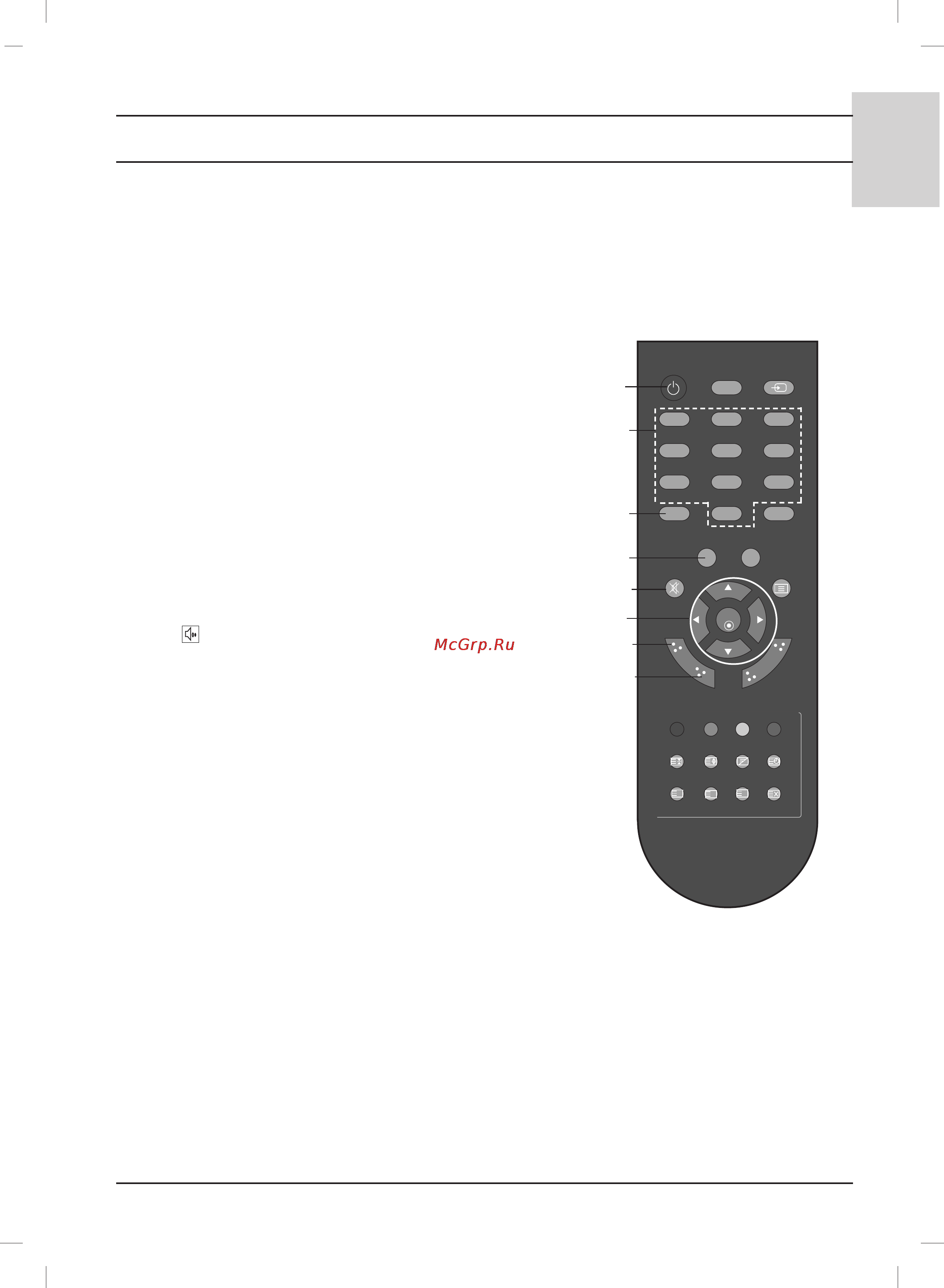

Remote control handset
Before you use the remote control handset, please install the
batteries. See the next page.
1. POWER
switches the set on from standby or off to standby.
2. NUMBER BUTTONS
switches the set on from standby and selects a programme.
3. LIST
displays the programme table.
4. PSM (Picture Status Memory)
recalls your preferred picture setting.
5. MUTE
switches the sound on or off.
Press the MUTE button. The sound is switched off and the dis-
play appears.
You can cancel it by pressing the MUTE,
FF
/
GG
, I/II,orSSM button.
6.
DD
/
EE
(Programme Up/Down)
selects a programme or a menu item.
switches the set on from standby.
FF
/
GG
(Volume Down/Up)
adjusts the volume.
adjusts menu settings.
OK
accepts your selection or displays the current mode.
7. MENU
selects a menu.
8. SLEEP
sets the sleep timer.
123
456
879
0
OK
LIST
MUTE
VOL
HOLD SIZE MIX TIME
REVEAL MODE
UPDATE
INDEX
VOL
PR
PR
TEXT
PSM SSM
Q.VIEW
POWER
TV INPUT
M
ENU
SLEEP
I/II
*
?
i
M
3
4
5
6
7
8
1
2
