13
ENGLISH
Installation Menu

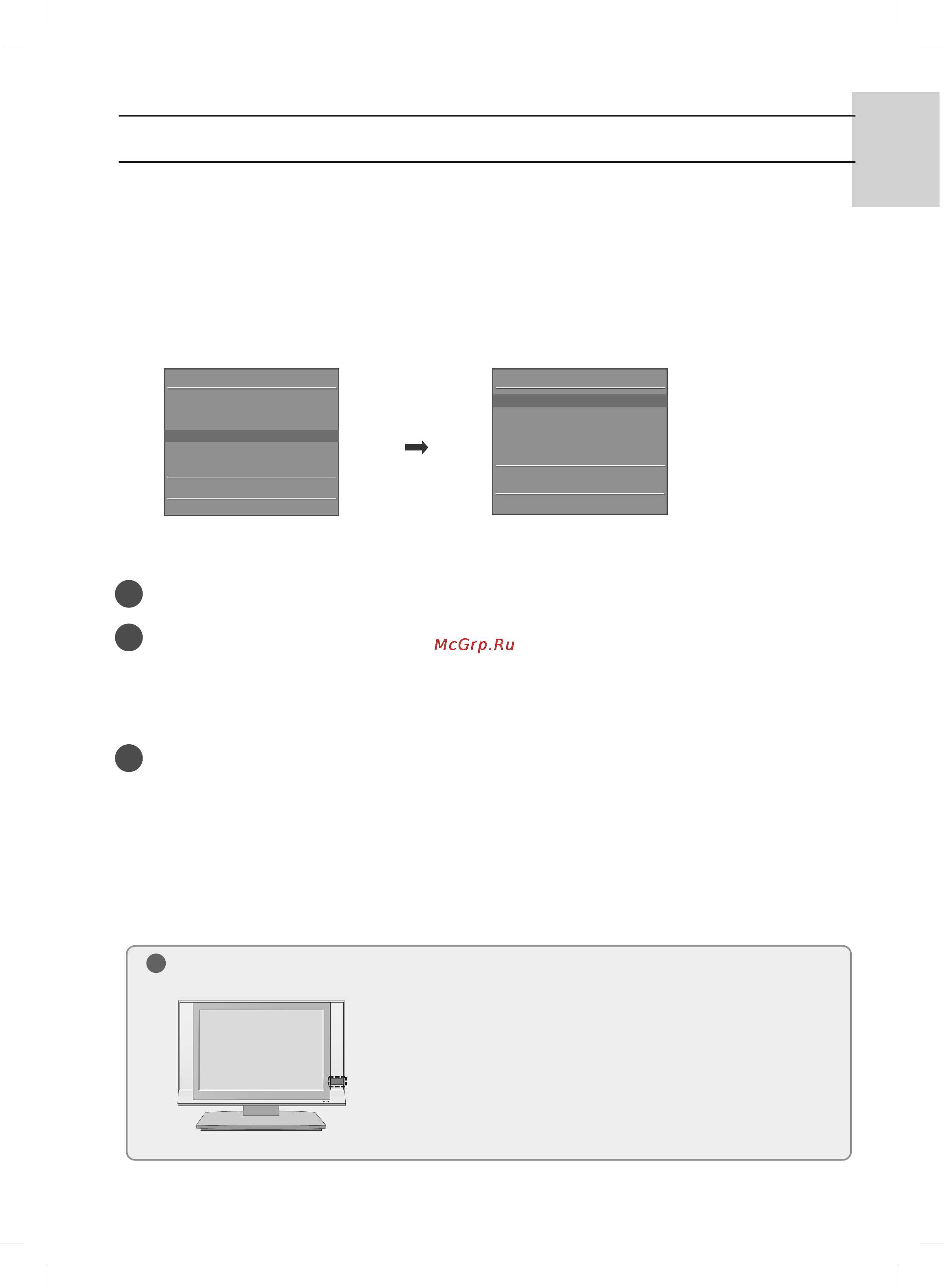

Clock Setup
- To elaborate indoor condition in hotel rooms. The indicating luminous LED Clock helps guests to figure out
time without turning on TV. Moreover, the level of luminance of LED Clock is adjustable according to each
circumstances.
Press the
DD
//
EE
button to select the Clock Display.
You can select
‘‘YYEESS’’
or
‘‘NNOO’’
by pressing
GG
button.
• After selecting
‘‘YYEESS’’
, you can adjust sub menu.
-
SSttaannddbbyy DDiimmmmiinngg vvaalluuee
Range: 0~99
-
PPoowweerroonn DDiimmmmiinngg vvaalluuee
Range: 0~99
PR. for TTX Clock.
You can adjust the Program to take clock information from Teletext when the AC Power is on.
The default value is OFF. When the power is off. When you install in the Hotel you can adjust the
Program according to the Hotel system.
The indication of Front Clock LED Display is selectable.
NOTE
!
Clock Setup
Clock Version 1.7
Clock Display NO
Dimming Standby 30
Dimming PowerOn 70
Pr. for TTX Clock OFF
1
2
3
Installation Menu V2.0
MCU Version 2.02
LG Hotel Mode Setup
GG
TV Link-Loader
GG
Password Change
GG
Set ID Setup
GG
Clock Setup
GG
Configuration Setup
GG
MENU
DE G
OK
DE F G
OK MENU
