8

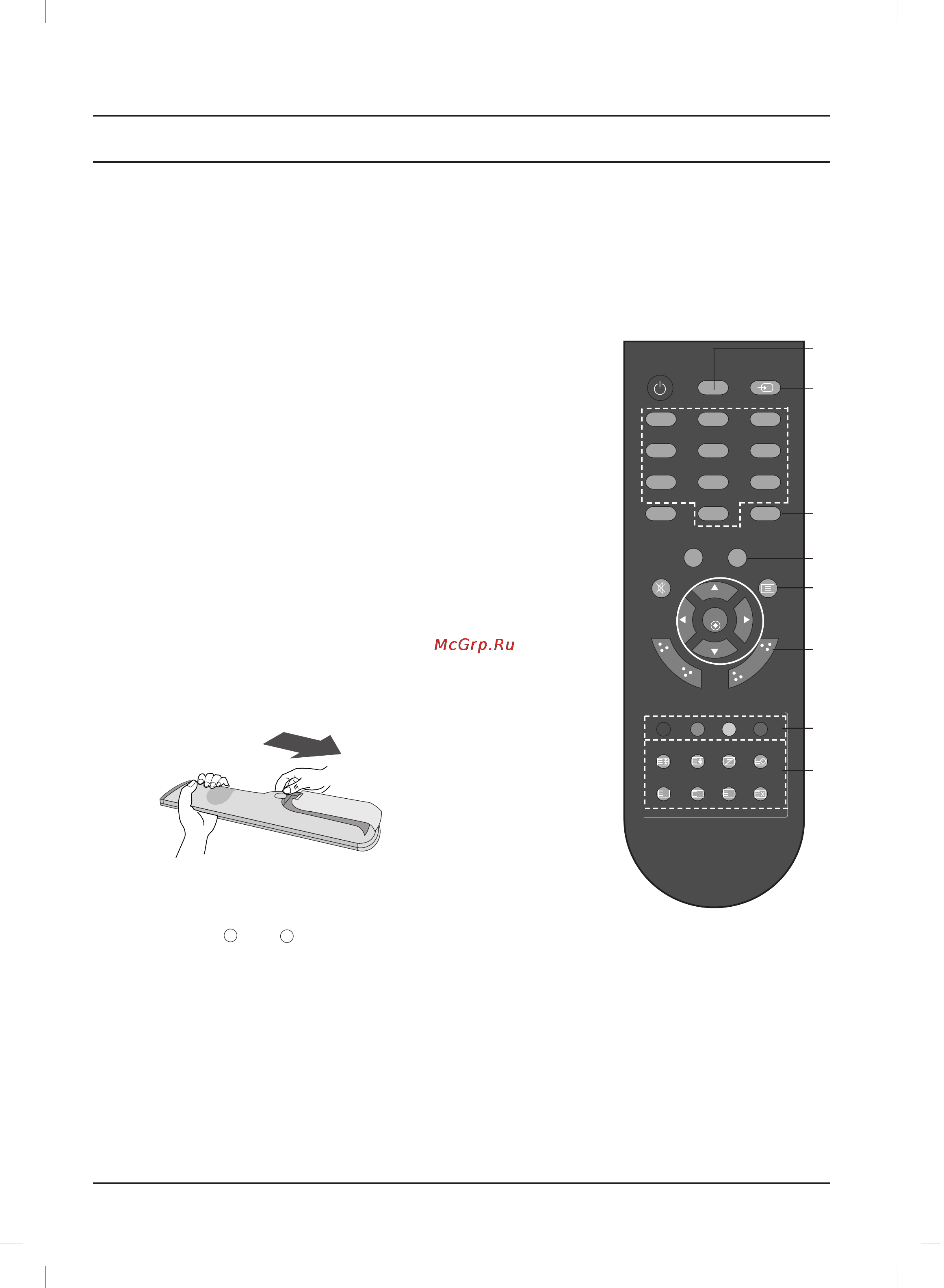

Location and function of controls
9. TV
returns to the TV mode.
switches the set on from standby.
10. INPUT
selects the remote operating mode.
switches the set on from standby.
11. Q.VIEW
returns to the previously viewed programme.
Press the Q.VIEW button to view the last programme you were
watching.
12. SSM (Sound Status Memory)
recalls your preferred sound setting.
13. TELETEXT BUTTONS
These buttons are used for teletext.
For further details, see the ‘Teletext’ section.
14. I/II
selects the language during dual language broadcast.
15. COLOURED BUTTONS : These buttons are used for teletext
(only TELETEXT models) or programme edit.
*
: No function
Battery installation
Note : To avoid damage from possible battery leakage, remove the
batteries if you do not plan to use the remote control handset for an
extended period of time.
The remote control handset is powered by two AAA batteries. To
load the batteries, turn the remote control handset over and open
the battery compartment. Install two batteries as indicated by the
polarity symbols ( and ) marked inside the compartment.
+
-
123
456
879
0
OK
LIST
MUTE
VOL
HOLD SIZE MIX TIME
REVEAL MODE
UPDATE
INDEX
VOL
PR
PR
TEXT
PSM SSM
Q.VIEW
POWER
TV INPUT
MENU
SLEEP
I/II
*
?
i
M
10
12
13
14
9
11
15
13
