32

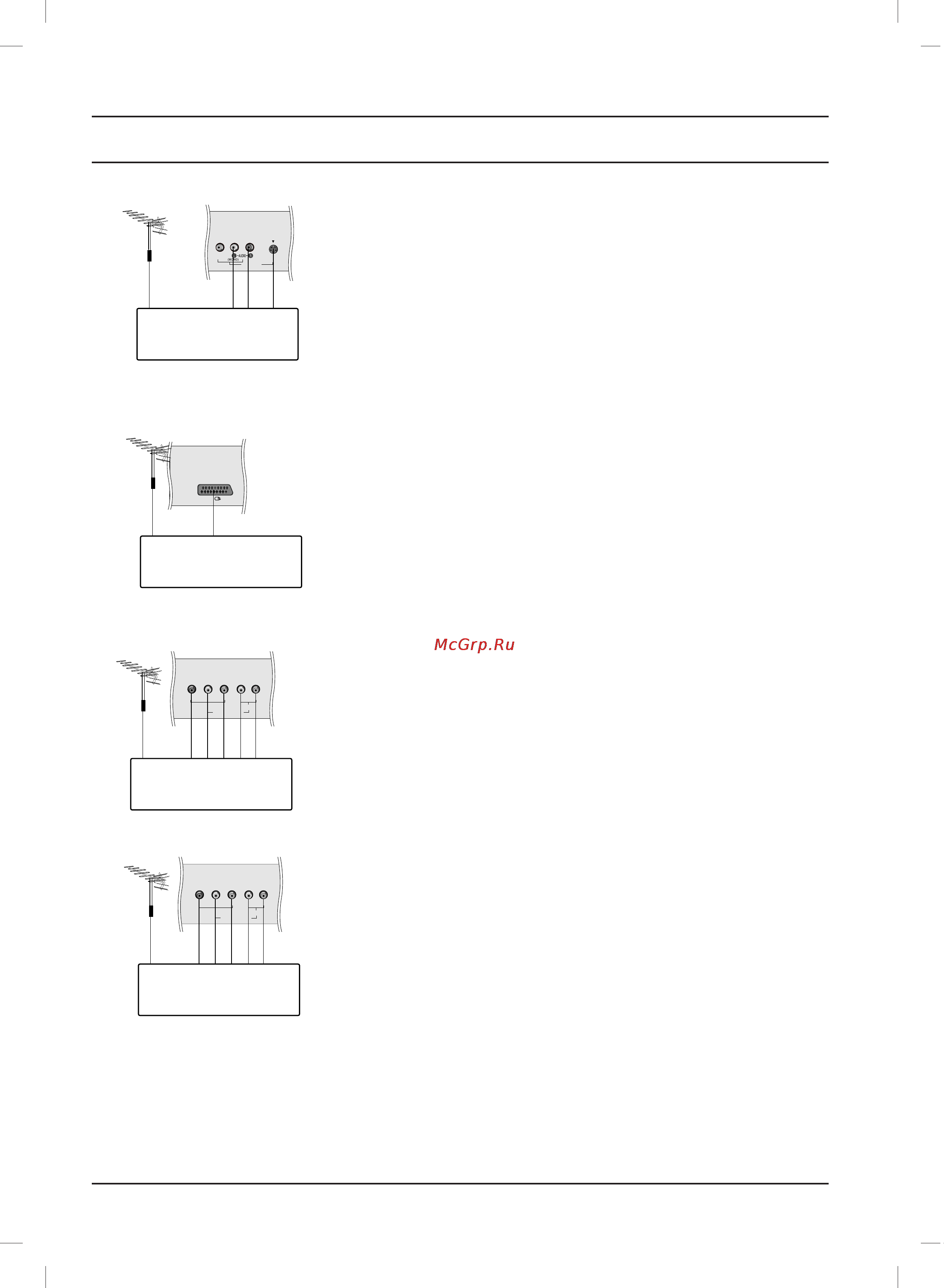

Connection of external equipment
S-Video/Audio in sockets (S-Video)
When connecting an S-VIDEO VCR to the S-VIDEO socket, the
picture quality will be further improved.
1. Connect the S-Video socket of the VCR to the S-VIDEO socket
of the set.
2. Connect the audio cable from the S-VIDEO VCR to the AUDIO
sockets of the set.
3. Press the INPUT button to select AV 2.
4. Press the PLAY button on the VCR.
The VCR playback picture appears on the screen.
DVD input sockets
Euro scart socket
1. Connect the Euro scart socket of the DVD to the Euro scart
socket of the set.
2. Press the INPUT button to select AV1.
3. Press the PLAY button on the DVD.
The DVD playback picture appears on the screen.
AV 1
S-VIDEO
AV IN 2
RGB(PC/DTV) IN
ANTENNA IN
VIDEO
DVD
YPB PR LR
VIDEO
COMPONENT IN
AUDIO
DVD
DTV Reciever
YPB PR LR
VIDEO
COMPONENT IN
AUDIO
S-VIDEO
AV IN 2
VIDEO
S-VIDEO VCR
