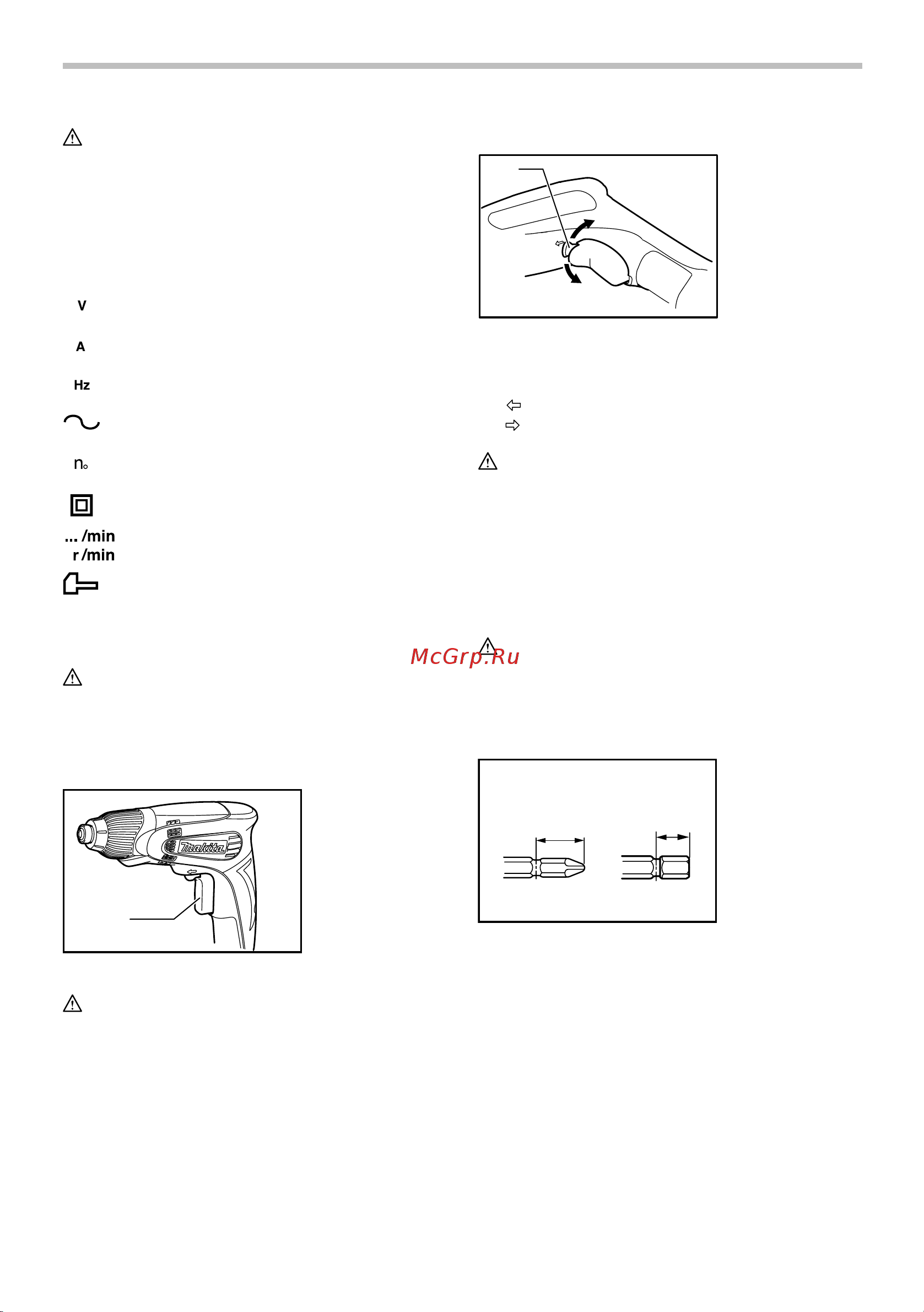

![Makita TD0100 [4/20] Assembly](/views2/1632049/page4/bg4.png)
4
WARNING:
MISUSE or failure to follow the safety rules stated in
this instruction manual may cause serious personal
injury.
USD202-2
Symbols
The followings show the symbols used for tool.
･ volts
･ amperes
･ hertz
･ alternating current
･ no load speed
･ Class II Construction
･ revolutions or reciprocation per minute
･ number of blow
FUNCTIONAL DESCRIPTION
CAUTION:
• Always be sure that the tool is switched off and
unplugged before adjusting or checking function on
the tool.
Switch action
1
009615
CAUTION:
• Before plugging in the tool, always check to see
that the switch trigger actuates properly and
returns to the "OFF" position when released.
To start the tool, simply pull the switch trigger. Tool
speed is increased by increasing pressure on the switch
trigger. Release the switch trigger to stop.
Holding the tool
When performing an operation. Do not touch the metal
part.
Reversing switch action
A
B
1
009616
This tool has a reversing switch to change the direction
of rotation. Move the reversing switch lever to
the
position (A side) for clockwise rotation or
the
position (B side) for counterclockwise rotation.
CAUTION:
• Always check the direction of rotation before
operation.
• Use the reversing switch only after the tool comes
to a complete stop. Changing the direction of
rotation before the tool stops may damage the tool.
ASSEMBLY
CAUTION:
• Always be sure that the tool is switched off and
unplugged before carrying out any work on the
tool.
Installing or removing driver bit or socket bit
12 mm
(15/32”)
9 mm
(3/8”)
001266
Use only bits that has inserting portion shown in the
figure. Do not use any other driver bit or socket bit.
1. To install the bit, pull the sleeve in the direction of
the arrow and insert the bit into the sleeve as far
as it will go. Then release the sleeve to secure the
bit.
1. Reversing
switch lever
1. Switch trigger
