5.3 Vertical AHU
Table 7 Basic dimensions of vertical AHUs

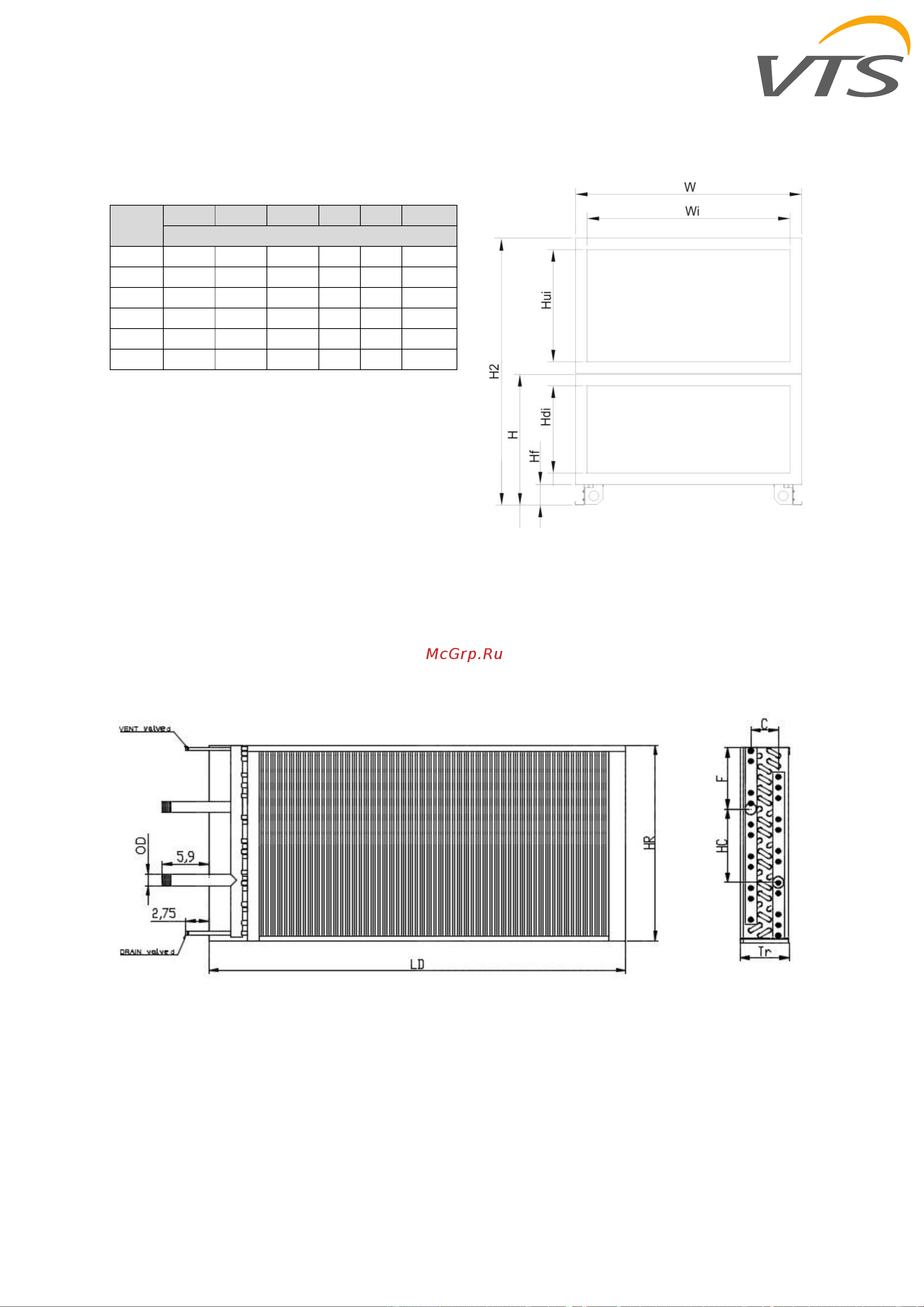

Fig. 11 Vertical AHU – AVS 8-40
5.4 AHU components connection
5.4.1 Hydronic coil exchangers
Fig. 12 Dimensions of hydronic coil exchangers AVS 8-170
Size
W
H2
Wi
Hdi
Hui
Hf
[in]
AVS 8
27,95
42,05
24,02
14,49
19,69
3,54
AVS 12
38,62
42,05
34,69
14,49
19,69
3,54
AVS 16
44,21
44,09
40,28
16,54
19,69
3,54
AVS 20
46,77
52,56
42,83
19,69
25,00
3,54
AVS 30
53,50
57,87
49,57
25,00
25,00
3,54
AVS 40
59,06
67,32
55,12
29,72
29,72
3,54
