Two-circuit (Two-section) DX coils

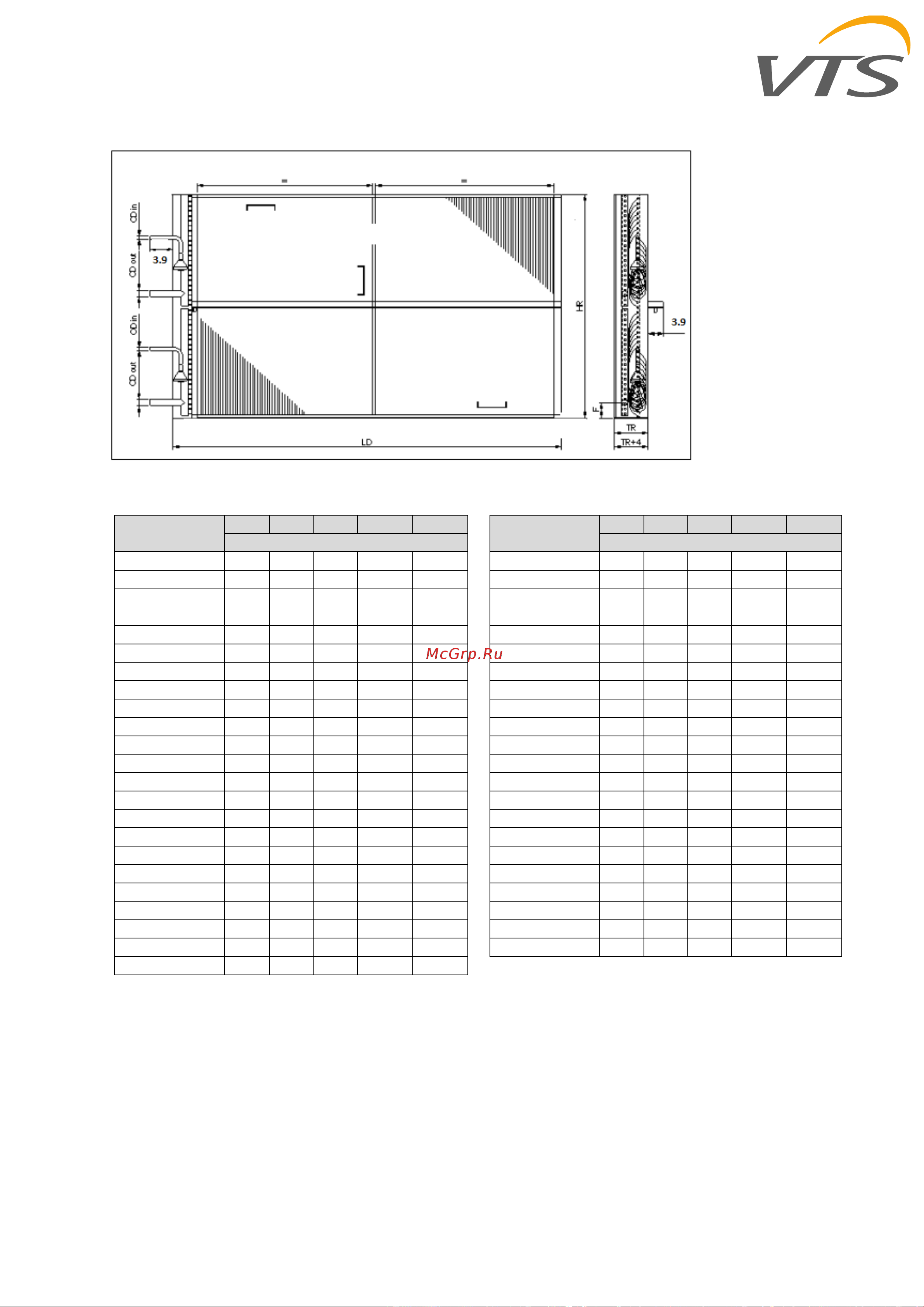

Fig. 15 Two-circuit (Two-section) DX coil drawing
Table 11 Two-circuit (Two-section) DX coil (Fig. 15)
Coil code
LD
HR
TR
ØD In
ØD out
Coil code
LD
HR
TR
ØD In
ØD out
[in]
[in]
AVS 16 DXH 6-2.
39,96
14,57
8,46
2x5/8''
2x1 1/8"
AVS 100 DXH 4-2.
78,62
44,76
7,09
2x7/8"
2x1 5/8"
AVS 20 DXH 4-2.
42,52
17,64
7,09
2x5/8''
2x1 1/8"
AVS 100 DXH 6-2.
78,62
44,76
9,84
2x7/8"
2x1 5/8"
AVS 20 DXH 6-2.
42,52
17,64
9,84
2x5/8''
2x1 1/8"
AVS 130 DXH 2-2.
94,69
44,76
5,71
2x7/8"
2x1 3/8"
AVS 30 DXH 3-2.
49,25
23,11
5,71
2x5/8''
2x1 1/8"
AVS 130 DXH 3-2.
94,69
44,76
5,71
2x7/8"
2x1 3/8"
AVS 30 DXH 4-2.
49,25
23,11
7,09
2x5/8''
2x1 1/8"
AVS 130 DXH 4-2.
94,69
44,76
8,46
2x7/8"
2x2 1/8"
AVS 30 DXH 6-2.
49,25
23,11
9,84
2x7/8"
2x1 3/8"
AVS 130 DXH 6-2.
94,69
44,76
11,22
2x1 1/8"
2x2 1/8"
AVS 40 DXH 3-2.
54,80
27,64
5,71
2x5/8''
2x1 1/8"
AVS 170 DXH 2-2.
98,31
56,73
5,71
2x7/8"
2x1 5/8"
AVS 40 DXH 4-2.
54,80
27,64
7,09
2x5/8''
2x1 1/8"
AVS 170 DXH 3-2.
98,31
56,73
5,71
2x7/8"
2x1 5/8"
AVS 40 DXH 6-2.
54,80
27,64
9,84
2x7/8"
2x1 1/8"
AVS 170 DXH 4-2.
98,31
56,73
8,46
2x7/8"
2x2 1/8"
AVS 55 DXH 2-2.
61,89
31,73
4,33
2x5/8''
2x1 1/8"
AVS 170 DXH 6-2.
98,31
56,73
11,22
2x1 1/8"
2x2 1/8"
AVS 55 DXH 3-2.
61,89
31,73
5,71
2x5/8''
2x1 1/8"
AVS 230 DXH 2-2.
117,99
65,47
5,71
2x7/8"
2x1 5/8"
AVS 55 DXH 4-2.
61,89
31,73
7,09
2x7/8"
2x1 1/8"
AVS 230 DXH 3-2.
117,99
65,47
5,71
2x1 1/8"
2x1 5/8"
AVS 55 DXH 6-2.
61,89
31,73
9,84
2x7/8"
2x1 3/8"
AVS 230 DXH 4-2.
117,99
65,47
8,46
2x1 1/8"
2x2 1/8"
AVS 65 DXH 2-2.
70,94
32,99
4,33
2x5/8''
2x1 1/8"
AVS 230 DXH 6-2.
117,99
65,47
11,22
2x1 3/8"
2x2 1/8"
AVS 65 DXH 3-2.
70,94
32,99
5,71
2x5/8''
2x1 1/8"
AVS 300 DXH 2-2.
137,68
65,20
5,71
2x1 1/8"
2x1 5/8"
AVS 65 DXH 4-2.
70,94
32,99
7,09
2x7/8"
2x1 1/8"
AVS 300 DXH 3-2.
137,68
65,20
7,09
2x1 1/8"
2x2 5/8"
AVS 65 DXH 6-2.
70,94
32,99
9,84
2x7/8"
2x1 3/8"
AVS 300 DXH 4-2.
137,68
65,20
8,46
2x1 3/8"
2x2 1/8"
AVS 85 DXH 2-2.
78,62
36,89
4,33
2x5/8''
2x1 1/8"
AVS 300 DXH 6-2.
137,68
65,20
11,22
2x1 3/8"
2x3 1/8"
AVS 85 DXH 3-2.
78,62
36,89
5,71
2x7/8"
2x1 3/8"
AVS 380 DXH 2-2.
142,09
83,98
5,71
2x7/8"
2x1 5/8"
AVS 85 DXH 4-2.
78,62
36,89
7,09
2x7/8"
2x1 3/8"
AVS 380 DXH 3-2.
142,09
83,98
7,09
2x1 3/8"
2x2 5/8"
AVS 85 DXH 6-2.
78,62
36,89
9,84
2x7/8"
2x1 5/8"
AVS 380 DXH 4-2.
142,09
83,98
8,46
2x1 3/8"
2x3 1/8"
AVS 100 DXH 2-2.
78,62
44,76
5,71
2x7/8"
2x1 3/8"
AVS 380 DXH 6-2.
142,09
83,98
11,22
2x1 5/8"
2x3 1/8"
AVS 100 DXH 3-2.
78,62
44,76
5,71
2x7/8"
2x1 1/8"
