TUF GAMING Z790-PLUS D4
1-21
Chapter 1

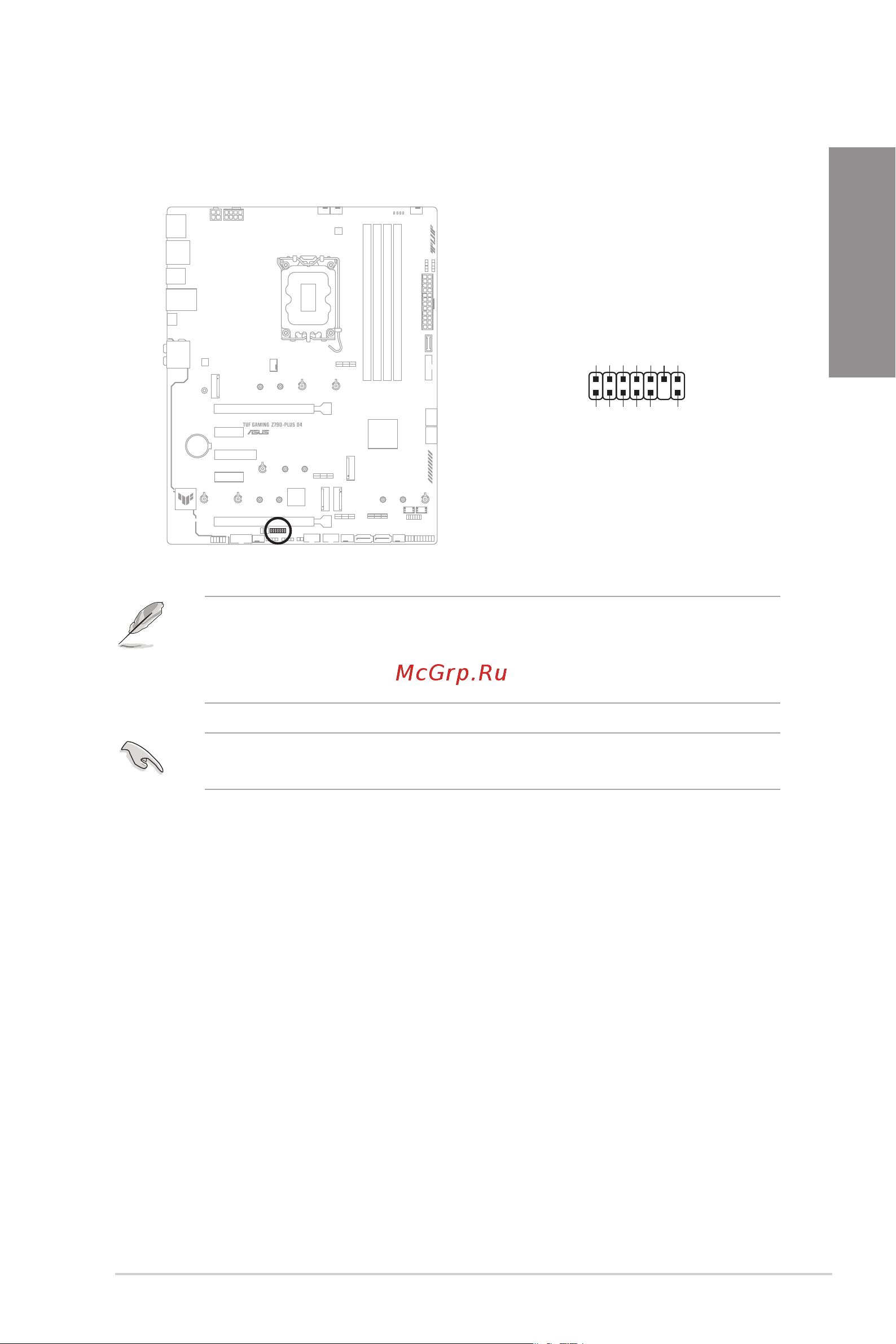

17. Thunderbolt™ header
The Thunderbolt™ header allows you to connect an add-on Thunderbolt™ I/O
card that supports Intel®’s Thunderbolt™ Technology, allowing you to connect
Thunderbolt™-enabled devices to form a daisy-chain configuration.
PIN 1
FORCE_PWR
TB_CIO_PLUG_EVENT
SLP_S3#
SLP_S5#
GND
RTD3_SW
I2C_SCL
I2C_SDA
I2C_IRQ#
RTD3_POWER_EN
SLP_S0_PLT_N_10
PERST_N
WAKE#
TB_HEADER
• The add-on Thunderbolt™ I/O card and Thunderbolt™ cables are purchased
separately.
• Please visit the official website of your purchased Thunderbolt™ card for more details
on compatibility.
The Thunderbolt™ card can only be used when installed to the PCIEX16(G4) slot. Ensure
to install your Thunderbolt™ card to the PCIEX16(G4) slot.
