Asus TUF GAMING Z790-PLUS D4 [43/70] Chapter 2

TUF GAMING Z790-PLUS D4

2-11

Chapter 2

OPTIONAL

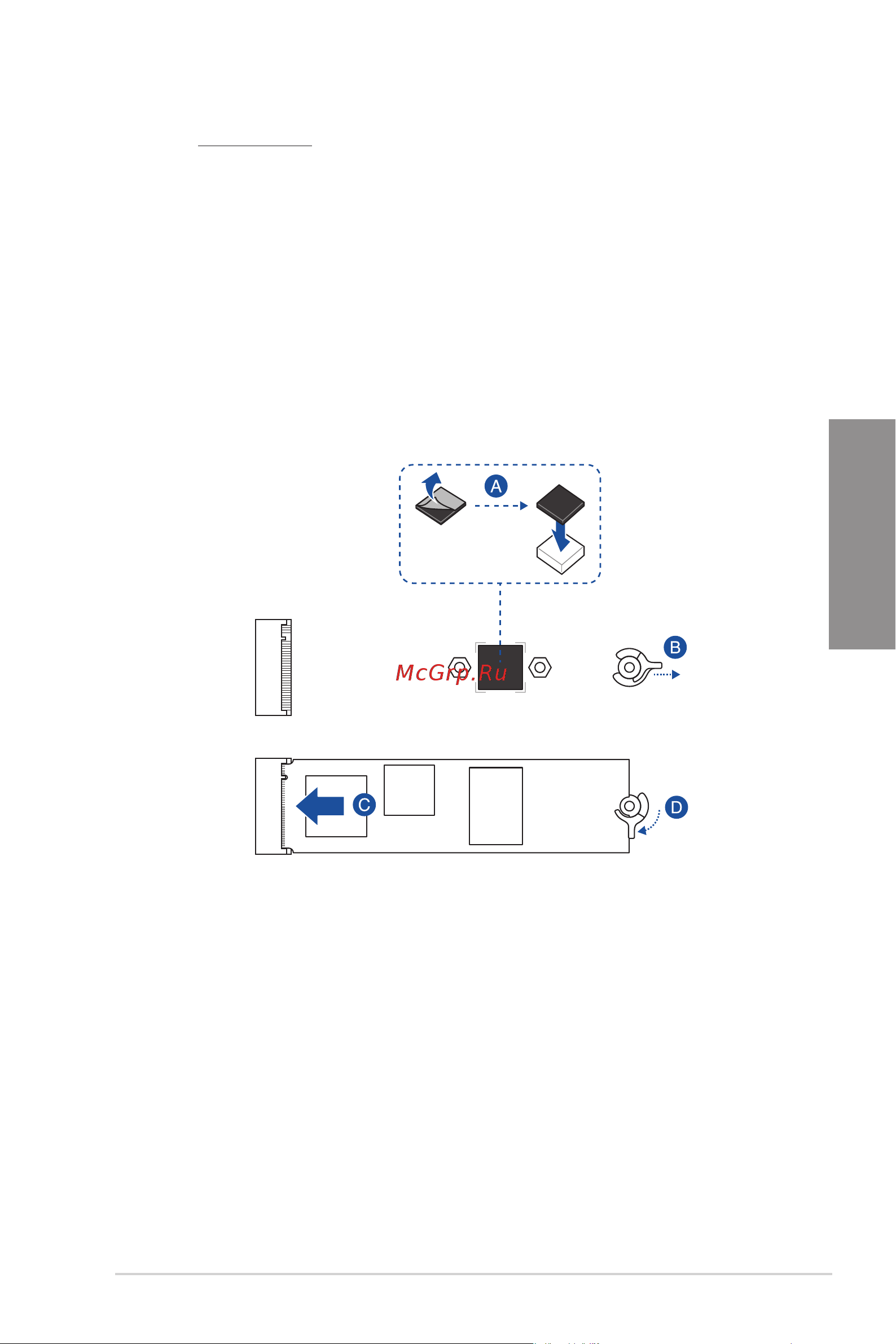

• To install an M.2 to M.2_4 slot

For 2280 length

A. (optional) Install the bundled M.2 rubber pad if you are installing a single

sided M.2 storage device. DO NOT install the bundled M.2 rubber pads

when installing a double-sided M.2 storage device. The rubber pad

installed by default is compatible with double sided M.2 storage devices.

B. Rotate and adjust the M.2 Q-latch so that the handle points away from the

M.2 slot.

C. Install your M.2 to the M.2 slot.

D. Rotate the M.2 Q-Latch clockwise to secure the M.2 in place.
