Asus TUF GAMING Z790-PLUS D4 [44/70] Chapter 2

2-12

Chapter 2: Basic Installation

Chapter 2

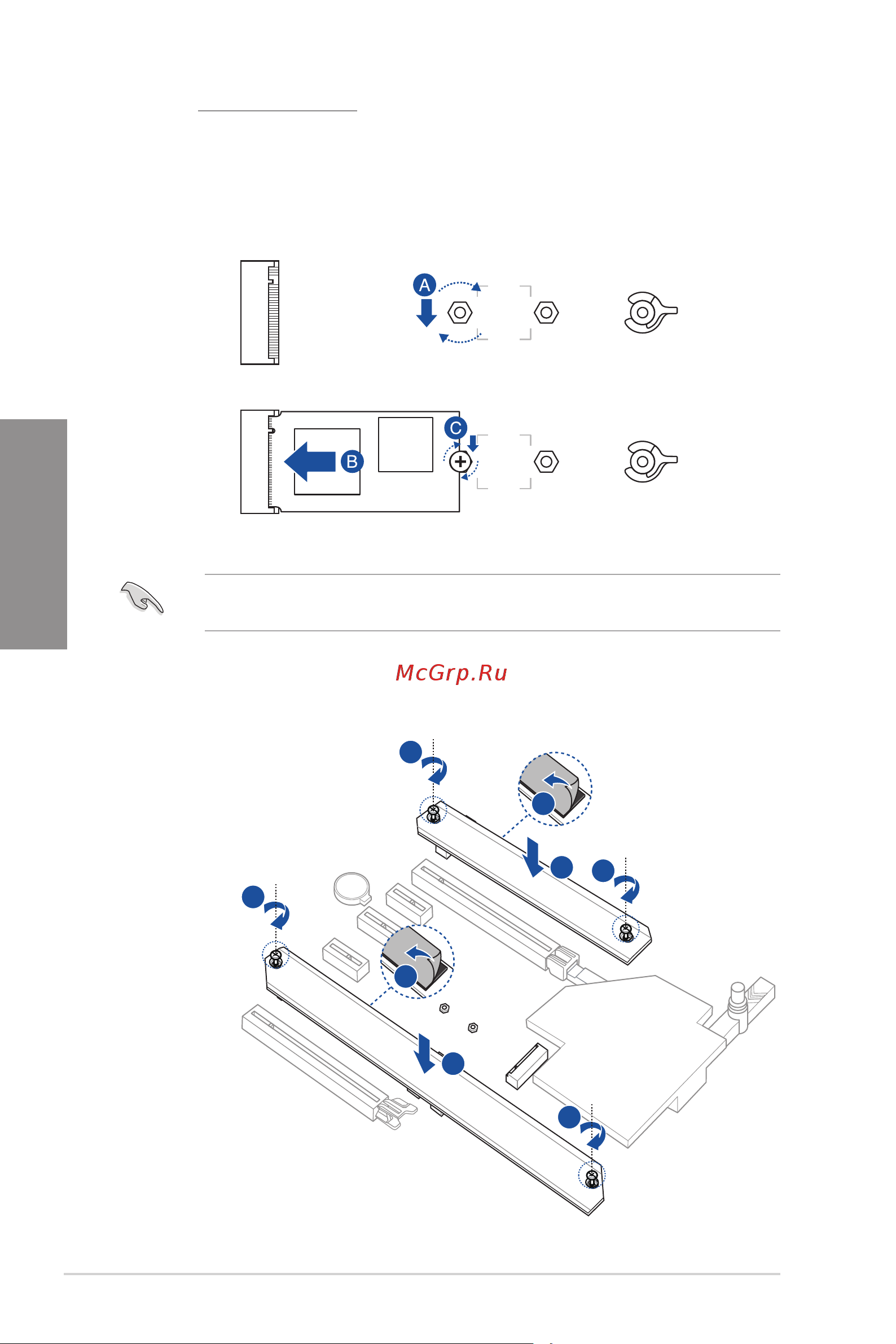

For 2242, 2260 length

A. Install the bundled screw stand to the M.2 length screw hole you wish to

install your M.2 to.

B. Install your M.2 to the M.2 slot.

C. Secure your M.2 using the bundled screw stand’s screw.

4. Remove the plastic film from the thermal pads on the bottom of the heatsinks.

If the thermal pad on the M.2 heatsink becomes damaged, we recommend replacing it

with a thermal pad with a thickness of 1.25mm.

5. Replace the heatsinks.

6. Secure the heatsinks using the screws on the heatsink.
