Asus ROG Zenith II Extreme [30/112] Chapter 1

1-14

Chapter 1: Product Introduction

Chapter 1

1.8 Onboard jumpers

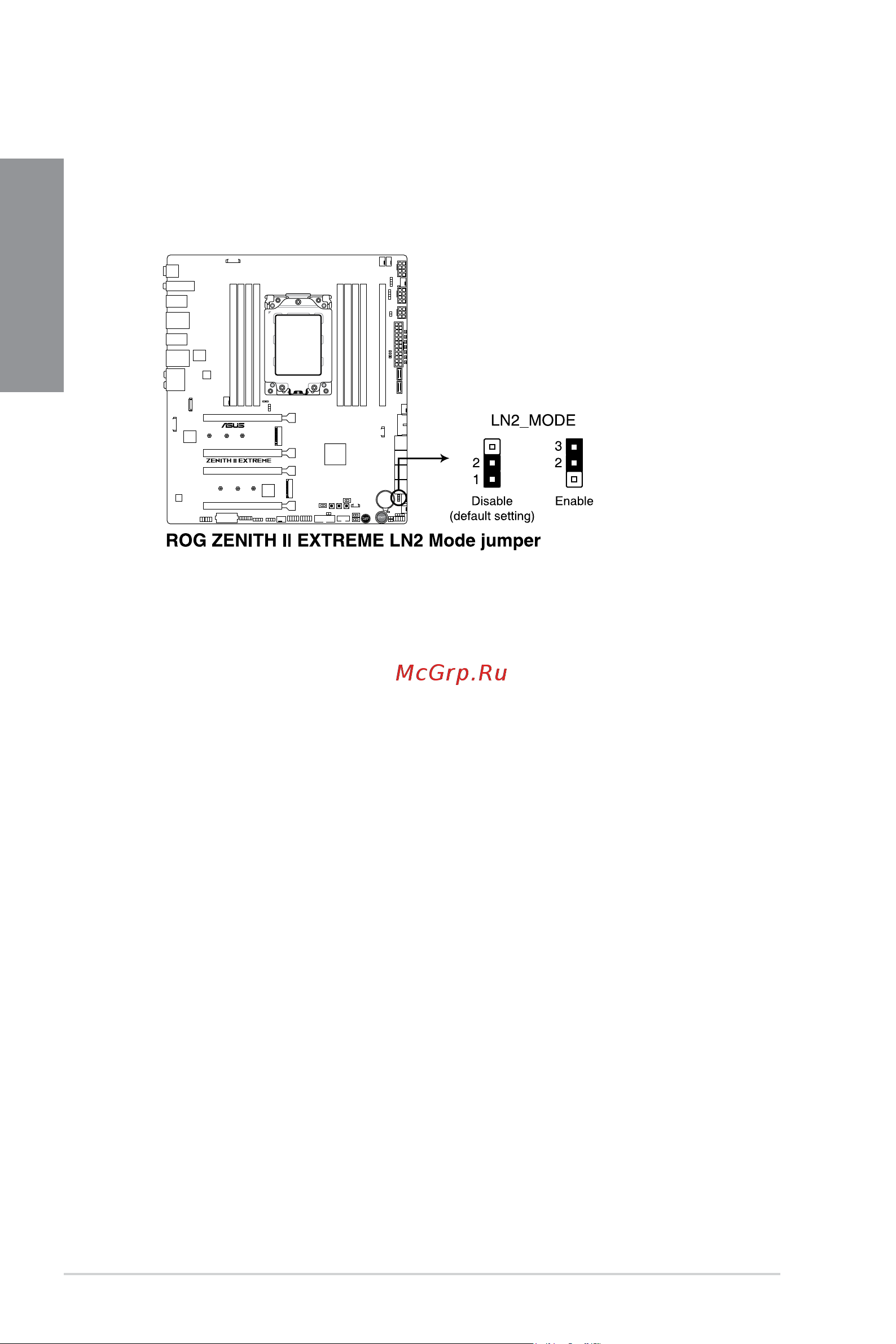

1. LN2 Mode jumper

Set to pins 1-2 to optimize the motherboard to remedy the cold-boot bug during POST

and help the system boot successfully.
