Asus ROG Zenith II Extreme [37/112] Chapter 1

ROG ZENITH II EXTREME

1-21

Chapter 1

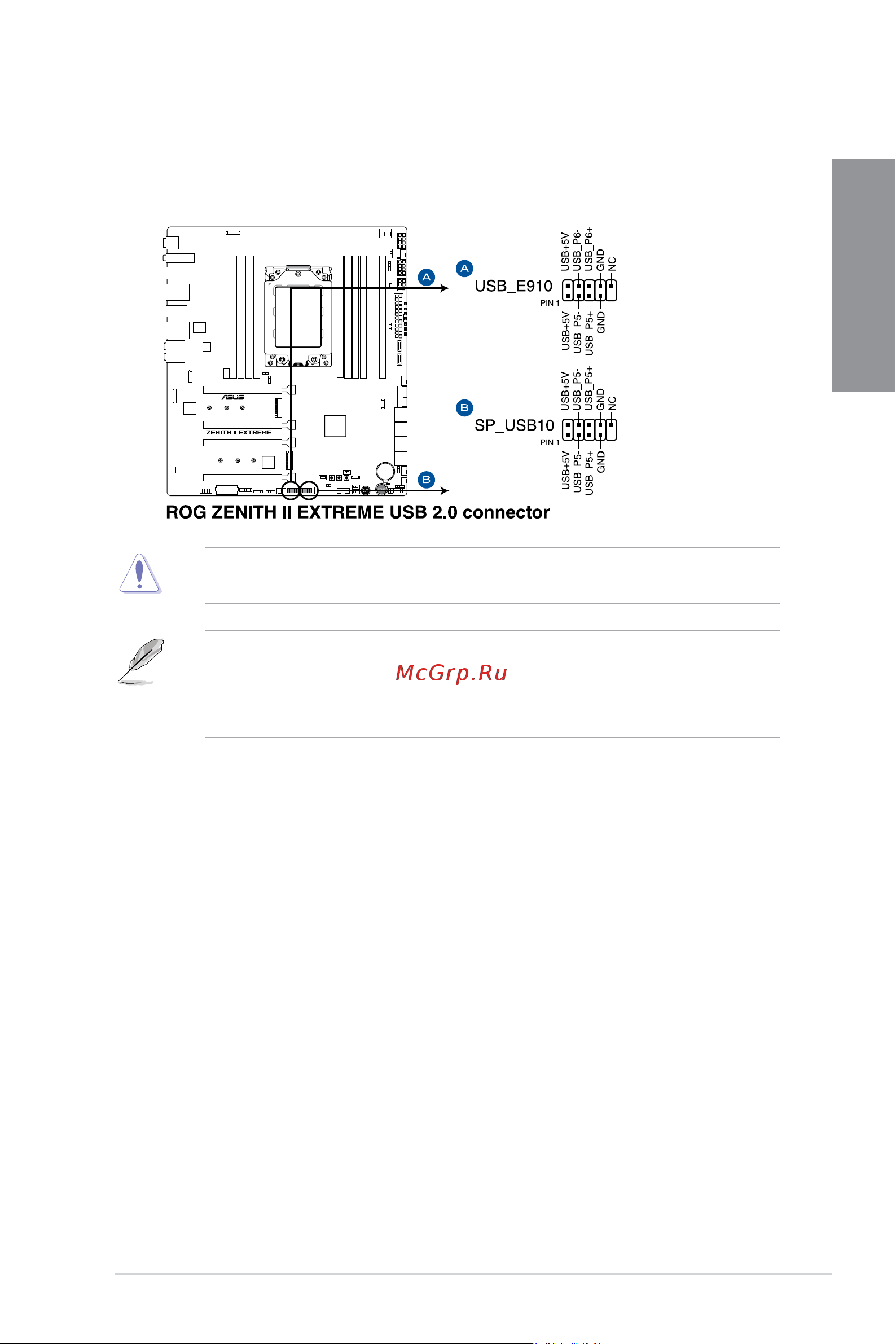

7. USB 2.0 connector

The USB 2.0 connector allows you to connect a USB module for additional USB

2.0 ports. The USB 2.0 connector provides data transfer speeds of up to 480 MB/s

connection speed.

DO NOT connect a 1394 cable to the USB connectors. Doing so will damage the

motherboard!

• The SP_USB10 connector only supports single port USB 2.0 devices, we

recommend you connect a single port device to this connector, and connect the

chassis front panel USB 2.0 to the USB_E910 connector.

• The USB 2.0 module is purchased separately.
