Asus ROG Zenith II Extreme [38/112] Chapter 1

1-22

Chapter 1: Product Introduction

Chapter 1

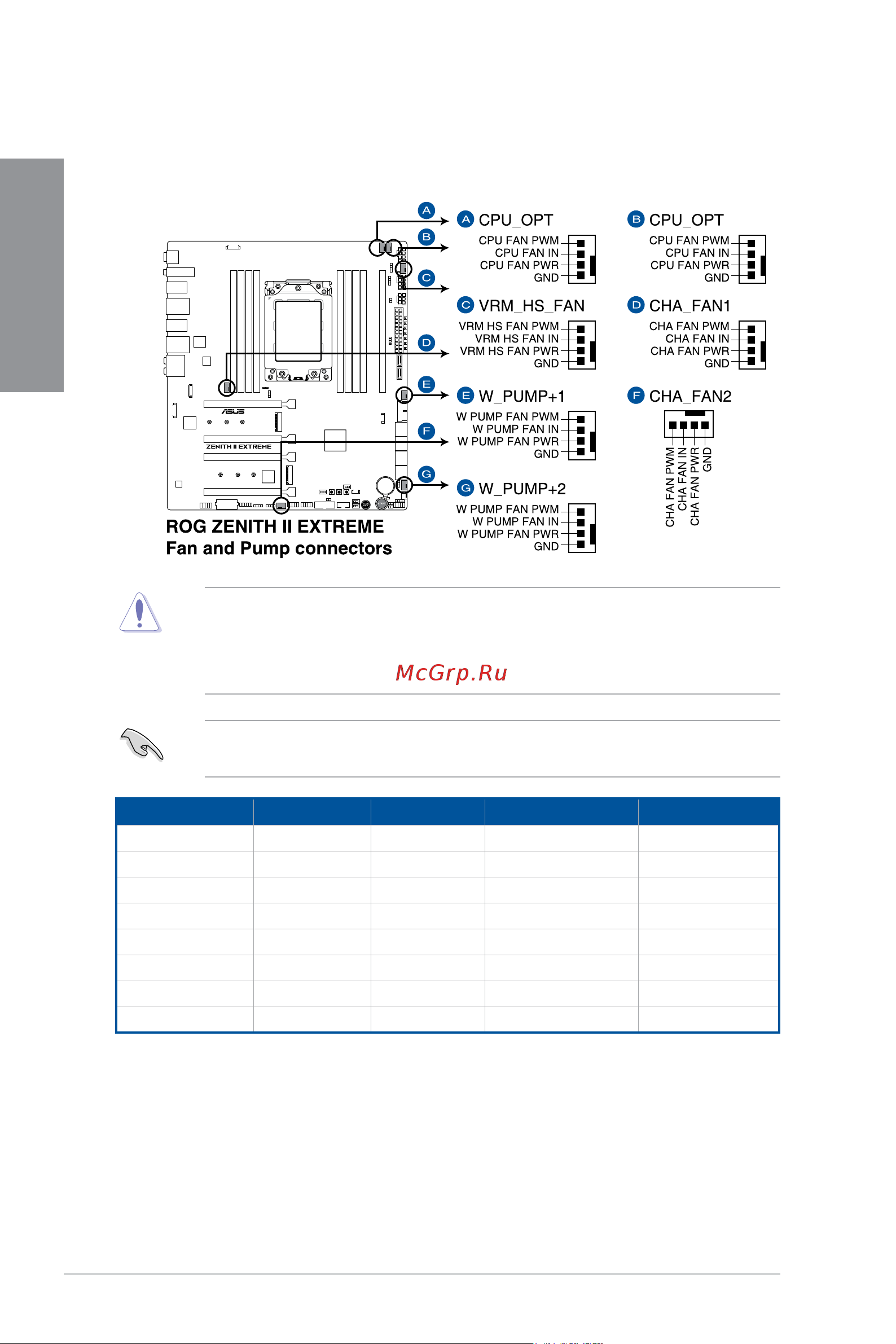

8. Fan and Pump connectors

The Fan and Pump connectors allow you to connect fans or pumps to cool the

system.

• DO NOT forget to connect the fan cables to the fan connectors. Insufficient air

flow inside the system may damage the motherboard components. These are not

jumpers! Do not place jumper caps on the fan connectors!

• Ensure the cable is fully inserted into the connector.

For water cooling kits, connect the pump connector to the W_PUMP+1 or W_PUMP+2

connector, then connect the fan connectors to the CPU_FAN and CPU_OPT connectors.

Header Max. Current Max. Power Default Speed Shared Control

CPU_FAN 1A 12W Q-Fan Controlled A

CPU_OPT 1A 12W Q-Fan Controlled A

CHA_FAN1 1A 12W Q-Fan Controlled -

CHA_FAN2 1A 12W Q-Fan Controlled -

VRM_HS_FAN 1A 12W Q-Fan Controlled -

CHIPSET_FAN 1A 12W Q-Fan Controlled -

W_PUMP+1 3A 36W Full-Speed -

W_PUMP+2 3A 36W Full-Speed -
