CONTROLS

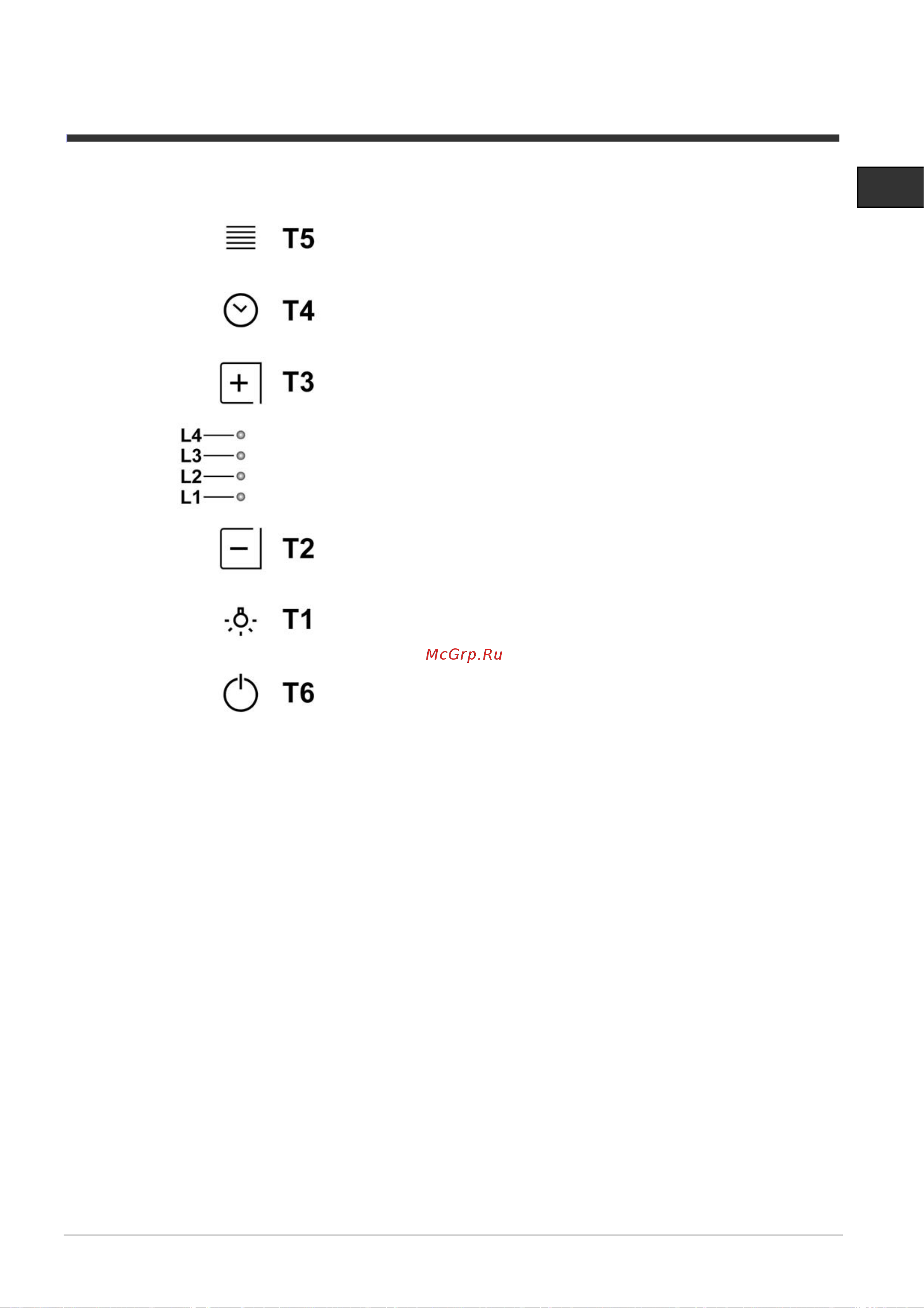

To select the functions of the hood just touch the commands.
T1. Lights ON/OFF
T2. Speed decrease
Press "T2" button to decrease the speed from 4 (intensive) to 1.
Press "T2" button during operation at speed 1, the hood sets to OFF.
T3. Speed increase
Press T3 button and the hood sets from OFF to speed 1.
Press the button (hood is ON) to increase the the speed of the motor from
speed 1 to the intensive speed (timed).
Speed 1 LED L1
Speed 2 LED L1+L2
Speed 3 LED L1+L2+L3
Intensive speed (timed) LED L1+L2+L3+L4 flashing
Note: Speed 4 (intensive timed) remains activated for 5 minutes, after
which the hood sets speed 2 automatically
T4. Speed timing
Speed timing is activated by pressing T4 button, when timing is up the hood
switches off.
Timing is divided as follows:
Speed 1 - 20 minutes (LED L1 flashing)
Speed 2 - 15 minutes (LED L2 flashing)
Speed 3 - 10 minutes (LED L3 flashing)
Intensive speed - 5 minuts (LED L4 flashing)
During timed operation press T2 button and the hood quits the timed mode
and decreases the speed.
Press T3 button and the hood quits the timed mode and increases the
speed.
Press T4 button and the hood quits the timed mode maintaining the set
speed.
T5. Filter saturation signal button – Control and Configuration:
See relevant instructions in the following paragraphs.
T6. ON/OFF Suction motor: When hood is on, it switches off at any speed by
pressing button T6.
When the hood is off, it switches on at Speed 1 by pressing button T6.
Grease filter signal
After 40 hours of operation LED L1 flashes.
When such signal appears, carry out grease filter maintenance.
To reset the signal, keep T5 button pressed for 5”. (hood is ON).
The hood gives out a "BEEP" and LED L1 stops flashing.
Charcoal filter signal
After 160 hours of operation LED L2 flashes.
When such signal appears, carry out charcoal filter maintenance.
To reset the signal, keep T5 button pressed for 5”. (hood is ON).
The hood gives out a "BEEP" and LED L2 stops flashing.
In case of contemporaneous signalling of both filters, LEDs L1 and L2 flash
alternatively.
To reset, carry out the procedure described above for 2 times.
The first time it resets the charcoal filter signal, the second time it resets the
grease filter signal.
The charcoal filter signal is not active in the standard mode.
In case the hood is used in filter version it is necessary to enable the charcoal
filter signal.
Activating charcoal filter signal:
Set the hood to OFF and press T5 button for 5”.
Once the button has been pressed, the LEDs related to the filter signals currently
active light up.
The hood gives out a "BEEP" and LED L2 flashes for 2".
LEDs L1 and
L2 remain on for about 2" before the hood goes back to OFF.
Deactivating charcoal filter signal:
Set the hood to OFF and press T5 button for 5”.
Once the button has been pressed, the LEDs related to the filter signals currently
active light up.
The hood gives out a "BEEP" and LED L2 switches off.
LED L1 remain on for about 2" before the hood goes back to OFF.
MAINTENANCE
ATTENTION! Before performing any maintenance operation, isolate the hood
from the electrical supply by switching off at the connector and removing the
connector fuse.
Or if the appliance has been connected through a plug and socket, then the plug
must be removed from the socket.
Cleaning
The cooker hood should be cleaned regularly (at least with the same frequency
with which you carry out maintenance of the fat filters) internally and externally.
Clean using the cloth dampened with neutral liquid detergent. Do not use
abrasive products. DO NOT USE ALCOHOL!
WARNING: Failure to carry out the basic cleaning recommendations of the
cooker hood and replacement of the filters may cause fire risks.
Therefore, we recommend oserving these instructions.
The manufacturer declines all responsibility for any damage to the motor or any
fire damage linked to inappropriate maintenance or failure to observe the above
safety recommendations.
