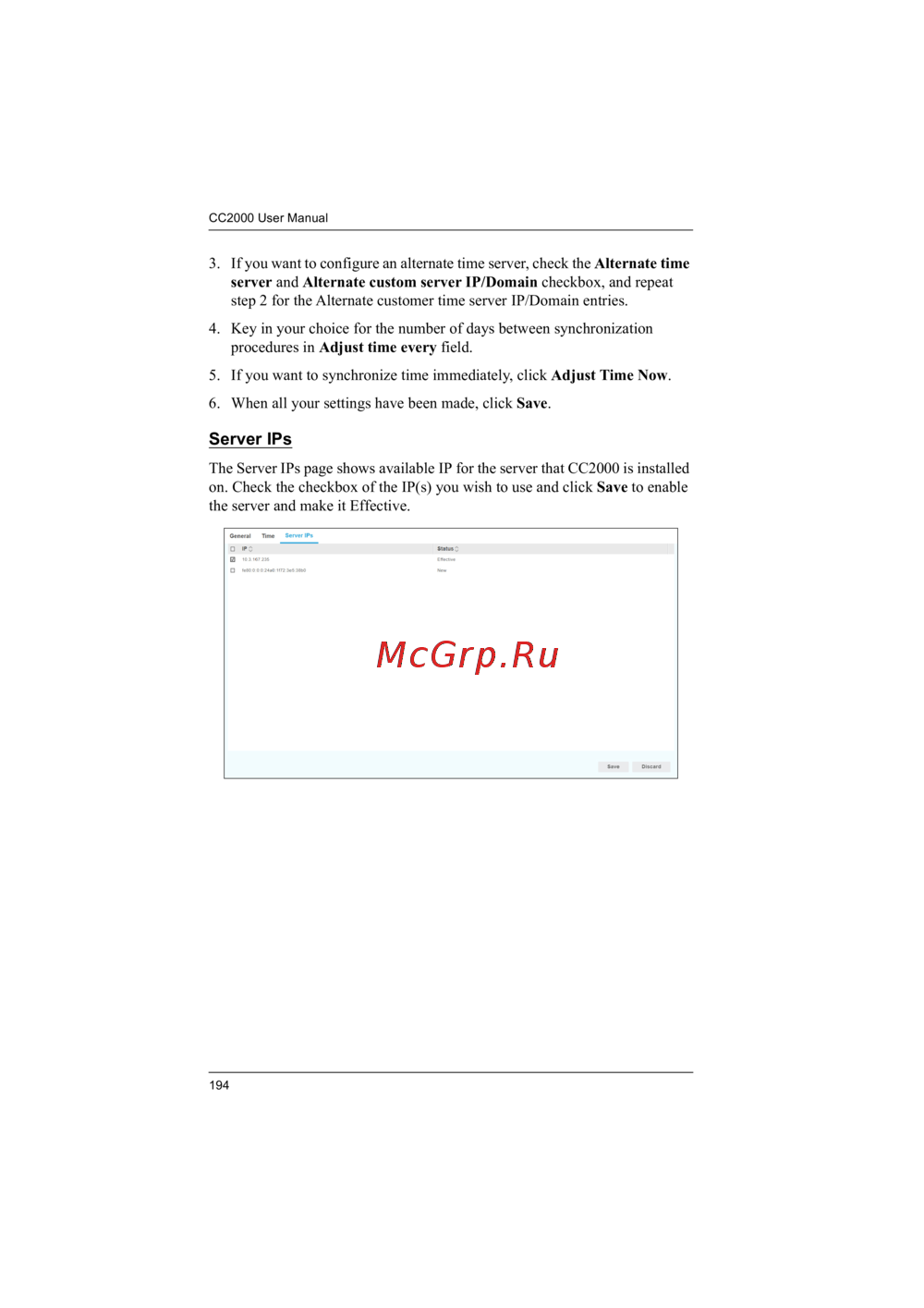

CC2000 User Manual

194

3. If you want to configure an alternate time server, check the Alternate time

server and Alternate custom server IP/Domain checkbox, and repeat

step 2 for the Alternate customer time server IP/Domain entries.

4. Key in your choice for the number of days between synchronization

procedures in Adjust time every field.

5. If you want to synchronize time immediately, click Adjust Time Now.

6. When all your settings have been made, click Save.

Server IPs

The Server IPs page shows available IP for the server that CC2000 is installed

on. Check the checkbox of the IP(s) you wish to use and click Save to enable

the server and make it Effective.
