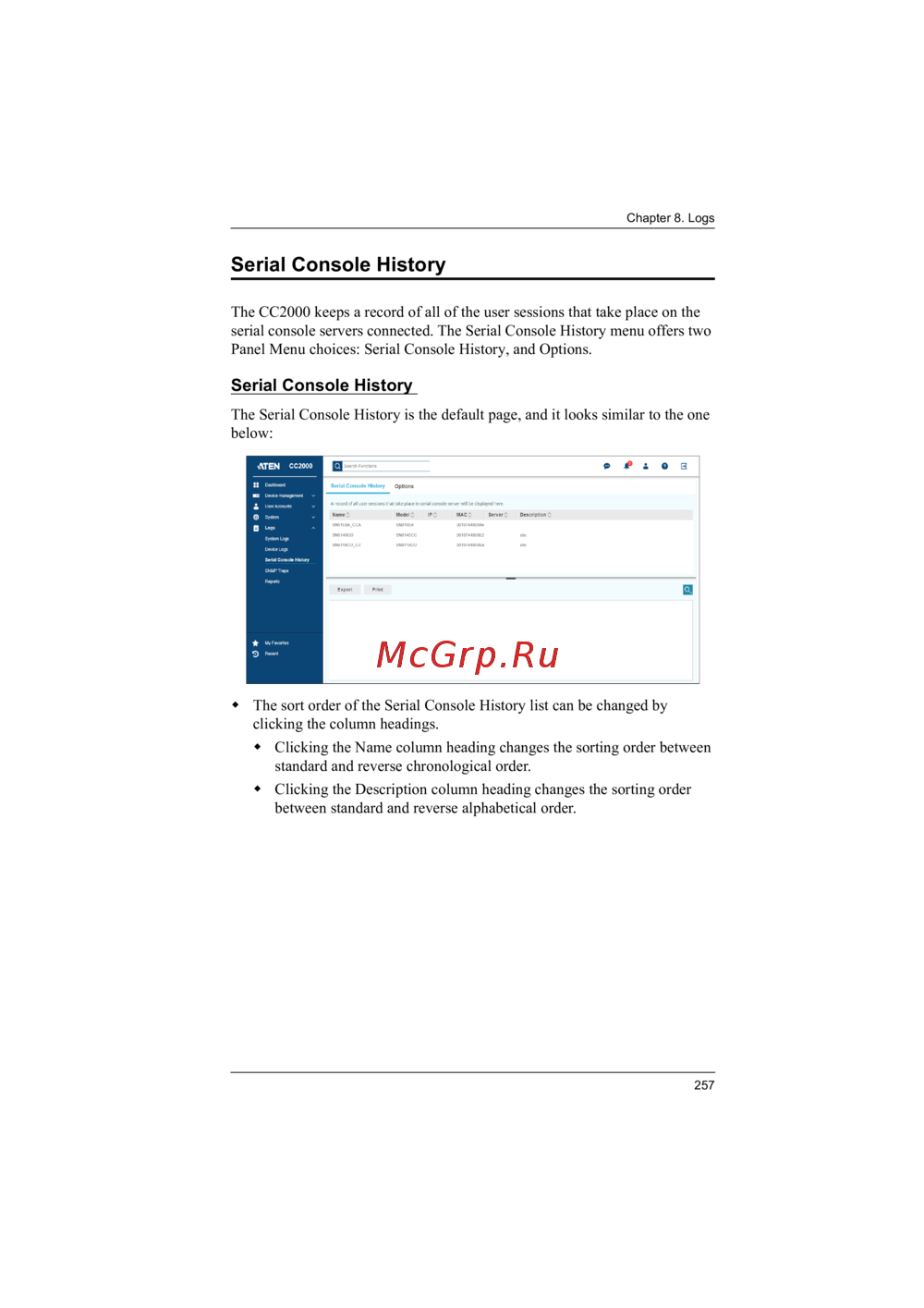

Aten CC2000 4.0 [271/371] Serial console history

Chapter 8. Logs

257

Serial Console History

The CC2000 keeps a record of all of the user sessions that take place on the

serial console servers connected. The Serial Console History menu offers two

Panel Menu choices: Serial Console History, and Options.

Serial Console History

The Serial Console History is the default page, and it looks similar to the one

below:

 The sort order of the Serial Console History list can be changed by

clicking the column headings.

 Clicking the Name column heading changes the sorting order between

standard and reverse chronological order.

 Clicking the Description column heading changes the sorting order

between standard and reverse alphabetical order.
