Chapter 1. Introduction
11

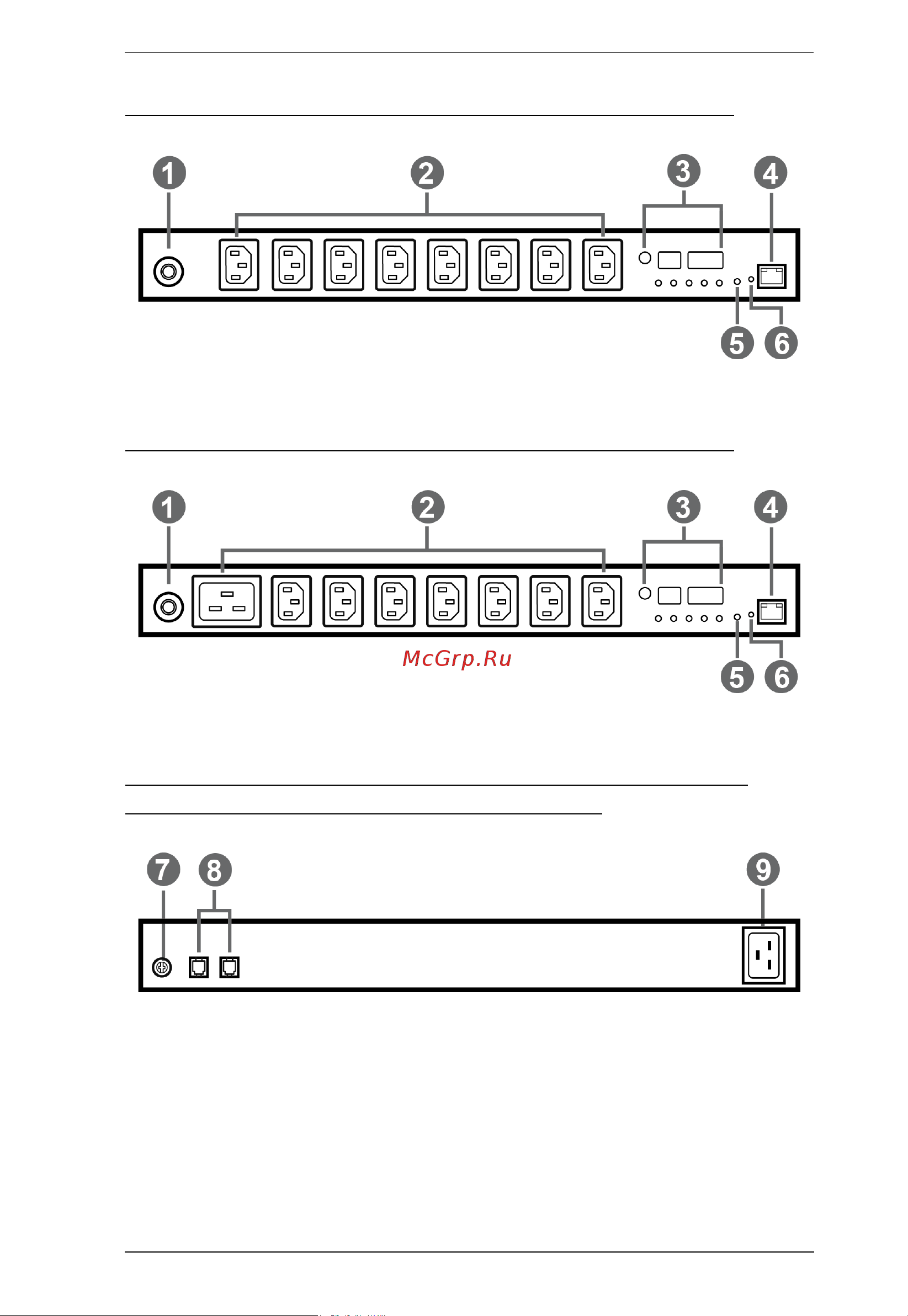

PE5108B / PE5108G / PE7108B / PE7108G Front View
PE5208B / PE5208G / PE7208B / PE7208G Front View
PE5108B / PE5108G / PE5208B / PE5208G / PE7108B /
PE7108G / PE7208B / PE7208G Rear View
