Aten PE6208 [48/94] Outlet status

eco PDU PE Series User Manual

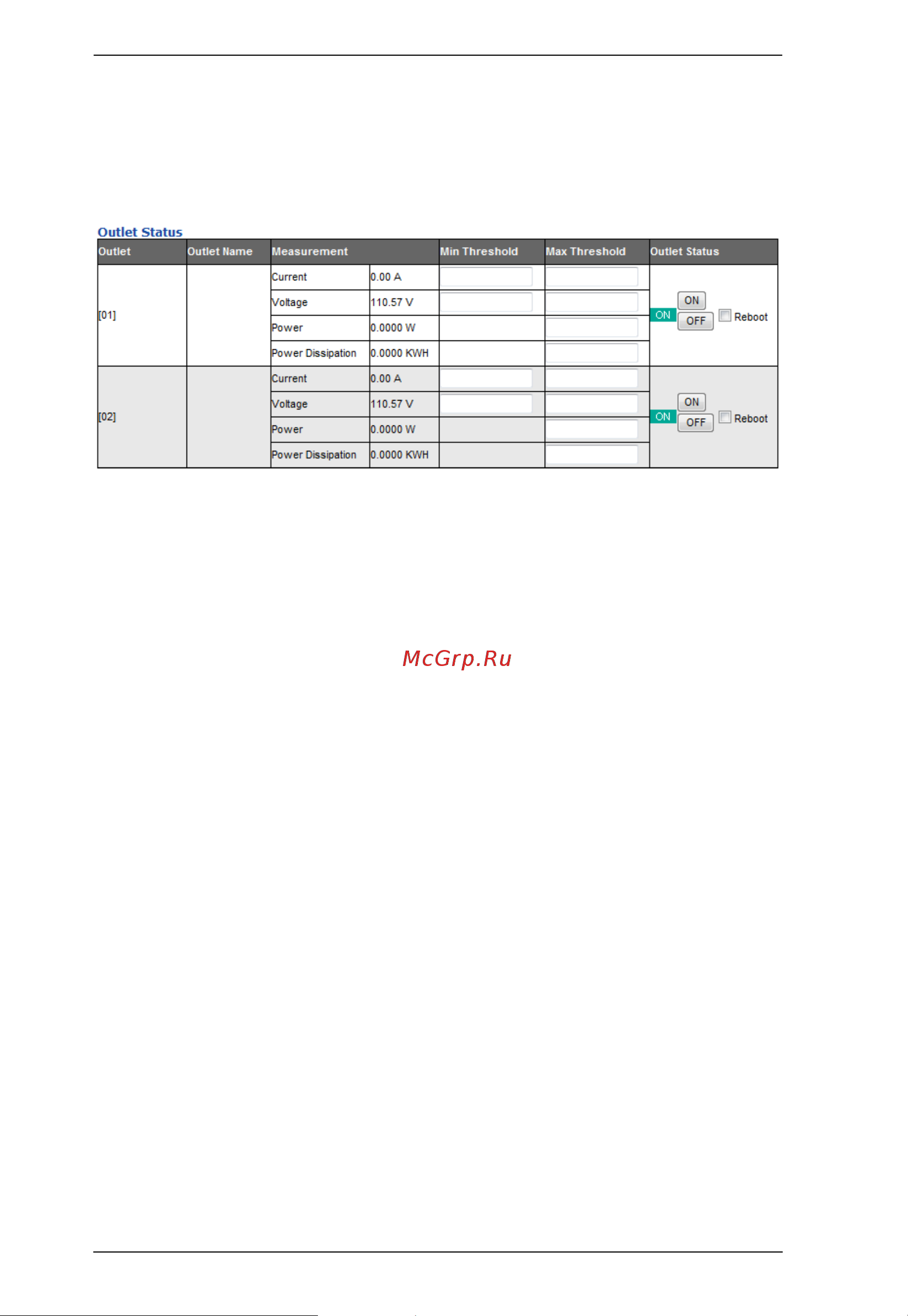

Outlet Status

If your eco PDU model(s) supports outlet level monitoring, the main panel

Outlet Status section allows you to set up a power management configuration

for each outlet at an individual level.

 Outlet Threshold Settings

These fields are used to set the maximum, minimum, and fluctuation

threshold settings for Current, Voltage, Power, and Power Dissipation. If a

range falls below the minimum setting, or exceeds the maximum setting an

alarm is triggered.

 On / Off / Reboot

You can manually turn the outlet On and Off from this page by clicking the

buttons. To Reboot the outlet, enable the Reboot checkbox and click on

Save (located at the bottom of the page).
