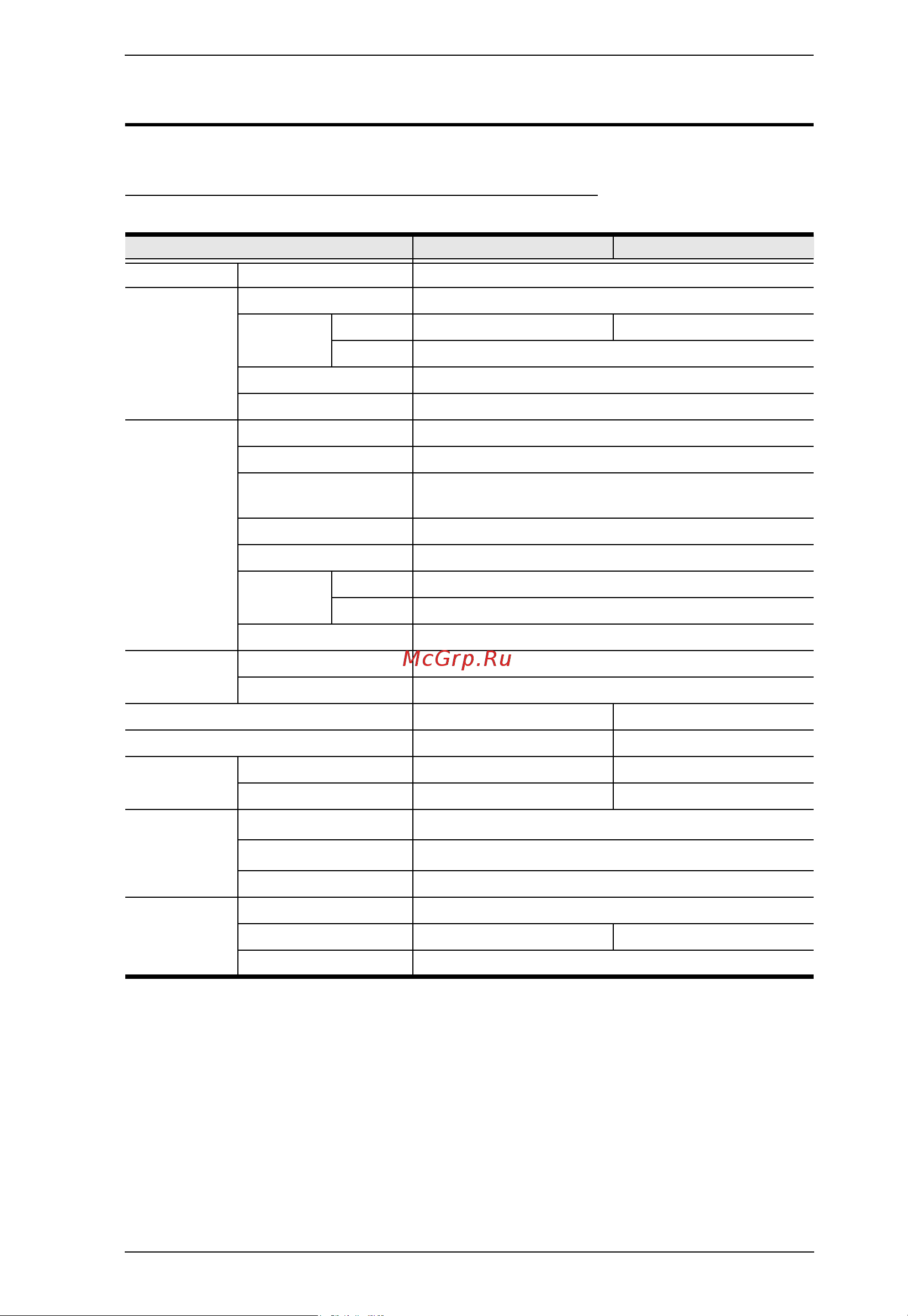

Aten PE6208 [87/94] Specifications
![Aten PE6208 [87/94] Specifications](/views2/1977979/page87/bg57.png)
Appendix
75
Specifications
PE5108A / PE5208A / PE7108A / PE7208A
Function PE5108A / PE7108A PE5208A / PE7208A
Power Outlets Direct 8
Connectors Power Inlet 1 x IEC 320 C20
Power
Outlets
NEMA 8 x NEMA 5-15R 8 x NEMA 5-20R
IEC NA
Sensor 2 x RJ-11
LAN 1 x RJ-45 (F)
LEDs Outlet Status N/A
Selection 1-digit 7-segment (Orange)
PDU Current / Outlet
Current / IP Address
3 (Green)
Current / IP Address 3-digit 7-segment (Orange)
Power 1 (Blue)
LAN 10/100M 1 (Orange / Green)
Link 1 (Green)
Sensor 2 (Green)
Switches Reset 1 x Semi-recessed Pushbutton
Power 1 x Non-fuse Breaker
I/P Rating 100–120V~; 50/60Hz; 12A 100–120V~; 50/60Hz; 16A
Load Capacity 1440W 1920W
O/P Rating Per Port 100–120V~; 50/60Hz; 12A 100–120V~; 50/60Hz; 16A
Total 100–120V~; 50/60Hz; 12A 100–120V~; 50/60Hz; 16A
Environment Operating Temperature
0–50
o
C
Storage Temperature
-20–60
o
C
Humidity 0–80% RH Non-condensing
Physical
Properties
Housing Metal
Weight 2.63 kg / 2.68 kg 2.64 kg / 2.69 kg
Dimensions (L x W x H) 43.24 x 21.93 x 4.40 cm
