Chapter 1. Introduction
15

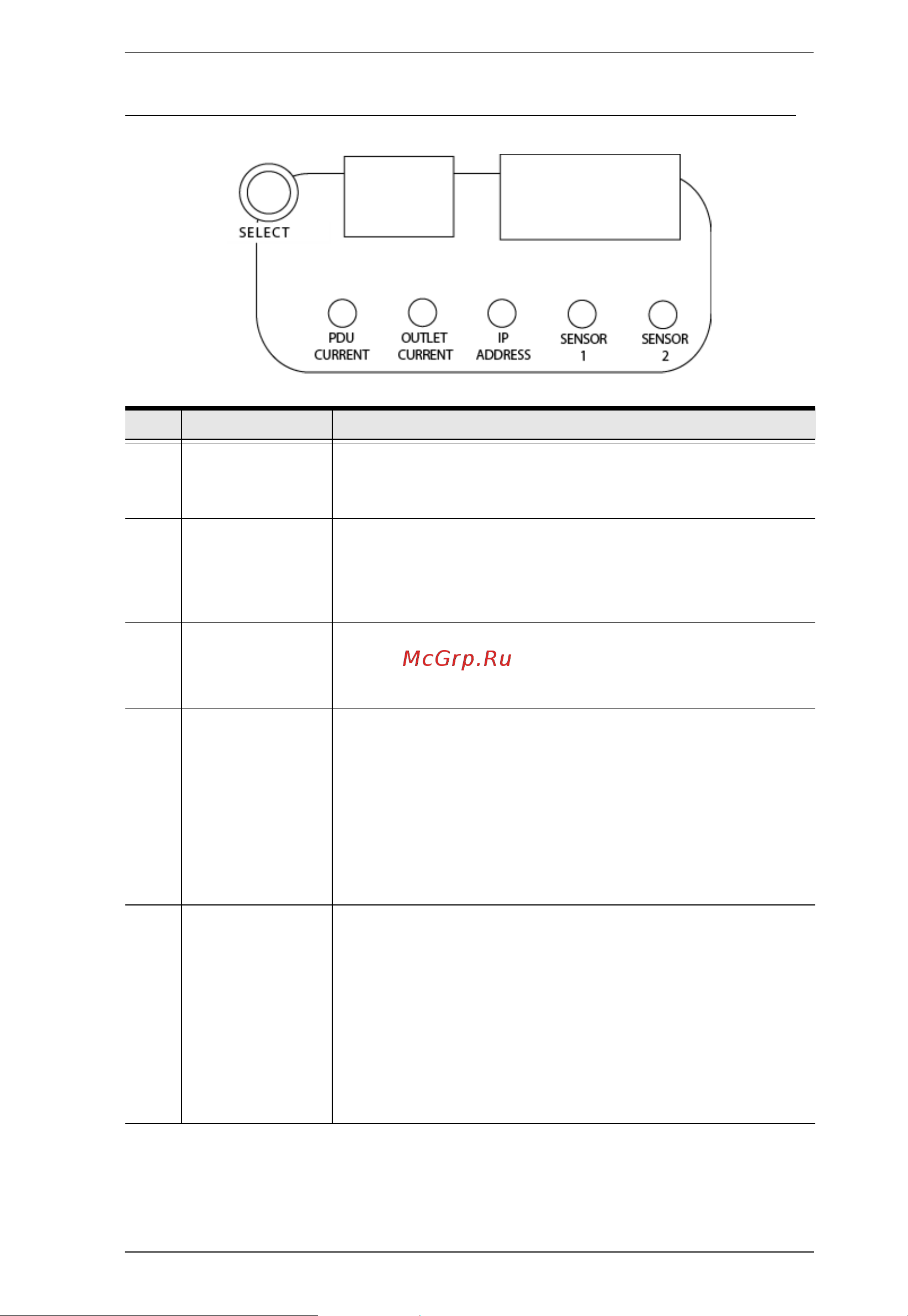

PE6108A / PE6208A / PE8108A / PE8208A Readout Section
No. Item Description
1 circuit breaker
pushbutton
As a safety measure, if there is a current overload in regards
to the device’s power, the circuit breakers will trip. Press the
button to recover normal operation.
2 power sockets 8 x NEMA 5-15R or 8 x NEMA 5-20R
Note: Holes for ATEN Lok-U-Plug cable holders are located
around the sockets. See Securing the Cables, page 23, for
further information.
3 outlet status
LEDs
These LEDs indicate outlet status.
Lights orange for powered on.
Off for powered off.
4 LAN port and
LEDs
The cable that connects the eco PDU to the LAN plugs in
here. The Link and LAN LEDs are built into the LAN port:
Link: Lights GREEN to indicate that a connection via the
eco PDU's RJ-45 Ethernet port has been established.
Flashes to indicate data is being transmitted.
LAN: Lights ORANGE to indicate 10 Mbps data
transmission speed. The LED lights GREEN to indicate 100
Mbps data transmission speed.
5 readout section
The selection (PDU Current / Outlet Current / IP Address)
appears in the first (1-digit) display window.
PDU Current / Outlet Current / IP Address appear in the
second (3-digit) display window
The LEDs above the items indicate which one the readout
relates to.
Press the button next to the first display window to cycle
the selection among the items.
