Aten PE6208 [49/94] Configuration

Chapter 4. Browser Operation

Configuration

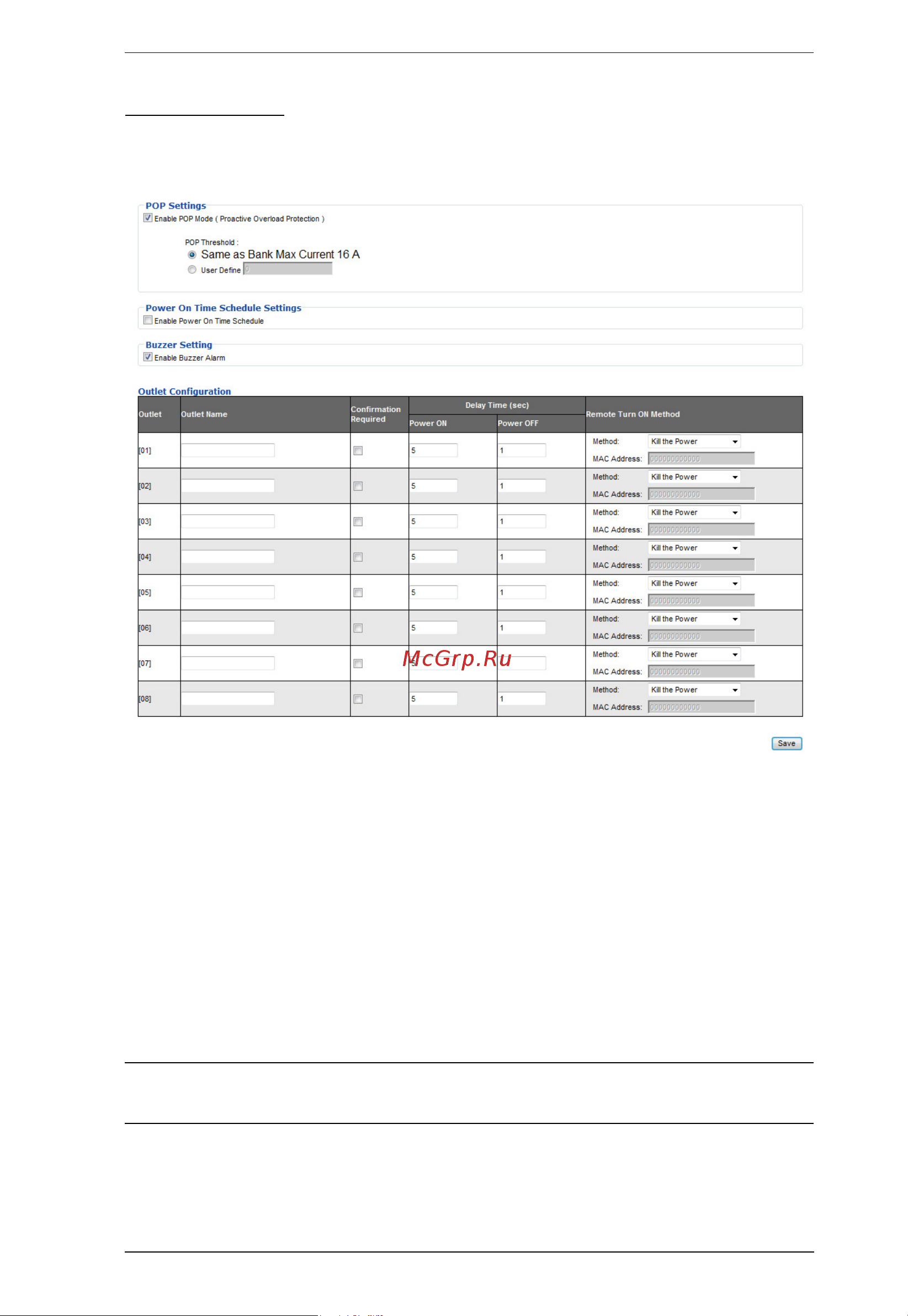

The Configuration page is used to configure the settings of the eco PDU at the

individual power outlet level:

 POP Settings

This section allows you to configure the settings for the Proactive

Overload Protection (POP) feature. Effective on all non-critical outlets,

this added safety feature automatically powers off outlets in the user-

defined sequence when a current overload occurs in protecting the

powered devices.

 Enable POP Mode by clicking the radio button

 Make your selection for the POP Threshold—options are Same as Bank

Maximum Current or User Defined—enter a value in the field.

Note: This feature is available on PE6108, PE6208, PE8108 and PE8208

models only.
