CAMLIVE™ PRO User Manual
8

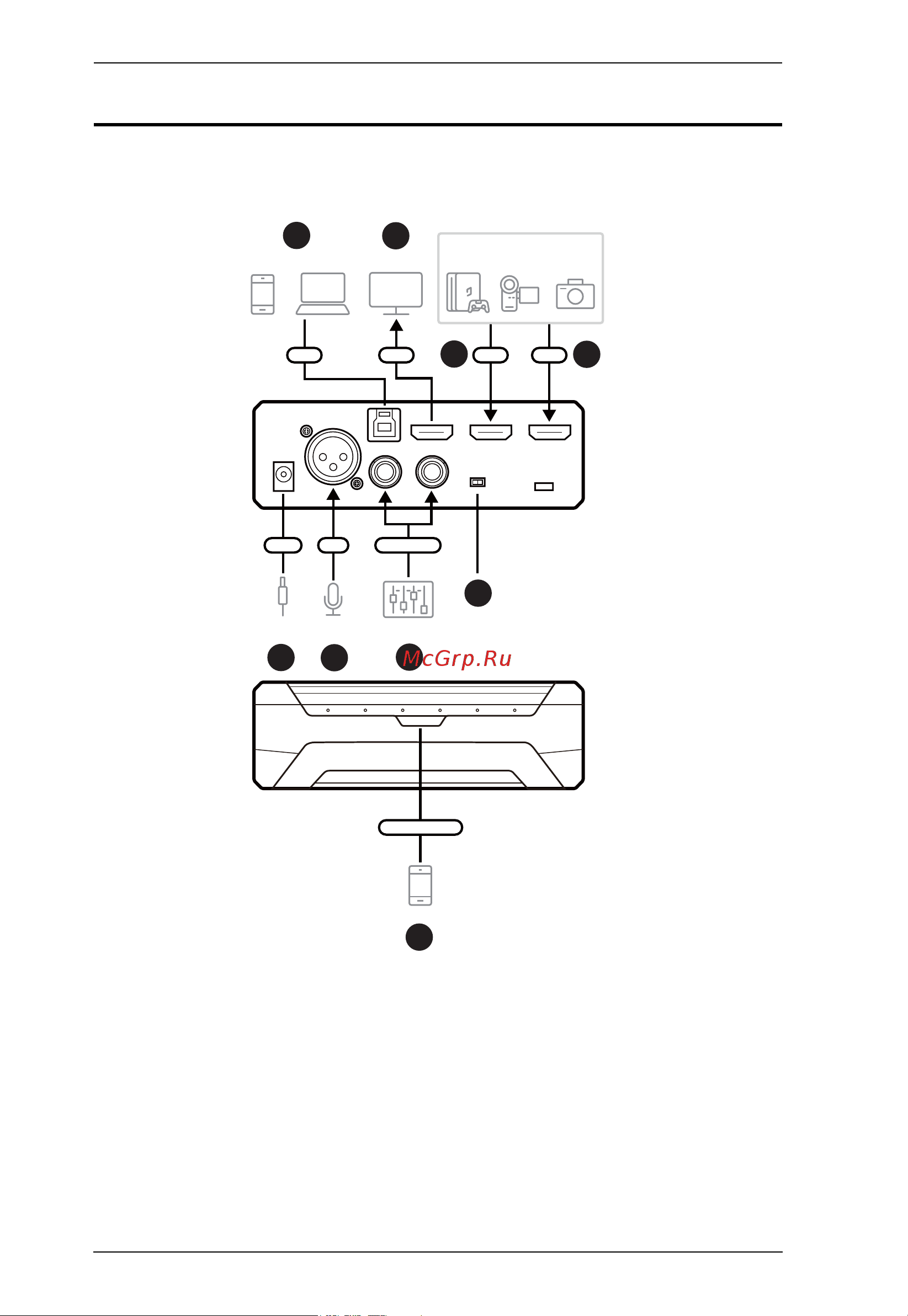

Connecting the CAMLIVE™ PRO Unit
Follow the steps below to connect the CAMLIVE™ PRO.
1. Plug the power adapter cable into the power jack.
2. Connect your first HDMI source device to the HDMI 1 input port.*
3. Connect your second HDMI source device to the HDMI 2 input port.*
4. Connect the HDMI program output port to an HDMI-enabled display using
an HDMI cable (not included) to display your pre-programmed HDMI
content.
5. If your laptop only has a USB Type-A interface, connect the USB Type-B to
USB Type-A cable (included) to your laptop. Or, if your Android mobile
App Installed Mobile Device
UC3022 (Front)
UC3022 (Rear)
MIC Audio Mixer
Laptop
HDMI
USB
RCA Line-in
XLR
Power
OnAir Lite App
HDMIHDMI
Power
Adapter
Mobile Monitor
or
or or
PS4 Camera
Video
Recorder
4
1
2
3
7
8
9
5
6
