CAMLIVE™ PRO User Manual
4
Components

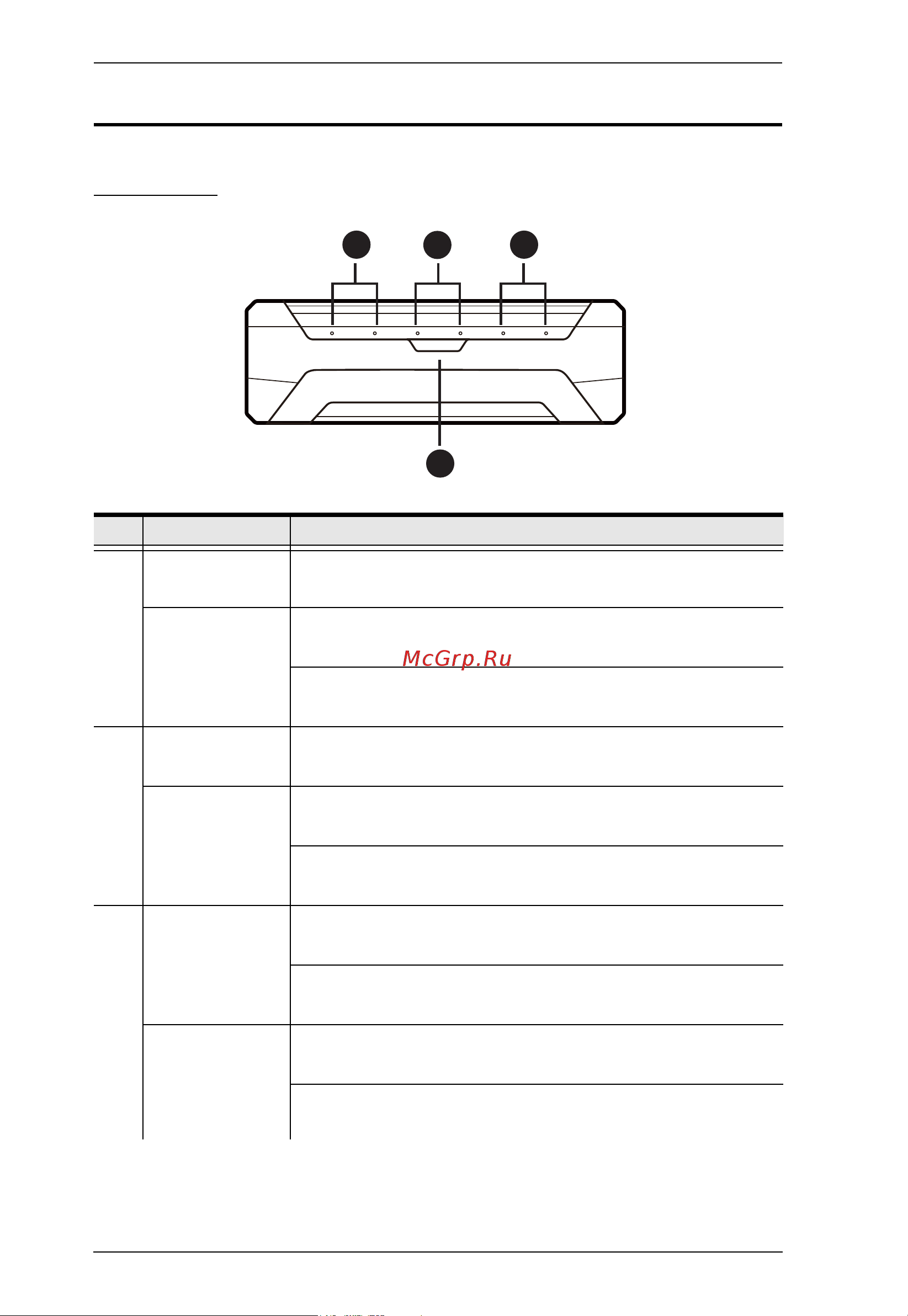

Front View
No. Component Description
1
HDMI 1 video
status LED
The LED lights green to indicate the HDMI 1 video source
connection is in effect.
HDMI 1 audio
status LED
The LED lights green to indicate the HDMI 1 audio source
connection is in effect.
The LED lights orange to indicate the HDMI 1 audio source
connection is muted.
2
HDMI 2 video
status LED
The LED lights green to indicate the HDMI 2 video source
connection is in effect.
HDMI 2 audio
status LED
The LED lights green to indicate the HDMI 2 audio source
connection is in effect.
The LED lights orange to indicate the HDMI 2 audio source
connection is muted.
3
Analog 1 audio
Status LEDs
The LED lights green to indicate the Analog 1 (RCA) audio
source connection is in effect.
The LED lights orange to indicate the Analog 1 (RCA) audio
source connection is muted.
Analog 2 audio
status LEDs
The LED lights green to indicate the Analog 2 (XLR) audio
source connection is in effect.
The LED lights orange to indicate the Analog 2 (XLR) audio
source connection is muted.
4
1
2
3
