CAMLIVE™ PRO User Manual
10
Aten OnAir Lite App Installation
Download and install the ATEN OnAir Lite app from the Play Store to your
Android mobile device. This app is designed for the UC3022 to manage and edit
the program results. The ATEN OnAir Lite app includes the following power
features.
Storyboard-like management
Scenes editor
Audio sensing switch
Chroma keyin management
Audio mixer management
Phone Tray

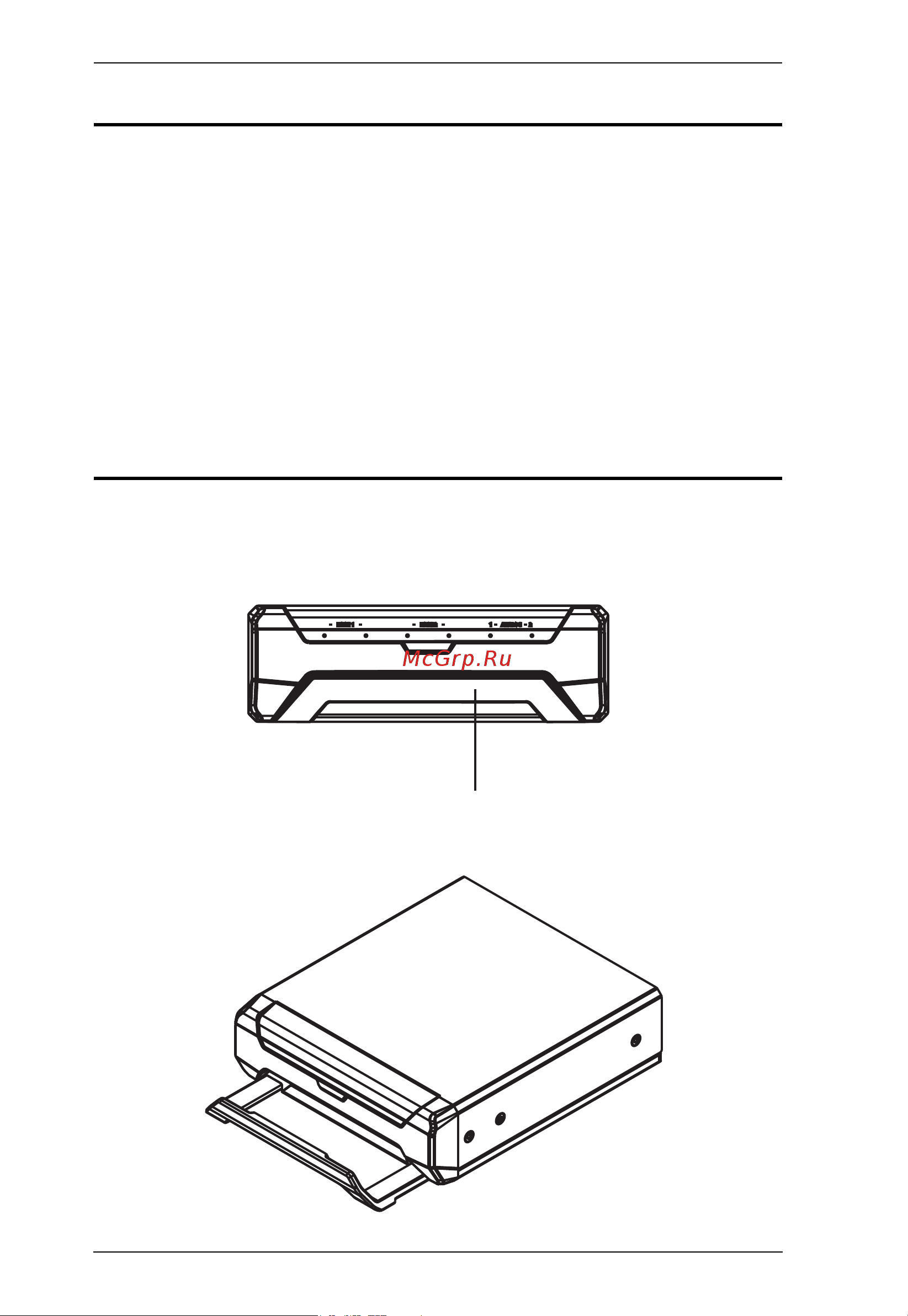

A phone tray is available for the mobile device to sit in. To use the phone tray
for your mobile device, follow the steps below.
1. Simply slide the phone tray out from the CAMLIVE™ PRO.
2. Place your mobile device on it.
Phone Tray
