CAMLIVE™ PRO User Manual
6

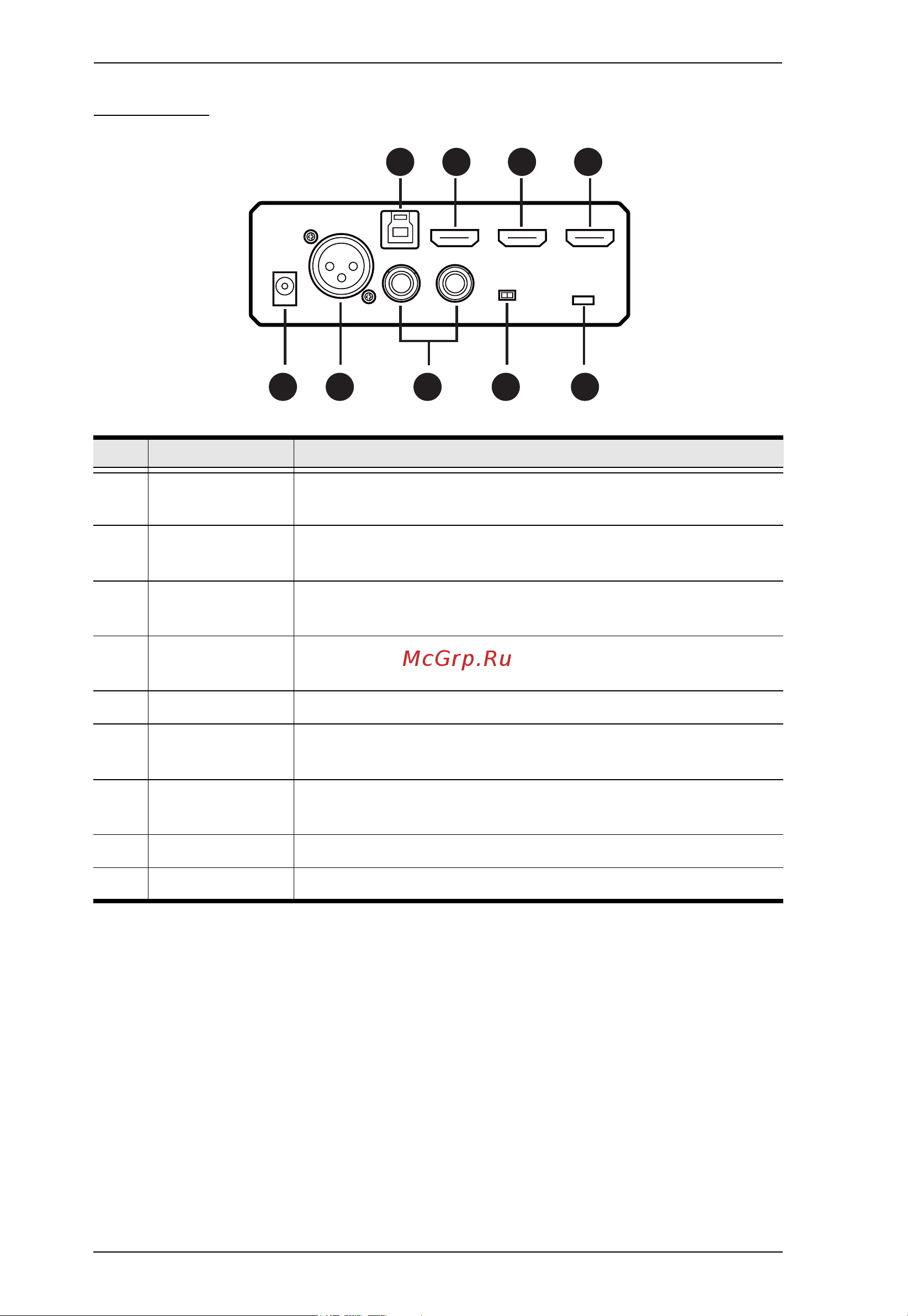

Rear View
No. Component Description
1 USB Type-B
UVC output port
Connects to a host.
2 HDMI program
output port
Connects to an HDMI-enabled display for programmed
(PGM) video output.
3 HDMI 2 input
port
Connects to an HDMI input.
Note: This port supports interlaced HDMI video input.
4 HDMI 1 input
port
Connects to an HDMI input.
5 power jack The power adapter plugs here.
6 Analog 2 input
port
Connects XLR audio source here.
7 Analog 1 input
port (L/R)
Connects RCA audio source here.
8 HDCP switch Switch to display HDCP protected content.
9 Kensington Lock Kensington security slot plugs here.
:
7
4
1
2
3
7
8 9
5
6
