Chapter 11 IPv6 Configuration

11-28

SwitchA

SwitchB

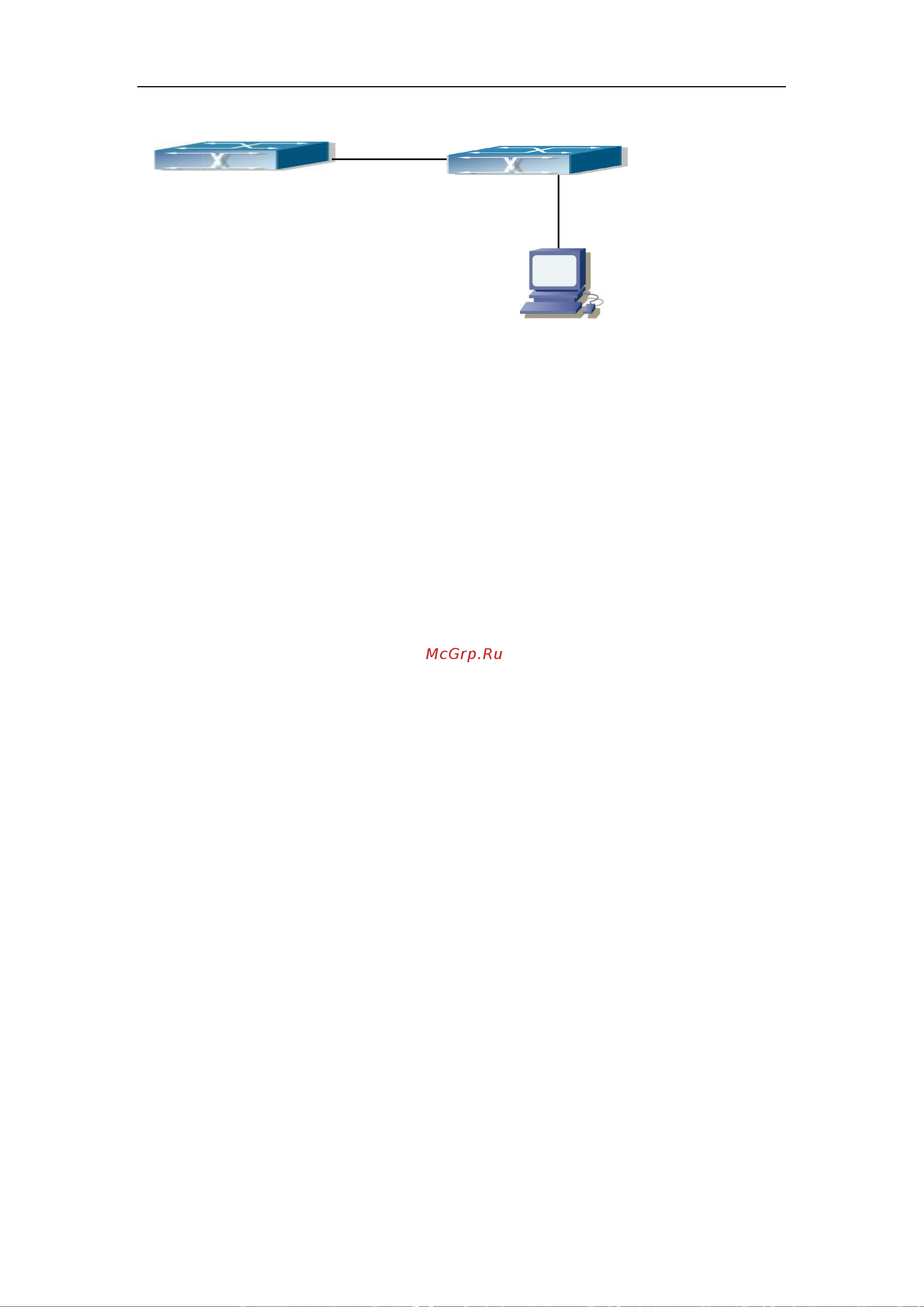

Figure 11-5 Network Topology Diagram

The configuration procedure for SwitchA and SwitchB is as below:

(1) Configure SwitchA:

Switch (config) #ipv6 pim multicast-routing

Switch (config) #ipv6 pim rp-address 3FFE::1

Switch (config) #interface vlan 1

Switch (Config-if-Vlan1) #ipv6 address 3FFE::1/64

Switch (Config-if-Vlan1) #ipv6 pim sparse-mode

(2) Configure SwitchB:

Switch (config) #ipv6 pim multicast-routing

Switch (config) #ipv6 pim rp-address 3FFE::1

Switch (config) #interface vlan1

Switch (Config-if-Vlan1) #ipv6 address 3FFE::2/64

Switch (Config-if-Vlan1) #ipv6 pim sparse-mode

Switch (Config-if-Vlan1) #exit

Switch (config) #interface vlan2

Switch (Config-if-Vlan2) #ipv6 address 3FFA::1/64

Switch (Config-if-Vlan2) #ipv6 pim sparse-mode

Switch (Config-if-Vlan2) #ipv6 mld query-timeout 150

11.5.1.4 MLD Troubleshooting Help

When configuring and using MLD protocol, MLD protocol may fail to work normally

due to physical connections, incorrect configuration and so on. So, users shall note the

following points:

 Assure the physical connection is correct.

 Assure the protocol of interface and link is UP (use show interface

command)

 Assure to start one kind of multicast protocol on the interface

 Assure the time of the timers of each router on the same network

segment is consistent; usually we recommend the default setting.

Vlan 1

Vlan 2
